Quick Details
-
Processing speed:
-
0-4000mm/minute
-
material:
-
Stainless steel tailgate
-
Input Poewr:
-
220AC power supply
-
Output Current:
-
Drive 4.5A (peak 5A)
-
Driven approach:
-
Bipolar constant current PWMdrive output
-
Drive motor:
-
57x78 steper motors, two-phase 4 wire stepper motor
-
water-cooled frequency spindle:
-
1500w/2200w
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Effective Stroke:
-
300x400x(150)mm
-
Repeat positioning accuracy:
-
0.01mm
-
Processing speed:
-
0-4000mm/minute
-
material:
-
Stainless steel tailgate
-
Input Poewr:
-
220AC power supply
-
Output Current:
-
Drive 4.5A (peak 5A)
-
Driven approach:
-
Bipolar constant current PWMdrive output
-
Drive motor:
-
57x78 steper motors, two-phase 4 wire stepper motor
-
water-cooled frequency spindle:
-
1500w/2200w
Product Description

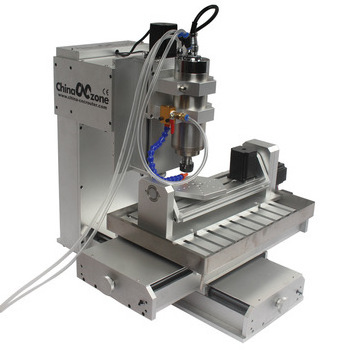

| Model | 5 Axis CNC Machine |
| Product demention | 520(H)X660(L)X580(W) mm |
| Effective work area | 300x400x(150)mm |
| Precision ballscrew | 1605 |
| XYZ rail material | Hard chrome shaft |
| XY rail diameter | 20mm |
| Z rail diameter | 16mm |
| XYZ axis torque | 57*78 250 OZ/IN (2.2N/CM) |
| 4th and 5th | 57*56 |
| 4th and 5th transmission ratio | 1:6 |
| Repeat positioning accuracy | 0.01mm |
| Working precision | 0.02mm |
| Processing speed | 0-4000 mm/Min |
| A-axis B-axis rotation speed | 0-180 rpm/min |
| XY table maximum load | 50kg |
| XY+A+B axis table maximum load | 15kg |
| Tailgate material | Stainless steel |
| Switching Power Supply | Integrated 24V 350W |
| Spindle power | 800 W water-cooled frequency spindle |
| Spindle converter | 1500w/2200w |
| Input Power | 220V / 110V power supply |
| Output Current | Drive 4.5A (peak 5A) |
| Drive motor | 57*78 stepper motors (two-phase 4 wire) |
| Net Weight | 50kg |
| Gross Weight | 90kg |
| Outside packing | 78*66*82 (cm) |
