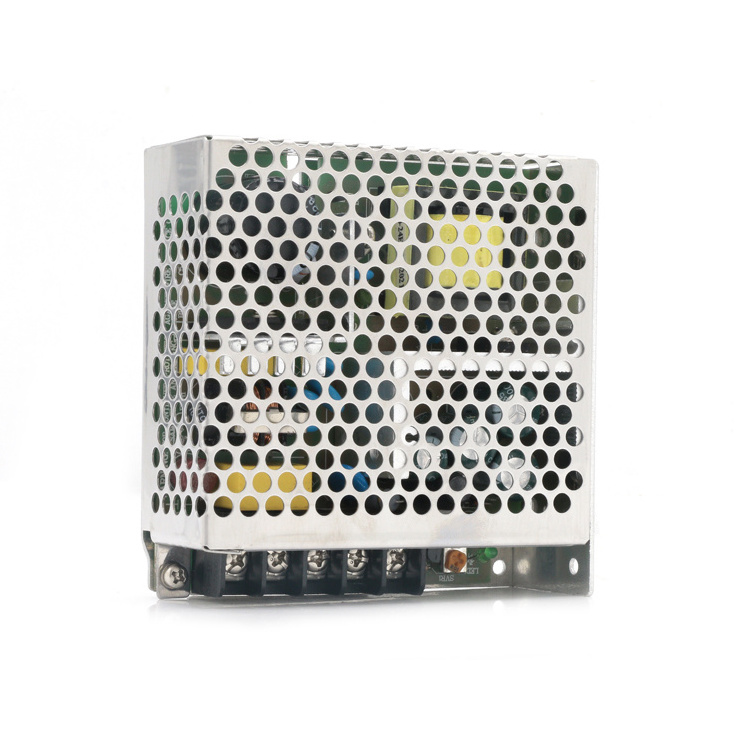

RS-50-12 50w 12v led power supply switching power
RS-50-12 50w 12v led power supply switching power
RS-50-12 50w 12v led power supply switching power
RS-50-12 50w 12v led power supply switching power
RS-50-12 50w 12v led power supply switching power
RS-50-12 50w 12v led power supply switching power

RS-50-12 50w 12v led power supply switching power

FOB Reference Price: Get Latest Price
≥5 Pieces
US $7.5
≥50 Pieces
US $7.2
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
MiWi
Model Number:
RS-50-512
Output Frequency:
47-63Hz
Output Current:
4.2A
AC Inrush Current (max.):
cold start, 40A at 230VAC
Dimension:
99*97*36 mm
Protection:
Over load, Over voltage protection
Certificates:
ISO, CE
Warranty:
One year

Quick Details

Input Voltage:
220V, 220V
Output Voltage:
12V
Place of Origin:
Zhejiang, China
Brand Name:
MiWi
Model Number:
RS-50-512
Output Frequency:
47-63Hz
Output Current:
4.2A
AC Inrush Current (max.):
cold start, 40A at 230VAC
Dimension:
99*97*36 mm
Protection:
Over load, Over voltage protection
Certificates:
ISO, CE
Warranty:
One year
Featured Peoducts
MODEL RS-50-3.3 RS-50-5 RS-50-12 RS-50-15 RS-50-24 RS-50-48
OUTPUT DC VOLTAGE 3.3V 5V 12V 15V 24V 48V
RATED CURRENT 10A 10A 4.2A 3.4A 2.2A 1.1A
CURRENT RANGE 0 ~ 10A 0 ~ 10A 0 ~ 4.2A 0 ~ 3.4A 0 ~ 2.2A 0 ~ 1.1A
RATED POWER 33W 50W 50.4W 51W 52.8W 52.8W
RIPPLE & NOISE (max.) Note.2 80mVp-p 80mVp-p 120mVp-p 120mVp-p 120mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 3V ~ 3.6V 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 22 ~ 27.2V 42 ~ 54V
VOLTAGE TOLERANCE Note.3 3.00% 2.00% 1.00% 1.00% 1.00% 1.00%
LINE REGULATION 0.50% 0.50% 0.50% 0.50% 0.50% 0.50%
LOAD REGULATION 2.00% 1.00% 0.50% 0.50% 0.50% 0.50%
SETUP, RISE TIME Note.5 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UPTIME (Typ.) 60ms/230VAC   14ms/115VAC at full load
VOLTAGE RANGE 88 ~ 264VAC  125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
INPUT FREQUENCY RANGE 47 ~63Hz
EFFICIENCY (Typ.) 78.00% 83.00% 84.50% 86.00% 88.00% 89.00%
AC CURRENT (Typ.) 1.3A/115VAC  0.8A/230VAC
INRUSH CURRENT (Typ.) COLD START 33A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8 ~ 4.45V 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 28.4 ~ 32.4V 55.2 ~ 64.8V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25~70℃ (Refer to: Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85C, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/C (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
SAFETY &EMC      (Note 4) WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH
EMC EMISSION Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
OTHERS MTBF 265Khrs min. MIL-HDBK-217F (25 )
DIMENSION 99*97*36mm (L*W*H)
