Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000*3000*200mm
-
Power (kW):
-
9
-
Weight (KG):
-
1800
-
Warranty:
-
3 years
-

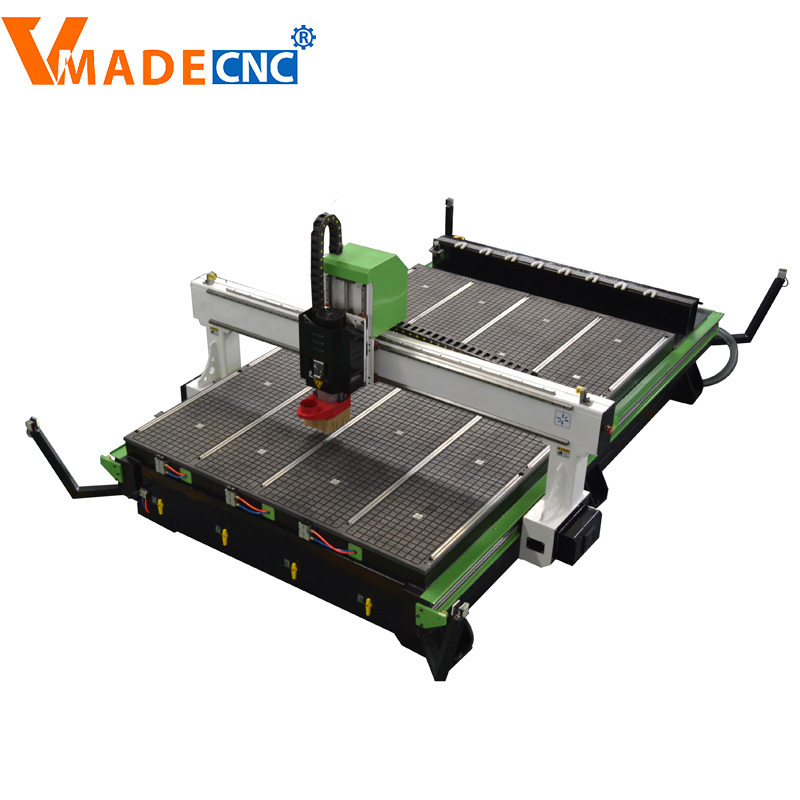

Product name:
-
Tool change cnc router machine
-
Working Area:
-
1530 1325 2030 etc
-
Transmission:
-
Taiwan TBI Ball Screw/ Hiwin guide
-
Motor:
-
Servo Motor
-
Control system:
-
LNC ,NC ,SYNTEC control system
-
Working Mold:
-
Gantry moving
-
Inverter:
-
Fuling inverter
-
Transmission system:
-
Leadshine Stepper motor&Driver in X,Y,Z
-
Guide Rail:
-
HIWIN Square Guide Rail
-
Working table:
-
PVC or Vacuum
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
1300*2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000*3000*200mm
-
Power (kW):
-
9
-
Weight (KG):
-
1800
-
Warranty:
-
3 years
-
Product name:
-
Tool change cnc router machine
-
Working Area:
-
1530 1325 2030 etc
-
Transmission:
-
Taiwan TBI Ball Screw/ Hiwin guide
-
Motor:
-
Servo Motor
-
Control system:
-
LNC ,NC ,SYNTEC control system
-
Working Mold:
-
Gantry moving
-
Inverter:
-
Fuling inverter
-
Transmission system:
-
Leadshine Stepper motor&Driver in X,Y,Z
-
Guide Rail:
-
HIWIN Square Guide Rail
-
Working table:
-
PVC or Vacuum
-
Certification:
-
CE
Product Description
Main Features
|
Machine Series No.
|
VRW1325
VRW1825 VRW1530 VRW 2030
|
|
Working Area
|
1300*2500*2000mm 1500*3000*200mm etc according to your need
|
|
Spindle Power
|
Air Cooling
WHD
9KW tool changer spindle
Optional
|
|
Spindle
|
Air Cooled Spindle
|
|
Inverter
|
BEST /Fuling/DELTA inverter
|
|
Guide Rail
|
HIWIN Square Guide Rail
|
|
Control System
|
LNC , NC -studio NK 260/280 Synetc6MA/6MB Control System
Optional
|
|
Transmission System
|
Servo Motor&Driver Standard
|
|
Working Table
|

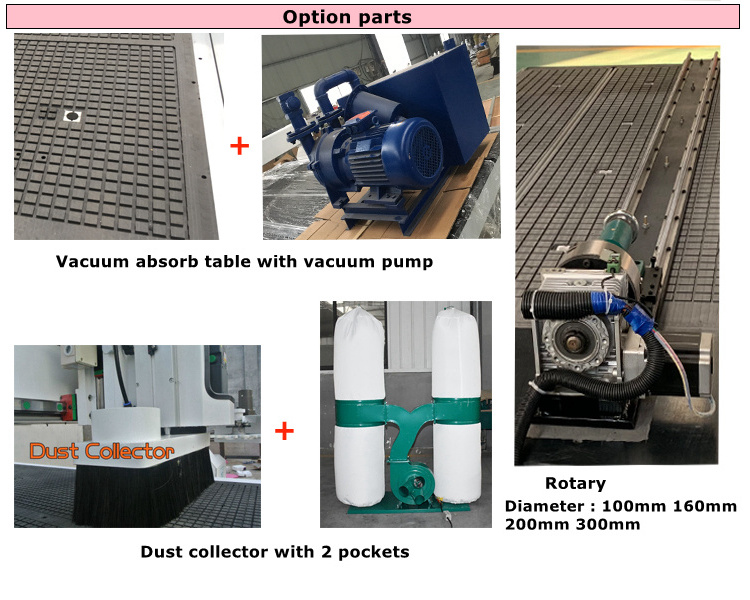

Vacuum Table+ vacuum pump
|
|
Dust collector
|
3kw Dust collector+pump
|
|
Motion Positioning Accuracy
|
±0.025mm
|
|
Repositioning Accuracy
|
≤0.025mm
|
|
Max. traveling Speed
|
22m/Min
|
|
Max. Working Speed
|
15m/Min
|
|
Spindle Speed
|
0-24000RMP
|
|
Power Supply
|
AC220V or 380V/50-60HZ
|
|
Command
|
G Code
|
|
Compatible Software
|
ARTCAM, UCANCAM ,Type3 , CAD or CAM Softwares
|
|
Tool sensor
|
Yes
|
|
Packing Detail
|
Plywood Case (veneer wood case for export)
|
Application of wood cnc router:

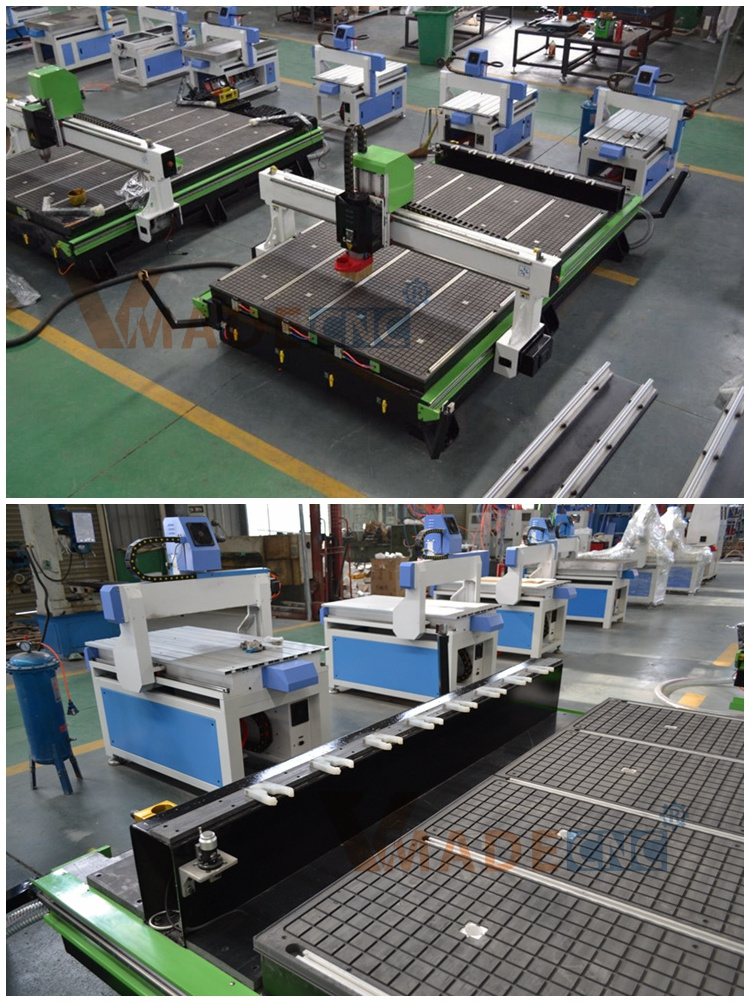

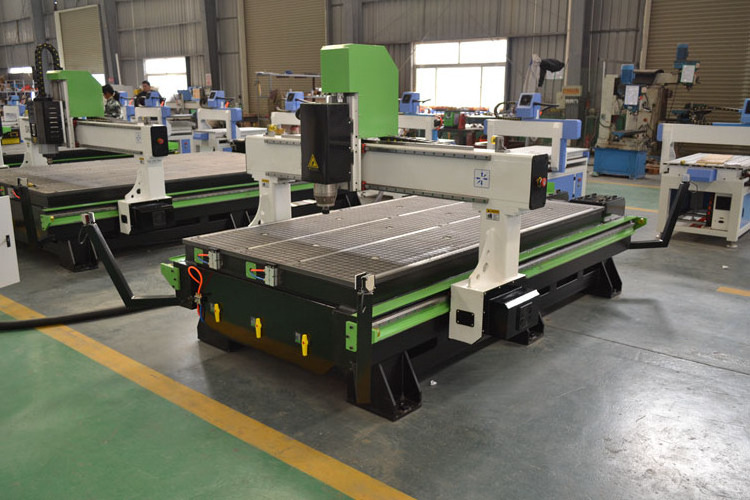

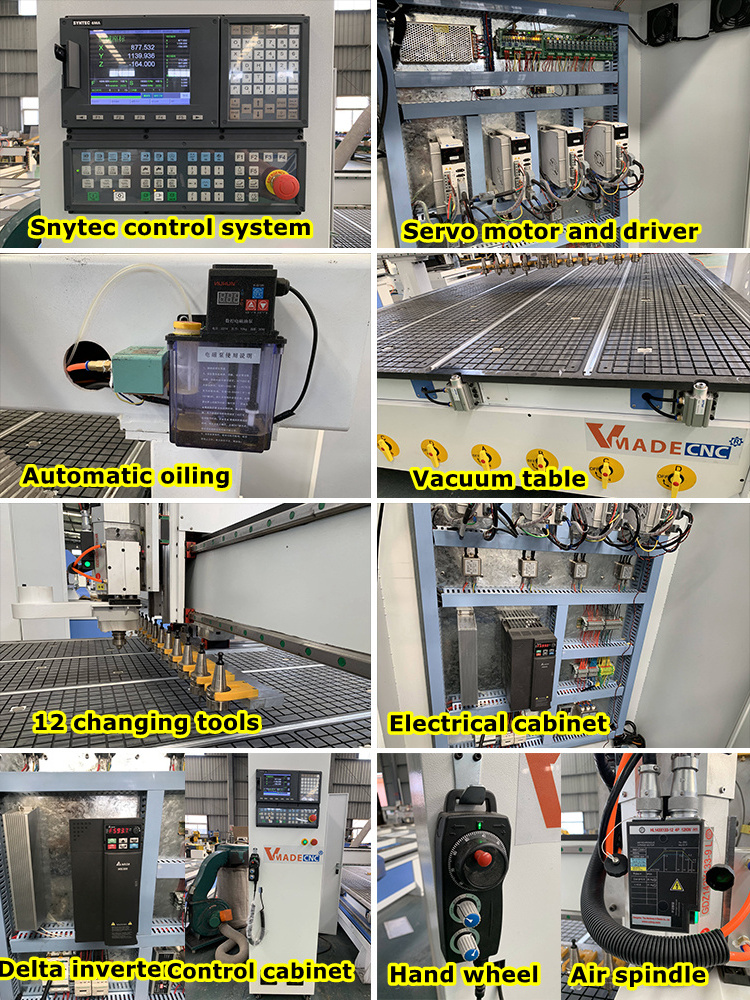

Detailed Images
Sample Pictures
Certifications
Packing & Delivery
