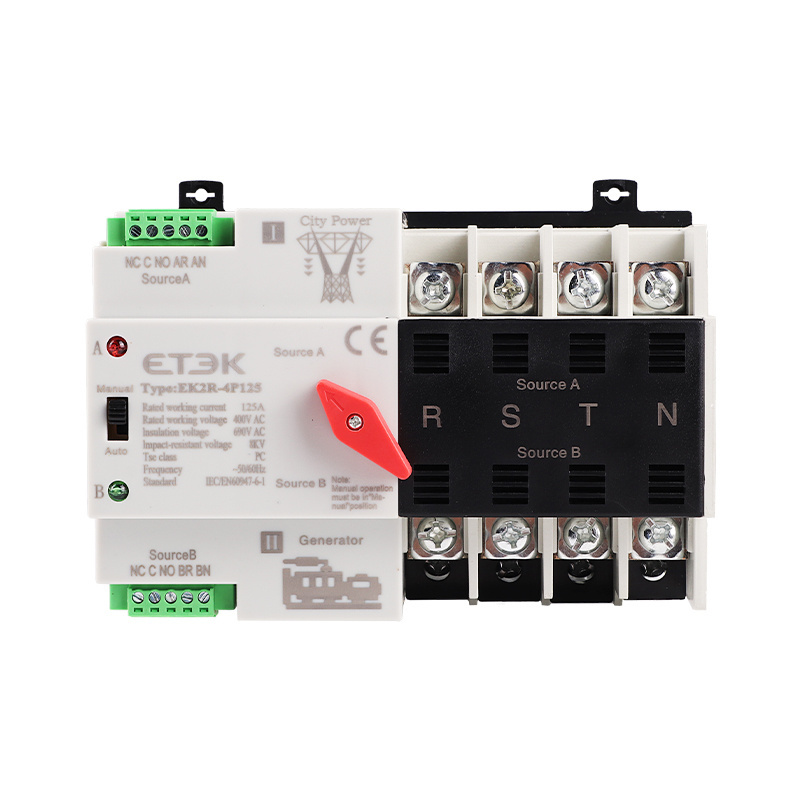

The dual power automatic transfer switch can auto-matically connect the standby power supply to the circuit when the main power
supply fails, so as to ensure the continuous and stable operation of the power system and reduce the downtime and loss.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ETEK
-
Model Number:
-
EK2R-4P 415V
-
Max. Current:
-
100A, 63A, 125A
-
IP level:
-
IP20
-
Product name:
-
Automatic Transfer Switch
-
Rated voltage:
-
415V
-
Rated current:
-
63A100A/125A
-
Rated frequency:
-
50/60HZ
-
Pole:
-
4P
-
Type:
-
AC
-
Certification:
-
IEC/EN60947-3/IEC60947-6-1
-
Application:
-
Industrial
-
Color:
-
White + Green
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
415V
-
Place of Origin:
-
China
-
Brand Name:
-
ETEK
-
Model Number:
-
EK2R-4P 415V
-
Max. Current:
-
100A, 63A, 125A
-
IP level:
-
IP20
-
Product name:
-
Automatic Transfer Switch
-
Rated voltage:
-
415V
-
Rated current:
-
63A100A/125A
-
Rated frequency:
-
50/60HZ
-
Pole:
-
4P
-
Type:
-
AC
-
Certification:
-
IEC/EN60947-3/IEC60947-6-1
-
Application:
-
Industrial
-
Color:
-
White + Green
Usage Details
|
Name
|
Automatic Transfer Switch
|
|
Standard
|
IEC/EN60947-3/IEC60947-6-1
|
|
4No.of poles
|
2P
|
|
Rated currents In
|
40A/63A/100A/125A
|
|
Rated currents In
|
415V
|
|
Electrical life
|
2000times
|
|
Mechanical life
|
2000times
|
|
Protection degree
|
IP20
|
|
Ambient temperature
|
-5℃ to +40℃ averager temperature not more than 35℃ in 24 hour
|
ATS
