Quick Details
-
Brand Name:
-
ZOZHI
-
Model Number:
-

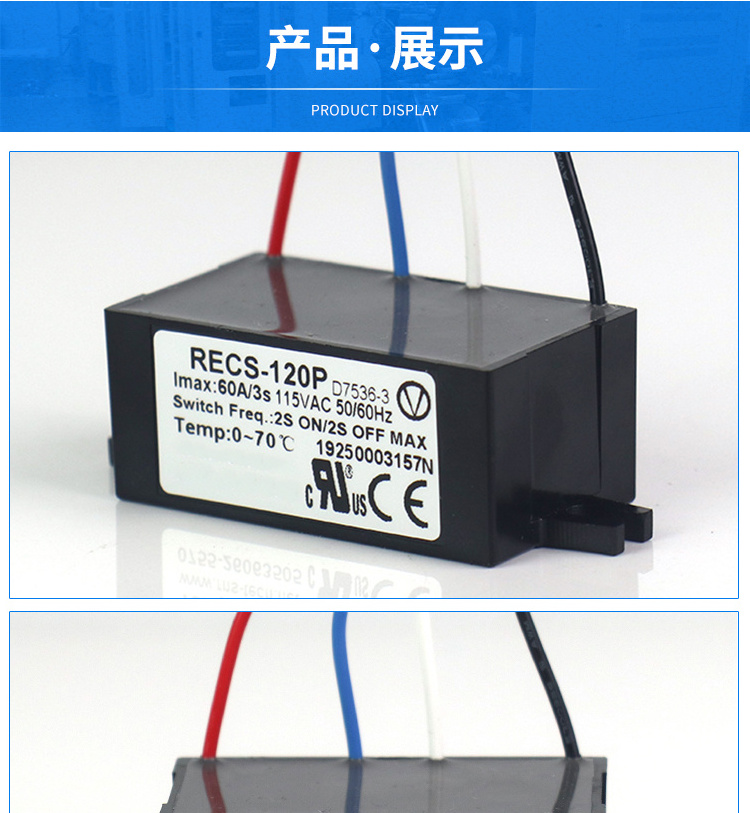

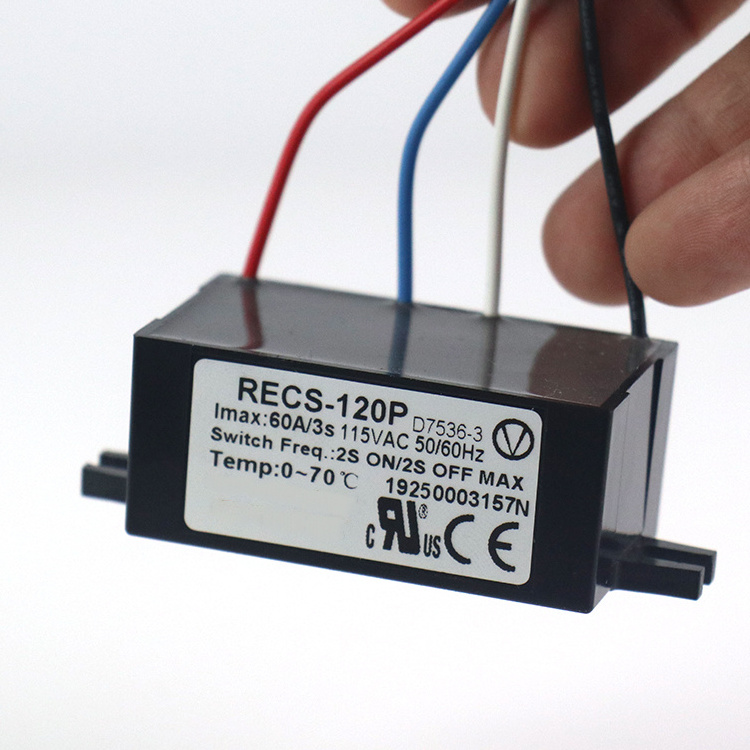

RECS-120P
-
Max. Current:
-
60A/3S
-
Place of Origin::
-
Fujian, China
-
Brand Name::
-
ZOZHI
-
Model Number::
-
RECS-120P
-
Max. Current::
-
60A/3S
-
Frequency:
-
50Hz-60Hz
-
Temperature::
-
0-70℃
-
Switch Freq::
-
2S ON/2S OFF
-
Voltage:
-
115V
-
Certification:
-
CE KC CB
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
115V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZOZHI
-
Model Number:
-
RECS-120P
-
Max. Current:
-
60A/3S
-
Place of Origin::
-
Fujian, China
-
Brand Name::
-
ZOZHI
-
Model Number::
-
RECS-120P
-
Max. Current::
-
60A/3S
-
Frequency:
-
50Hz-60Hz
-
Temperature::
-
0-70℃
-
Switch Freq::
-
2S ON/2S OFF
-
Voltage:
-
115V
-
Certification:
-
CE KC CB
PURCHASE IN BULK, PLEASE CONTACT ME TO QUOTE

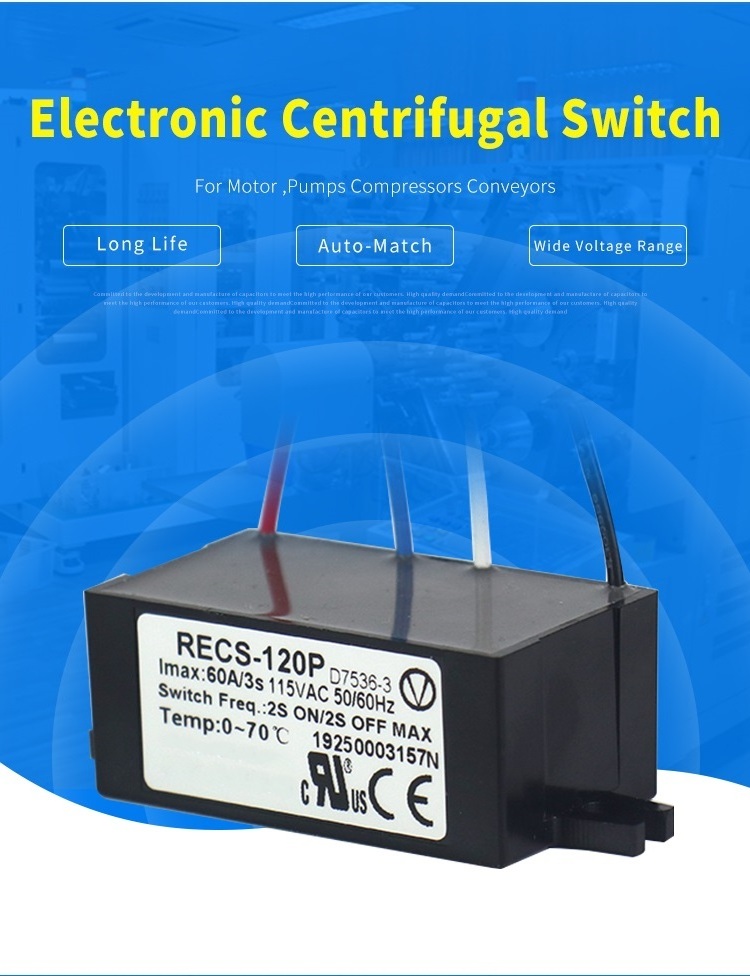

In the last several decades the
single-phase AC motors
have utilized mechanical centrifugal switches to switch from start windings to main windings which have problems like tolerance build-up, mechanical fatigue, vibration, electric spark, etc. Under normal environment motor failures often come from the degradation of the mechanical switches. Electronic Centrifugal Switch (EMS) is a reliable solid-state switch that would duplicate the functions of the conventional centrifugal switch with additional benefits of the electronic device. Speed voltage /current and phase are constantly monitored by the ECS, and the internal ASIC will control the switch On or Off. At the cut-Off point, the motor speed normally accelerates to 60~80% of the synchronous speed (see Figure 1 torque-speed curve). When the motor encounters overload conditions or the motor speed decreases to approximately 20~40% of the synchronous speed, ECS reconnects the start CAP.
Features
Features
Small Package Long Life（1M cycle）
General Switch，Auto-Match different Motor
Wide Voltage Range 115V(90V-137V) 230V(198V-264V)
50Hz/60Hz applicable
Neither switching noise nor trembling of contacts
High compatibility with general-purpose motors as well as application-specific motors
Easy installation and maintenance, mounted on inside/outside standard motor frames
Sealed with epoxy resin or silicon rub, insensitive to dirt, dust, moisture, and vibration
Discharges starting capacitors
ROHS/CE/UL

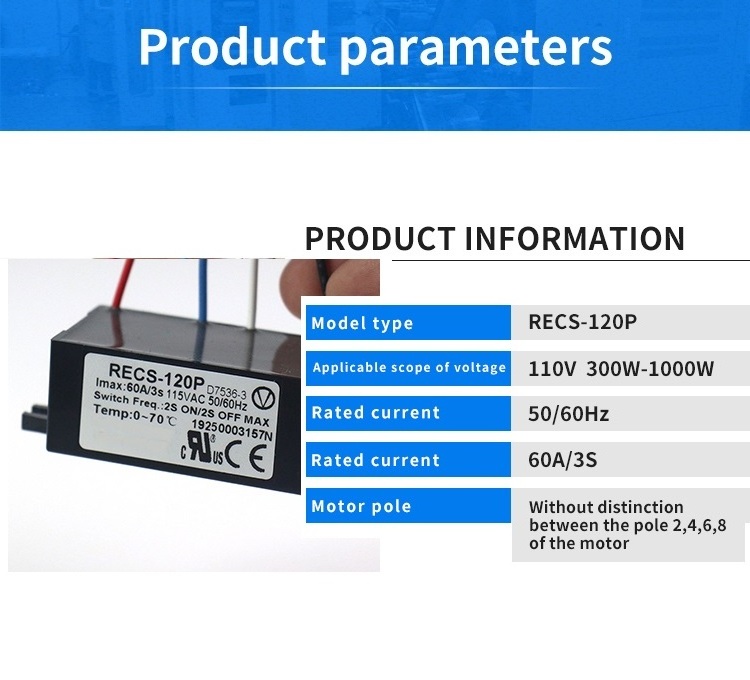

Technology Data
|
P/N
|
Voltage(V)
|
Max Start Current (3s TC=25) (A)
|
Package
|
|
RECS-105P
|
115
|
30
|
Plastic Case 72L*31W*23H
|
|
115
|
60
|
Plastic Case 72L*31W*23H
|
|
|
RECS-120S
|
115
|
60
|
Plastic Case 52L*50W*24H
|
|
RECS-140P
|
115
|
120
|
Plastic Case 72L*31W*23H
|
|
RECS-160C
|
115
|
180
|
CAP Case 46Dia*86long
|
|
230
|
30
|
Plastic Case 72L*31W*23H
|
|
|
230
|
60
|
Plastic Case 72L*31W*23H
|
|
|
230
|
120
|
Plastic Case 72L*31W*23H
|
|
|
RECS-260C
|
230
|
180
|
CAP Case 46Dia*86long
|
