Quick Details
-
Brand Name:
-
OncQue
-
Model Number:
-
RBS100610T
-
Max. Current:
-
10mA
-
Certificate:
-
ROHS
-
Function:
-
ball tilt switch
-

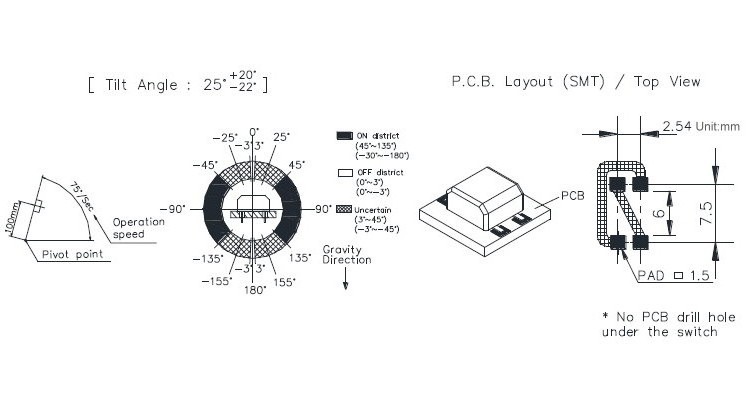

Tilt Angle:
-
25 degree tilt detect
-
Usage:
-
detecting for 4 directions
-
Type:
-
SMD
-
Switch State:
-
Normal Open
-
Specification:
-
Horizontal PCB
-
Descripition:
-
Ball -Contact
-
quality:
-
MADE IN TAIWAN
-
Certification:
-
RoHS,REACH,Patent
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
OncQue
-
Model Number:
-
RBS100610T
-
Max. Current:
-
10mA
-
Certificate:
-
ROHS
-
Function:
-
ball tilt switch
-
Tilt Angle:
-
25 degree tilt detect
-
Usage:
-
detecting for 4 directions
-
Type:
-
SMD
-
Switch State:
-
Normal Open
-
Specification:
-
Horizontal PCB
-
Descripition:
-
Ball -Contact
-
quality:
-
MADE IN TAIWAN
-
Certification:
-
RoHS,REACH,Patent
Product Description
Function
Specification
Feature
- Small size & compact space.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Terminals and balls are gold plated to enhance the life.
- All plastic material subject to industrial purpose meets high temperature and fireproof function.
- Simple switch signal, easy for circuit design.
- Comply with RoHS, complete replacement of mercury switch and meet environmental protection.
- More economic than IC design.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Terminals and balls are gold plated to enhance the life.
- All plastic material subject to industrial purpose meets high temperature and fireproof function.
- Simple switch signal, easy for circuit design.
- Comply with RoHS, complete replacement of mercury switch and meet environmental protection.
- More economic than IC design.
Current / Voltage Suggested
|
Input Current (mA)
|
Operating Voltage (V)
|
Condition
|
|
1.0
|
5 - 12
|
--
|
|
Contact Rating
|
10 mA,5VDC
|
|
Contact Resistance
|
50 Ω max.
|
|
Insulation Resistance
|
50 MΩ min. At 100 VDC
|
|
Dielectric Strength
|
50 VDC min. for 1 minute
|
|
Capacitance
|
5pF max
|
|
Conductive Rate
|
85% min
|
|
Operating Temperature
|
-25°C to 85°C
|
|
Storage Temperature
|
-40°C to 85°C
|
|
Humidity
|
40°C / 95% RH
|
|
Mechanical Life
|
2 Hz horizontal
1,000,000 times |
|
Electrical Life
|
100,000 times
|

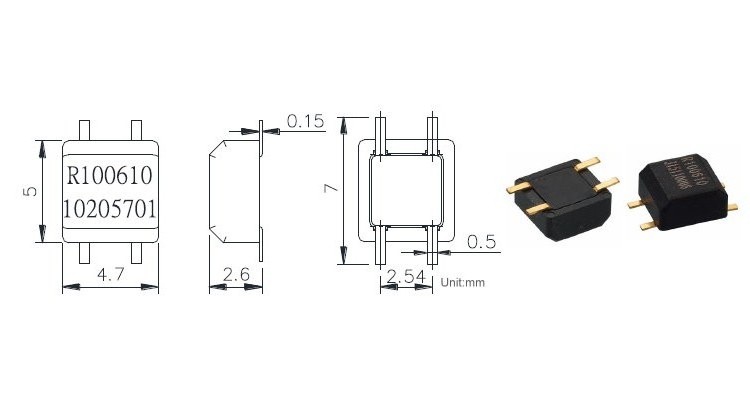

Dimension & Packing

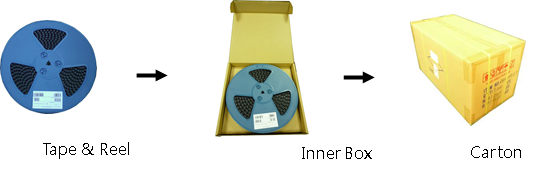

Packing of RBS100610T
|
Package
|
Quantity
|
Total Q'ty
|
Dimension(mm)
|
|
Tape & Reel
|
2,500 pcs
|
2,500 pcs
|
φ330*12.5H
|
|
Inner Box
|
2 Reels
|
5,000 pcs
|
355L*340W*68H
|
|
Carton
|
4 Boxes
|
20,000 pcs
|
373L*358W*309H
|
Application
Patent
Taiwan
- Taiwan Patent No. I 239025
- Taiwan Patent No. I 261280
- Taiwan Patent No. M 455971
- Taiwan Patent No. I 505313
U.S.A
- U.S.A. Patent No. US 7,045,724 B1
- U.S.A. Patent No. US 7,473,857 B2
- U.S.A. Patent No. US 8,969,747 B2
China
- China Patent No. ZL 200410091589.7
- China Patent No. ZL 200610078234.3
- China Patent No. ZL 201220661492.5
- China Patent No. ZL 201210510604.1
