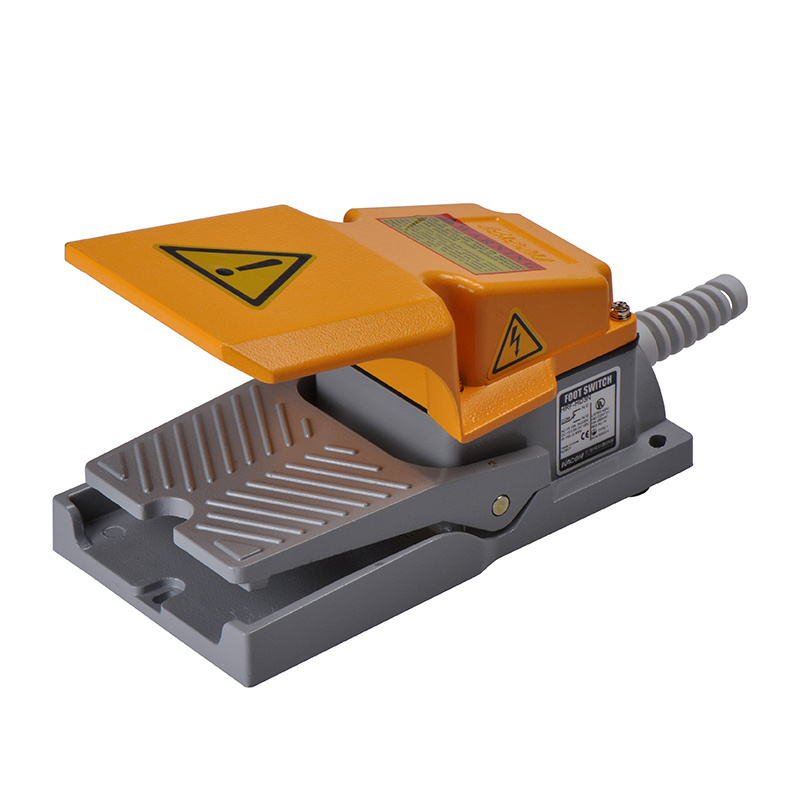

Quick Details
-
Brand Name:
-
Kacon
-
Model Number:
-
HRF-HD3N
-
Max. Current:
-
15A
-
Color:
-
Yellow
-
Material:
-
Aluminum die-casting
-
Built-in Switch:
-
Z15G10B Micro Switch
-
Rated Current:
-
15A 250VAC
-
Contact Form:
-
1C
-
Certification:
-
CE, CCC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kacon
-
Model Number:
-
HRF-HD3N
-
Max. Current:
-
15A
-
Color:
-
Yellow
-
Material:
-
Aluminum die-casting
-
Built-in Switch:
-
Z15G10B Micro Switch
-
Rated Current:
-
15A 250VAC
-
Contact Form:
-
1C
-
Certification:
-
CE, CCC
Specification
| Part Number | HRF-HD3N |
| Contact Form | 1C(1a+1b) |
| Rated Current | 15A 250VAC |
| Built-in Switch | Z15G10B (CE certified) |
| Material | Aluminum die-casting |
| Cable outlet | 0.75mm² × 3 Wire × 2m |
| Certification | CE, UL, CCC |
| Contact Resistance | <50mΩ |
| Insulation Resistance | above 100mΩ at 500VDC |
| Withstand Voltage | ≥2000VAC(one minute) |
| Mechanical Life | above 1,000,000 times |
| Electrical Life | above 500,000 times |
| Operating Temperature | -25℃ ~ +70℃ |
| Operating Humidity | 45%≤85%RH |
| Weight(kg) | 1.214 |
Structure
Dimension
Contact Form
Part Number Description
| HRF-HD, MD Series Part Number Description | |||
| HRF- 1, 2, 3, 4 | |||
| 1, Type | M : Medium Duty Type | H : Heavy Duty Type | |
| 2, Material | No mark : Plastic | D : Die-Casting | |
|
3, Safety Cover
(H type only) |
N : top | NX : top + side | NS : top + side + front |
| LX : top + side + safety kick lever | |||
| 4, Operator Type | No mark : Momentary | 3 : Maintained | |
