Quick Details
-
Dimension(L*W*H):
-
4000*3000*3500
-
Year:
-
2024
-
Power (kW):
-
15 kW
-
Weight (KG):
-
30000 KG
-
Number of working layers:
-
2
-
Maximum working fluid pressure:
-
15.7 Mpa
-
Number of hot plates:
-
3
-
Total pressure:
-
470 Ton
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SFC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4000*3000*3500
-
Year:
-
2024
-
Power (kW):
-
15 kW
-
Weight (KG):
-
30000 KG
-
Number of working layers:
-
2
-
Maximum working fluid pressure:
-
15.7 Mpa
-
Number of hot plates:
-
3
-
Total pressure:
-
470 Ton
Products Description
Equipment introduction

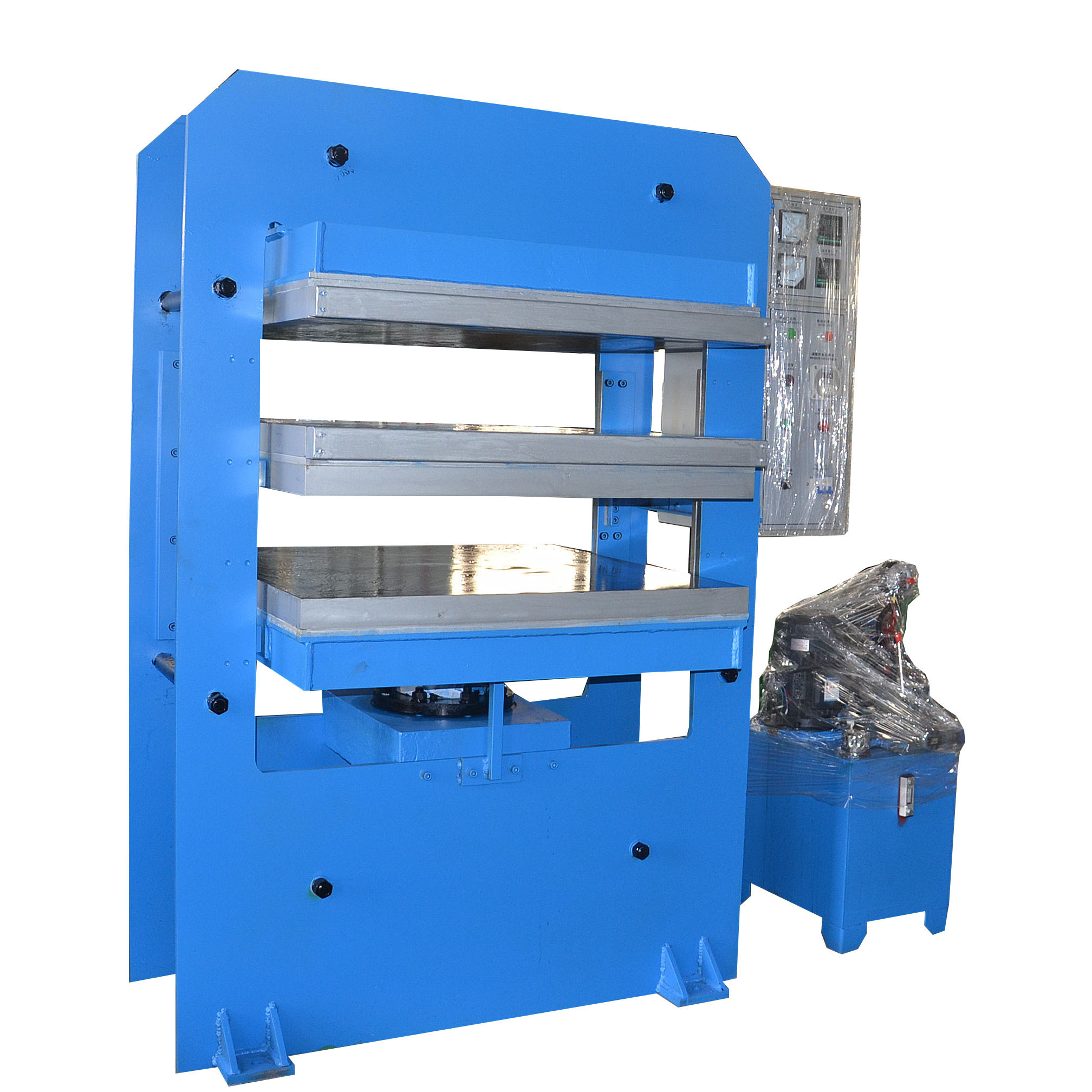

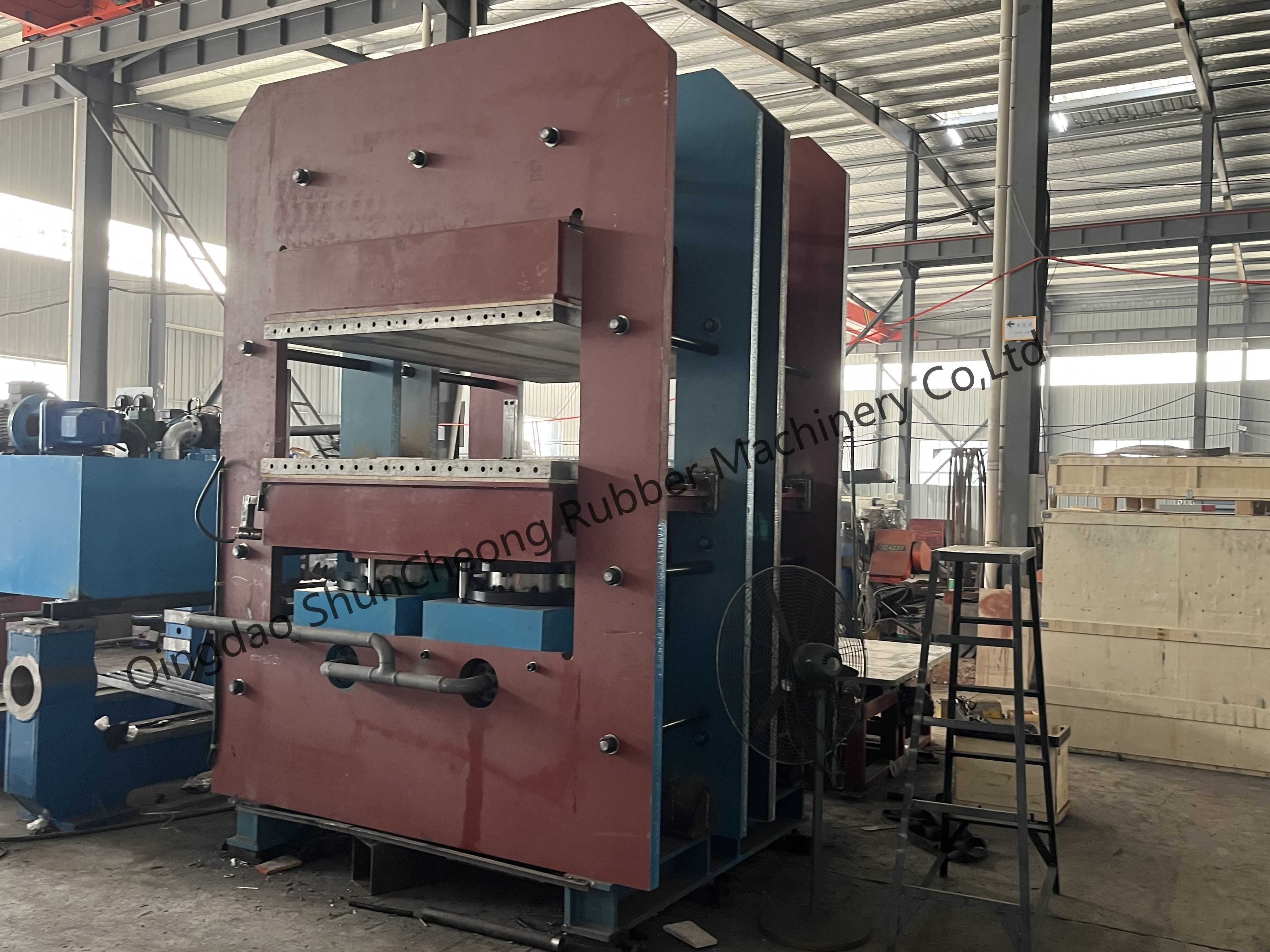

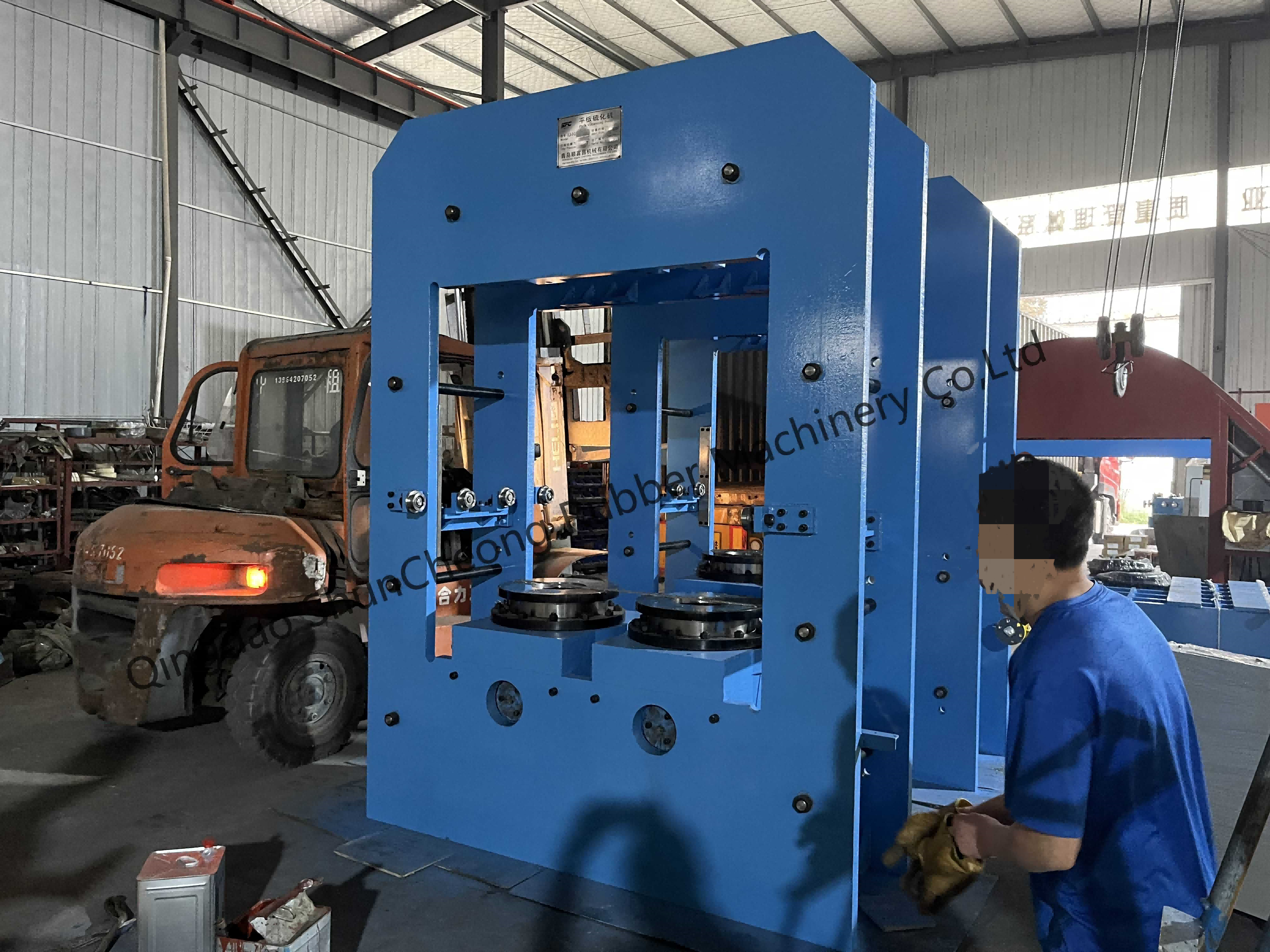

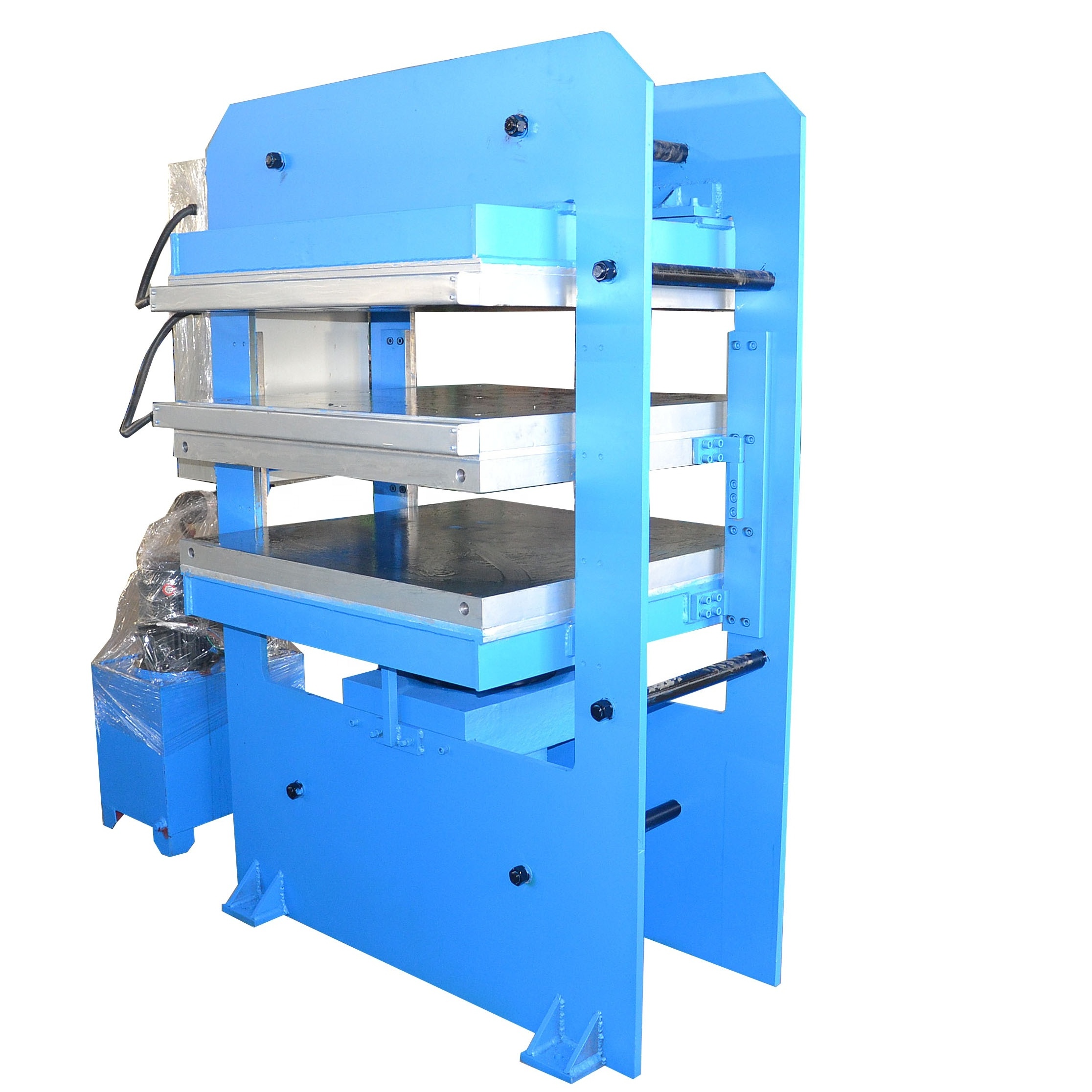

The machine is mainly used for vulcanizing various rubber products
. The plunger of the machine rises under the action of the working fluid pressure, and the plunger falls (i.e. the hot plate opens) by the hot plate, platform and the plunger's own weight, driving the working fluid to flow back to the oil storage tank to achieve the purpose of falling (i.e. opening). The combined oil pump of vulcanization machine is the power source of the machine, which supplies the working fluid with a certain pressure. Vulcanizing machine working fluid through the control valve into the cylinder, the control handle to different positions, the plate vulcanizing machine plunger can rise or fall.
Product Feature
The working layer number can be designed as the request.
Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements. Hand control,electrical control and PLC control is optional.
Product Paramenters
|
Model
|
Total Pressure
|
Daylight(mm)
|
Working
Layer |
Piston
Stroke(mm) |
Main Motor
Power(KW) |
Overall Diameter
(LxWxH)(mm) |
|
XLB-350x350x2
|
0.25
|
125
|
2
|
250
|
2.2
|
1200x580x1200
|
|
XLB-400x400x2
|
0.50
|
125
|
2
|
250
|
2.2
|
1400x500x1400
|
|
XLB-600x600x2
|
1.00
|
125
|
2
|
250
|
2.2
|
1880x820x1680
|
|
XLB-750x850x4
|
1.60
|
125
|
4
|
500
|
3
|
1730x930x2460
|
|
XLB-900x900x2
|
2.5
|
200
|
2
|
400
|
4
|
2345x960x1385
|
|
XLB-1200x1200x1
|
3.15
|
300
|
1
|
300
|
4
|
2800x1300x2300
|
|
XLB-1300x2000x1
|
5.60
|
400
|
1
|
400
|
8
|
2000x1860x2500
|
|
XLB-1500x1500x1
|
8.00
|
800
|
1
|
800
|
16.5
|
2200x2200x4300
|
Product packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and
then packed in wooden cases.
then packed in wooden cases.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the
bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the
bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
Our Services And Certifications
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
