Quick Details
-
Brand Name:
-
Apollo
-
Year:
-
2023
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
4.4*2.6*3.8 M
-
Hollow part volume:
-
60
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
90 mm
-
Screw Heating Power(kW):
-
45 kW
-
Extruder Motor Power(kW):
-
18 kW
-
Mold Platen Size(Width)(mm):
-
700 mm
-
Mold Platen Size(Height)(mm):
-
900 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.0 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
4.4 L
-
Power (kW):
-
45
-
Weight (T):
-
11
-
Name:
-
10 Gallon Jerry Cans Extrusion Blow Molding Machine
-
Max. Product Volume:
-
60 L
-
Station:
-
single station
-
Suitable bottle:
-
Kettles, jerry cans, vessels, toolboxes
-
Material Storage:
-
4.4L
-
Color:
-
Customized
Quick Details
-
Clamping Force (kN):
-
320
-
Output (kg/h):
-
450 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Apollo
-
Year:
-
2023
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
4.4*2.6*3.8 M
-
Hollow part volume:
-
60
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
90 mm
-
Screw Heating Power(kW):
-
45 kW
-
Extruder Motor Power(kW):
-
18 kW
-
Mold Platen Size(Width)(mm):
-
700 mm
-
Mold Platen Size(Height)(mm):
-
900 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.0 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
4.4 L
-
Power (kW):
-
45
-
Weight (T):
-
11
-
Name:
-
10 Gallon Jerry Cans Extrusion Blow Molding Machine
-
Max. Product Volume:
-
60 L
-
Station:
-
single station
-
Suitable bottle:
-
Kettles, jerry cans, vessels, toolboxes
-
Material Storage:
-
4.4L
-
Color:
-
Customized
Product Description

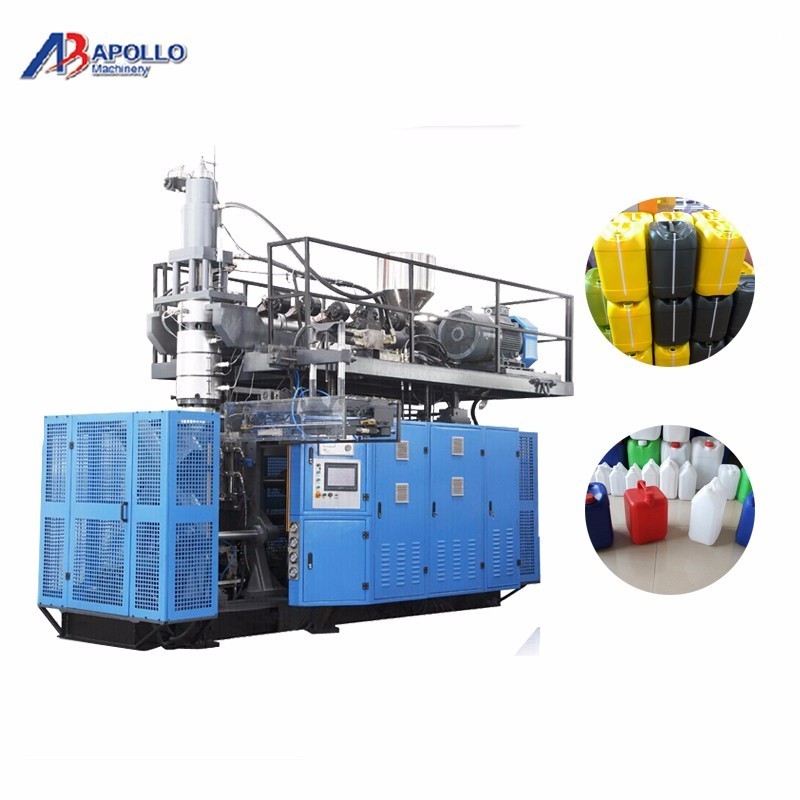

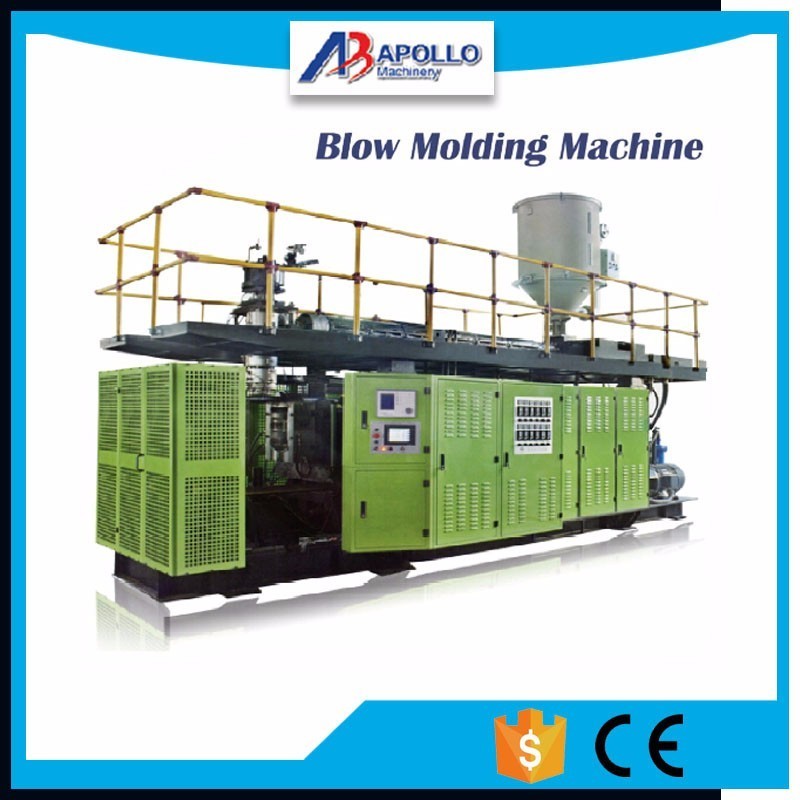

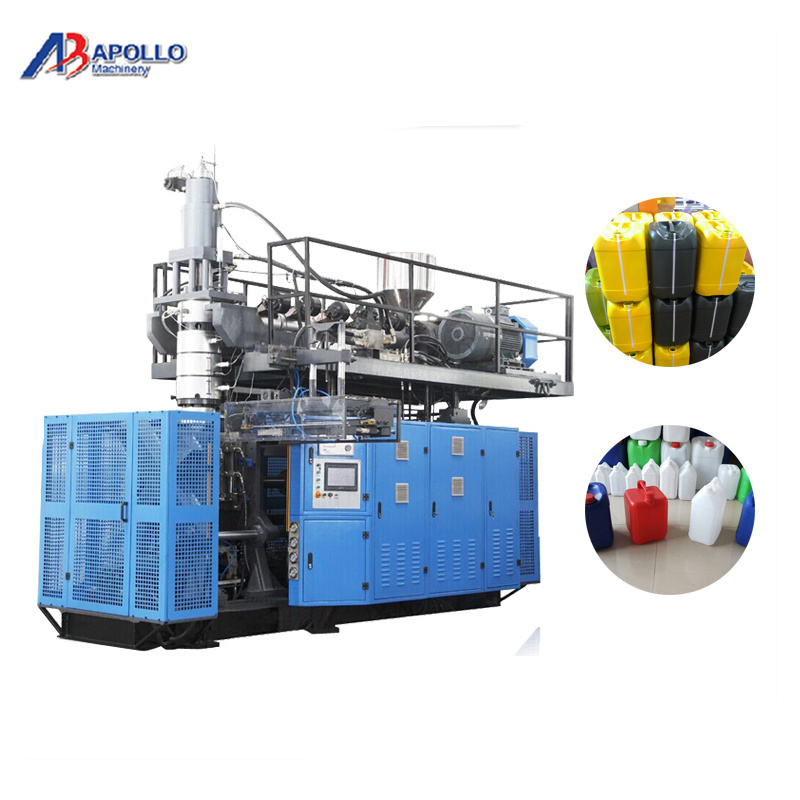

60L Jerry Cans Extrusion Blow Molding Machine

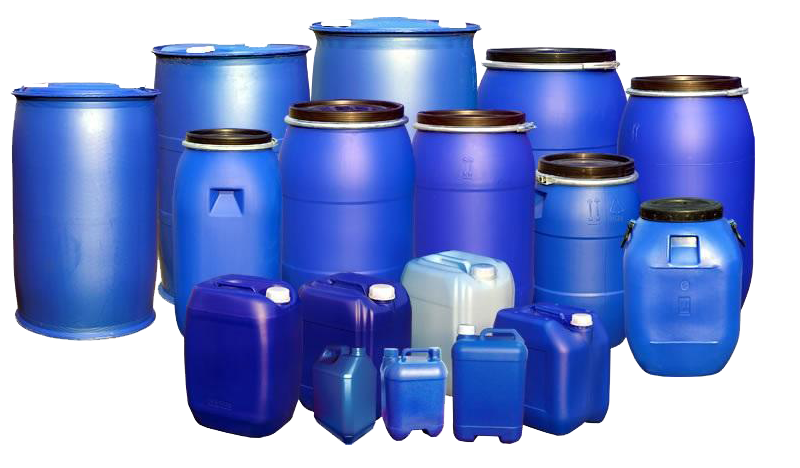

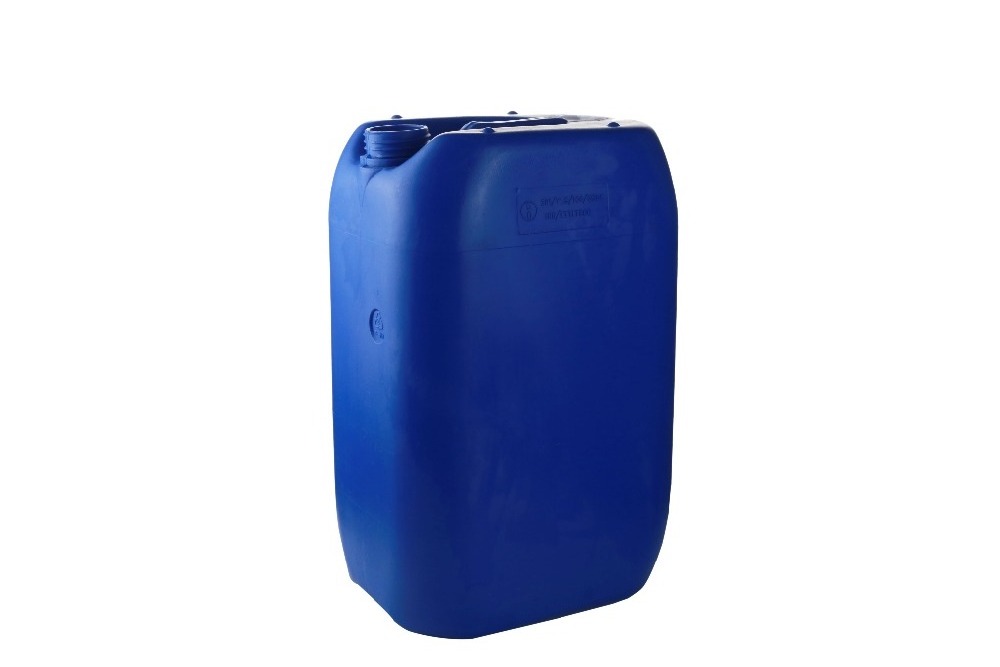

It is widely used in bottles, kettles, jerry cans, vessels,toolboxes, toys and so on.
It is equiped with Japanese Mitsubishi PLC & temperature controller, Schneider contactor, Delta or ABB invertor, Siemens Motor, Hitech oil pump, Original Japan MOOG 100 points parison controller.
Oil pump motor adopt latest servo motor, saving more than 40% energy consumption.
Optional function for special blow molding such as: Bottom blowing, Side blowing, Material support, inner and outter screw mould release, sub-mould open and close, automatic sealing, mechanical robot so on.
Main Features
1) This type of machine is suitable to produce different shapes of plastic bottles from 30-60L.
2) Adopt Mitsubishi PLC from Japan.
3) Contactor use Schneider from France.
4) Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.
2) Adopt Mitsubishi PLC from Japan.
3) Contactor use Schneider from France.
4) Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.
Detailed Images
Machine Parts
Machine Parts
Machine Parts
Certifications
Packing & Delivery
Packing
Standard sea freight package for sea freight by 20+40 CY.
Delivery
No later than 40 working days, after we received the deposit.
