Quick Details
-
Power supply:
-
DC5~24V
-
Voltage output:
-
0~2V
-
Communication protocal:
-
RS485 MODBUS
-
measuring range (VWC):
-
0~100%
-
temperature range:
-
-40~80°
-
material of the pin:
-
food grade steel
-
delivery time:
-
2~5 working days
-
OEM order:
-
welcome
-
Sample order:
-
supported
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
A-SM1
-
Iterm:
-
soil moisture
-
Power supply:
-
DC5~24V
-
Voltage output:
-
0~2V
-
Communication protocal:
-
RS485 MODBUS
-
measuring range (VWC):
-
0~100%
-
temperature range:
-
-40~80°
-
material of the pin:
-
food grade steel
-
delivery time:
-
2~5 working days
-
OEM order:
-
welcome
-
Sample order:
-
supported

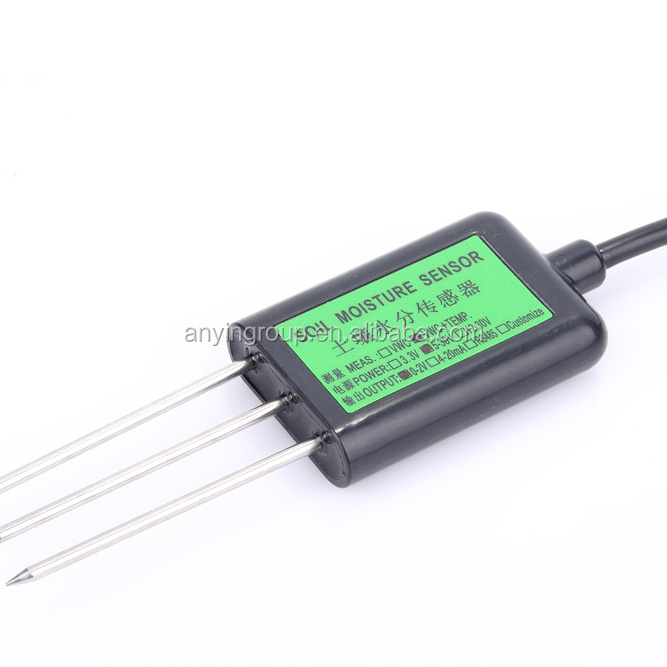

Product Description
Competitive Advantage:
- High sensitivity and accuracy, good interchangeability.
- Reliably sealing, corrosion resisting, long service life in the soil.
- With flame-retardant epoxy resins to make sure strong waterproof and anti-impact of external forces.
- Made of high quality steel, the sensor can endure long time electrolysis and the corrosion of acid & base in the soil.
- Protected from inverse wire connection.
Technical parameter
| MODEL | MS10 | |
| Detected area | In the 7cm high, 7cm diameter cylinder with the central pin as the center | |
| Response time | Less than 1s | |
| Soil moisture accuracy | 0-53%:±3%; 53-100%:±5% | |
| Width | 45mm | |
| Thickness | 15mm | |
| Gap between the sensor pins | 13mm | |
| Logo | Support | |
| OEM | Support | |
| MOQ | Support | |
Connection
- Red(V+): Power(V+)
- Black(G): Power (GND)
- Blue(O1): Signal output (temperature)
- Brown(O2): signal output (water content)
- Yellow: No connection
- White: No connection
- Green: No connection
- Modbus address is 0.
- Communication configuration is 9600,N,8,1(9600bps, no check digit,8 data bits, 1 stop bit).
- Communication Modbus-RTU The configuration parameter of EEPROM will not change because “setting mode” or “ operation mode” starts.
