Name:
Liquid Barrel
Brand:
Taichuan
Original:
China
Imported photocell for optical screen sense system ensure accurate measuring
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
420
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TAICHUAN
-
Dimension(L*W*H):
-
L1100*W755*1730mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing:
-
sea worthy wooden case
-
Control:
-
easy operation
-
Automatic:
-
touch screen control
-
Bag type:
-
back sealing
-
Packing flim:
-
OPP/CPP. OPP/CE, MST/PE
-
Usage:
-
food, medical,industry
-
Main Function:
-
filling, sealing, packing
-
sealing type:
-
hot sealing
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
420
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TAICHUAN
-
Dimension(L*W*H):
-
L1100*W755*1730mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing:
-
sea worthy wooden case
-
Control:
-
easy operation
-
Automatic:
-
touch screen control
-
Bag type:
-
back sealing
-
Packing flim:
-
OPP/CPP. OPP/CE, MST/PE
-
Usage:
-
food, medical,industry
-
Main Function:
-
filling, sealing, packing
-
sealing type:
-
hot sealing
-
After Warranty Service:
-
Video technical support
Product Description
|
Model
|
TCLB-420P
|
|
Film Width
|
Max.420mm
|
|
Film Width (Bag Former)
|
150-420mm
|
|
Bag Width
|
65-200mm
|
|
Bag length
|
80-300mm
|
|
Film roll Diameter
|
Max.320mm
|
|
Packing Speed
|
5-60 bags/min
|
|
Meaurment Range
|
150-1500ml
|
|
Film Thickness
|
0.04-0.08mm
|
|
Packaging Film Materials
|
Laminate plastic Film,such as OPP/CPP/OPP/CE/MST/PE etc.
|
|
Power
|
220V,50/60Hz,3KW
|
|
Machine Type
|
Pneumatic Type
|
Main Features

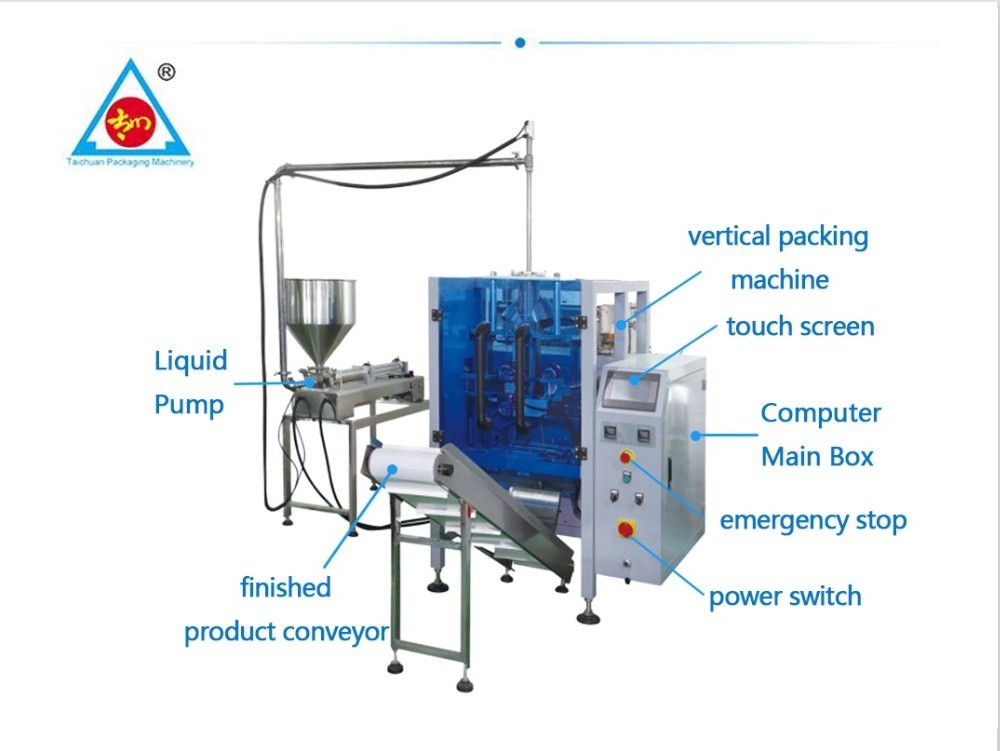

Detailed Images
Optional Device
Perforated knife holder
Gusset bag device
Continue link bag
Nitrogen Making Machine
Bag Former
Finished Conveyor
Customers Feedback

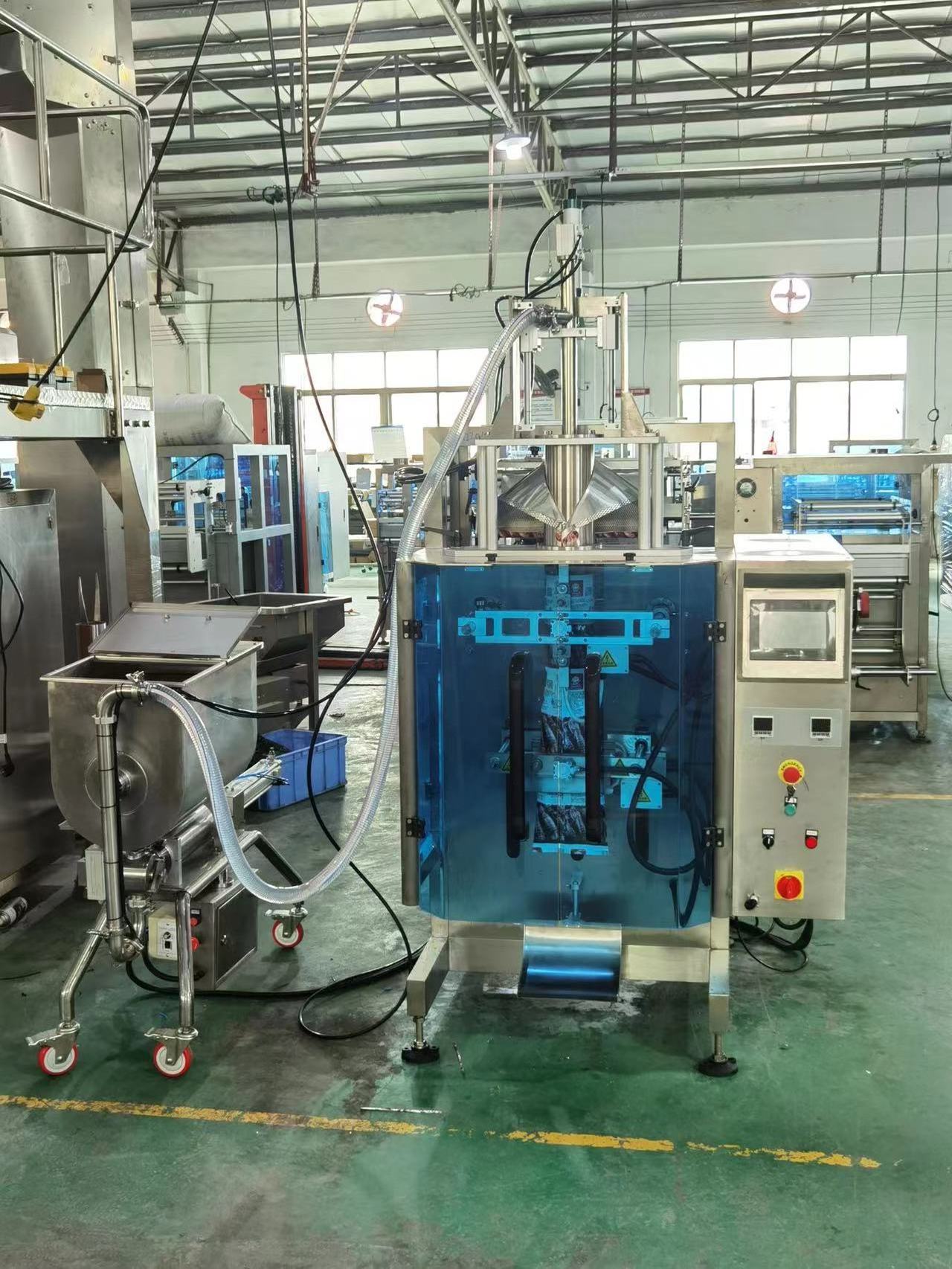

Our Factory
Our service
Packing & Delivery
Shipping
The wooden case is customized according to the dimension of the machine for the long time shipping and transfering.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2.Cleaning the dust and the scrap after testing the machine with the air pump.
3. Disassemble some certain part of the machine.
4. All the disassemble part, toolbox, main machine wrap by film
5.There will have screw fix themachine at the bottom of the wooden case 6.If any special requirements, we will pack it as requested.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2.Cleaning the dust and the scrap after testing the machine with the air pump.
3. Disassemble some certain part of the machine.
4. All the disassemble part, toolbox, main machine wrap by film
5.There will have screw fix themachine at the bottom of the wooden case 6.If any special requirements, we will pack it as requested.
A small spare part: Wrapped by the film that delivered by the
DHL,UPS,TNT,EMS
etc.
