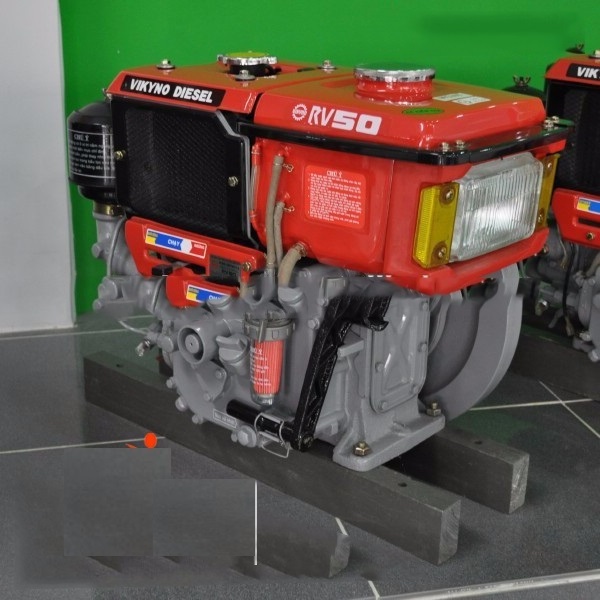

Vikyno Diesel Engine RV50 (5HP) 4 Stroke Single Cylinder Water Cooled

FOB Reference Price: Get Latest Price

≥1 Sets

US $1

Free Inquiry

Customized Request

Explore More Products

Engine 4 cycle, 1 cylinder, horizontal, Maximum output 5 HP, Fuel tank capacity 7.5, Lubricating oil 30, Lamp, Radiator, Weight 65Kg

Model	RV50
Type	4 cycle, 1 cylinder, horizontal
Bore x Stroke (mm)	72 x 75
Displacement (cm ³ )	305
Continuous output (HP/r.p.m) Maximum output	4.5/2200 5/2400
Maximum torque (kgm/rpm)	1.62/1800
Compression ratio	24
Fuel	Light diesel oil
Fuel tank capacity (l)	7.5
Specific fuel consumption (g/HP/hr)	203
Nozzle opening pressure(Kg/cm ² )	140
Lubricating oil	SAE30,20,10w-30
Lubricating oil capacity (l)	2
Combustion system	Indirect injection
Starting system	Handle starting –Electric starter
Lamp	12V-25W
Cooling system	Radiator
Cooling water capacity (l)	1.3
Weight (kg)	65
Dimensions:L x W x H (mm)	619 x 322.5 x 435

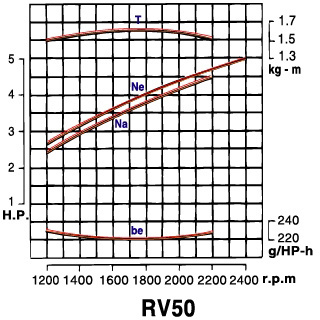

T : Torque

Na : Continuous output

Ne : Maximum output

be : Specific fuel consumption
