Quick Details
-
Power Source:
-
Electric
-
Power (W):
-
450
-
Voltage (V):
-
220
-
Model Number:
-
BIMF-60
-
Brand Name:
-
BOYN
-
Place of Origin:
-
Zhejiang, China
-
Ice shape:
-
Flake
-

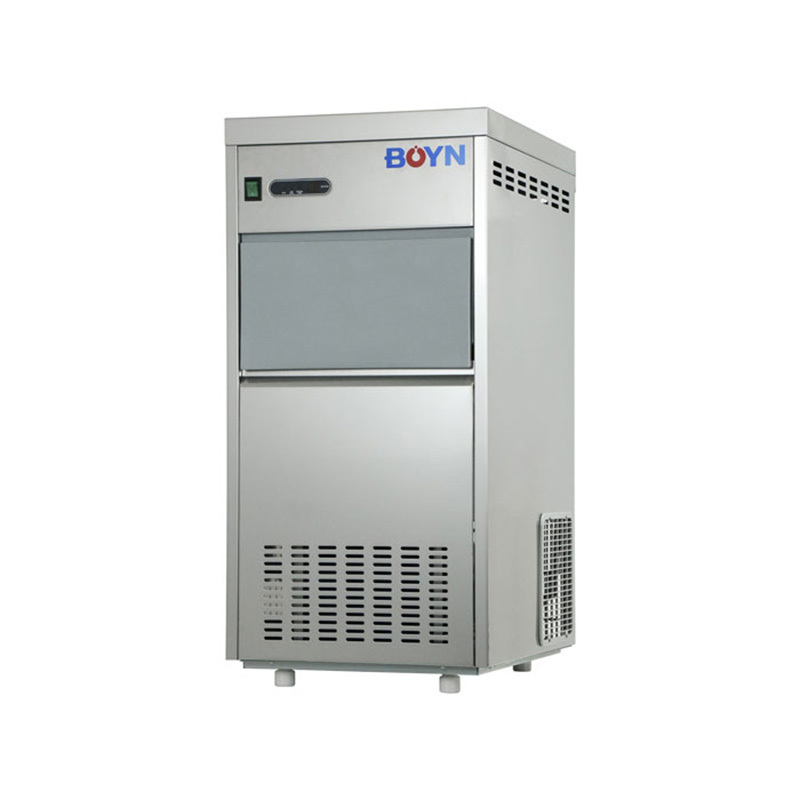

Product name:
-
Flake ice maker
-
Material:
-
stainless steel
-
Color:
-
sliver
-
24H Ice Output:
-
60kg
-
Advantage:
-
automatic
-
Weight:
-
42kg
-
Ice output/24 hours:
-
15kg
-
Way of adding water:
-
Tap water
-
Ice description:
-
snow flake
Quick Details
-
After-sales Service Provided:
-
Free spare parts, Onsite Installation, Return and Replacement, None, Field maintenance and repair service, Overseas Call Centers
-
Warranty:
-
1 Year
-
Application:
-
RV, Outdoor, Hotel, Garage, Commercial, Household
-
Power Source:
-
Electric
-
Power (W):
-
450
-
Voltage (V):
-
220
-
Model Number:
-
BIMF-60
-
Brand Name:
-
BOYN
-
Place of Origin:
-
Zhejiang, China
-
Ice shape:
-
Flake
-
Product name:
-
Flake ice maker
-
Material:
-
stainless steel
-
Color:
-
sliver
-
24H Ice Output:
-
60kg
-
Advantage:
-
automatic
-
Weight:
-
42kg
-
Ice output/24 hours:
-
15kg
-
Way of adding water:
-
Tap water
-
Ice description:
-
snow flake
Product Description
Product features:
*Flake Ice
*Free-standing installation
*Overloading and water shortage and full ice alarm
*High efficiency CFC free compressor, Economical and low energy consumption
*Fully automatic running and easy to use
*Air cooling system, ventilate from side
*Ice production testing condition: Ambient temperature
*21°C ,inlet water temperature 10°C
Product Paramenters
|
Model
|
BIMF-60
|
BIMF-80
|
BIMF-85
|
|
Ice Production Capacity
|
60kg/24h
|
80kg/24h
|
85kg/24h
|
|
Ice Storage Capacity
|
15kg
|
30kg
|
20kg
|
|
Ice shape
|
Flake
|
Flake
|
Flake
|
|
Electrical Supply
|
AC220/50Hz
|
AC220/50Hz
|
AC220/50Hz
|
|
Power
|
450W
|
580W
|
540W
|
|
Refrigerant
|
R134a/125g
|
R134a/150g
|
R134a/140g
|
|
Condensing system
|
Air cooling
|
Air cooling
|
Air cooling
|
|
Overall Dimensions
|
398×512×810mm
|
500×610×947mm
|
548×612×872mm
|
|
Packing Dimensions
|
460×570×870mm
|
555×670×1000mm
|
615×685×932mm
|
|
Net weight
|
42kg
|
59kg
|
56kg
|
|
Gross Weight
|
48kg
|
65kg
|
62kg
|
|
Housing Material
|
304/2B Stainless Steel
|
304/2B Stainless Steel
|
304/2B Stainless Steel
|
|
Material of baseboard& backboard
|
galvanized steel
|
galvanized steel
|
galvanized steel
|
|
Ice Bin
|
Food Grade ABS
|
Food Grade ABS
|
Food Grade ABS
|
|
Insulation
|
Expanded Polystyrene
|
Expanded Polystyrene
|
Expanded Polystyrene
|
|
Evaporator
|
Nickel Plated copper
|
304 Stainless Steel
|
Nickel Plated copper
|
|
Inlet water
|
Drinking water
|
Drinking water
|
Drinking water
|
|
Water pressure
|
>0.15~0.3MPa
|
>0.15~0.3MPa
|
>0.15~0.3MPa
|
|
Inlet diameter
|
0.75inch
|
0.75inch
|
0.75inch
|
|
Pipeline material
|
Food Grade plastic
|
Food Grade plastic
|
Food Grade plastic
|
