Quick Details
-
Model Number:
-
SZC03-NO-AL-CH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mylan
-
Product name:
-
AC Current Switch
-
Warranty:
-
12 Months
Quick Details
-
Usage:
-
Current sensing switch
-
Mounting Type:
-
Safety
-
Description:
-
Safety
-
Model Number:
-
SZC03-NO-AL-CH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mylan
-
Product name:
-
AC Current Switch
-
Warranty:
-
12 Months
Products Description

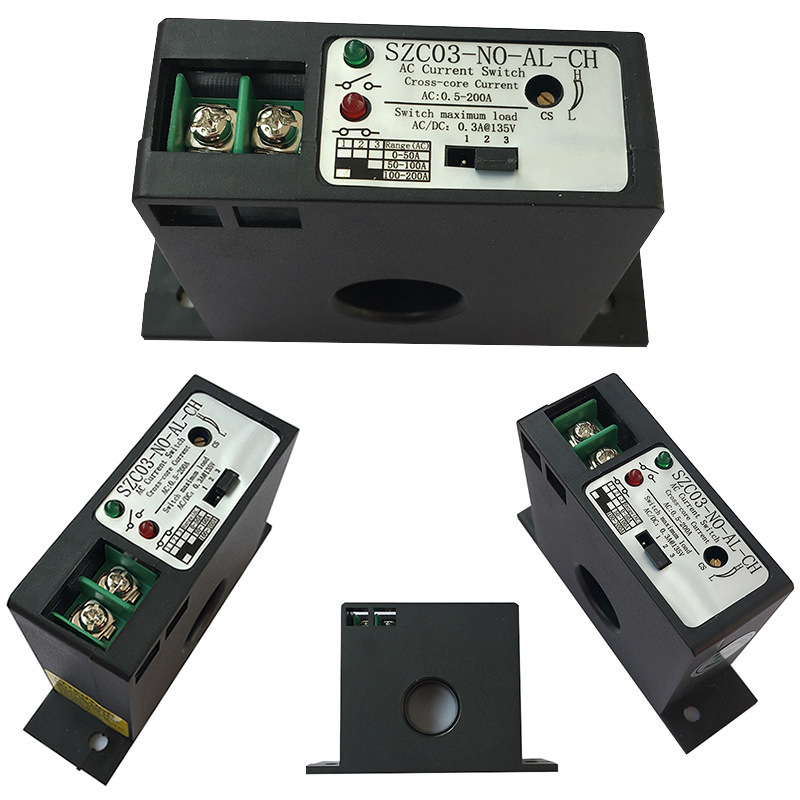

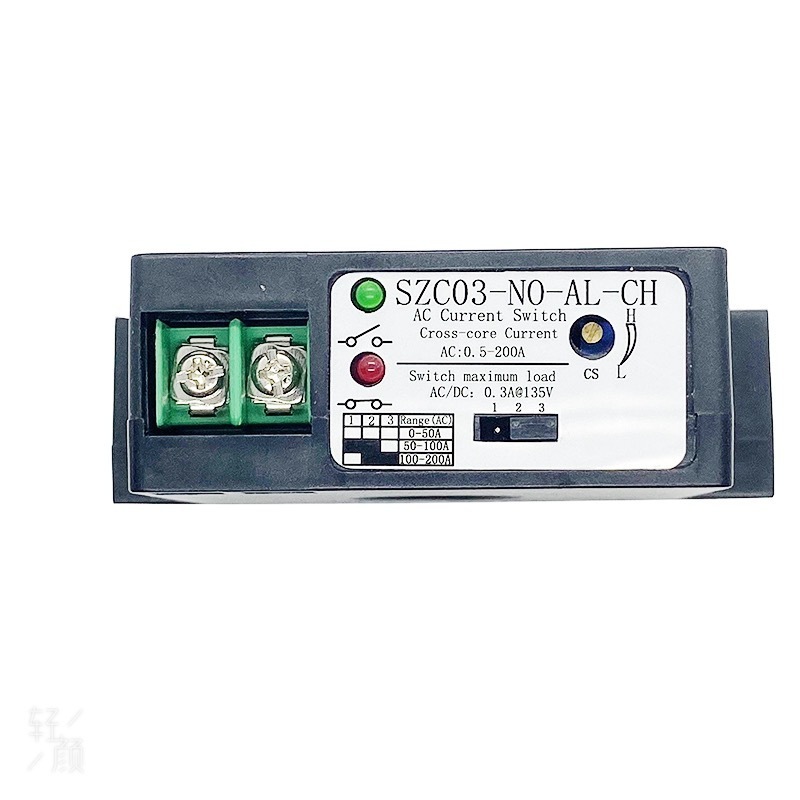

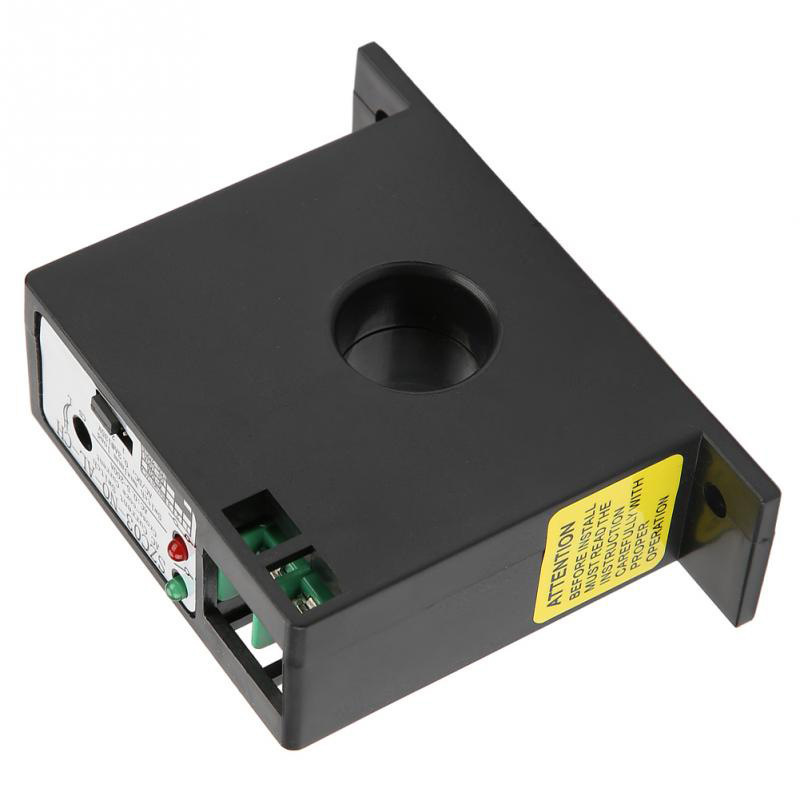

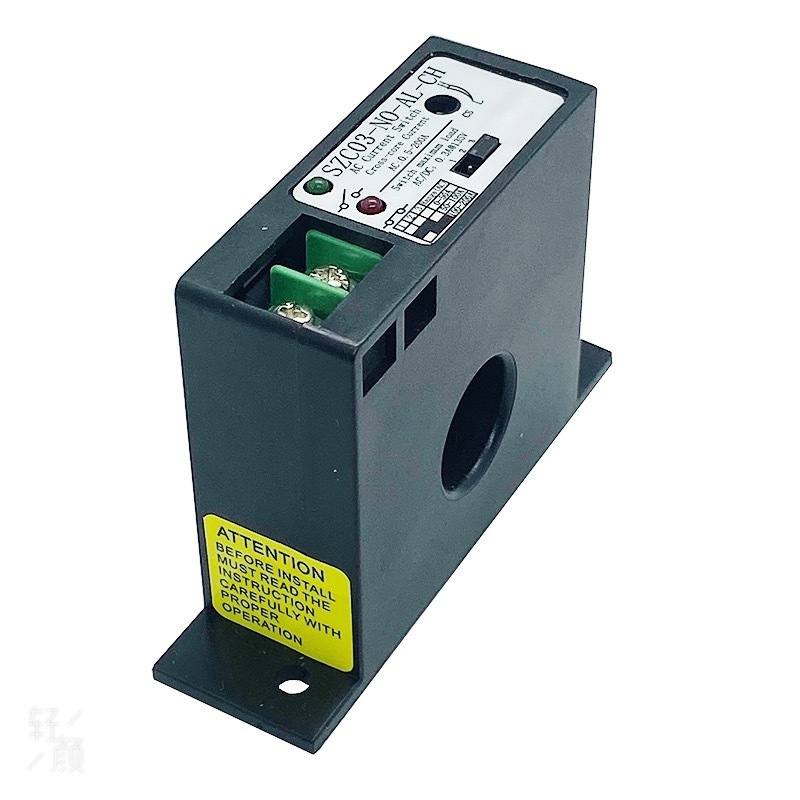

High power MOS contactless switch Electrolytic plating AC current monitoring Switch Coal mine lamp Switch
Typical application
* AC current monitoring
* Motor overload protection
* Electronic switch of automatic control system
* AC current monitoring
* Motor overload protection
* Electronic switch of automatic control system
|
Power supply
|
Self-powered without external power supply
|
|
Input through-core current
|
0.5-200A AC (round mouth type) 1.5-200A AC (jaw type)
|
|
Minimum switch conduction
|
0.5A (round mouth type) 1.5A (jaw mouth type)
|
|
Precision
|
10%
|
|
Maximum leakage current
|
<1mA
|
|
Response time
|
<200MS
|
|
specified load
|
0.3A@135V AC/DC
|
|
The maximum overload of the penetrating current
|
200%
|
|
Power consumption
|
<1W
|
|
Hysteresis
|
1%
|
|
level of accuracy
|
0.5
|
|
Input loop power consumption
|
<0.5VA
|
