Quick Details
-
Brand Name:
-
Minghong
-
Model Number:
-
PU-3000
-
Output Frequency:
-
50/60 HZ
-
Size:
-
420*180*120
-
Weight:
-
7450g
-
Battery type:
-
Lead-acid batteries
-
Output waveform:
-
pure sine wave ups power pure sine wave inverter with charger
-
Warranty:
-
12 Months warranty UPS inverter charger
-
Color:
-
Cool black color pure sine wave power inverter with battery charger
-
Application:
-
Outdoor camping applience
-
Protection:
-
Overload ,over voltage.low voltage and reversed function
-
Rated power:
-
3000w
-
Charge current:
-
20A
-
Peak Power:
-
6000w
-
Product name:
-

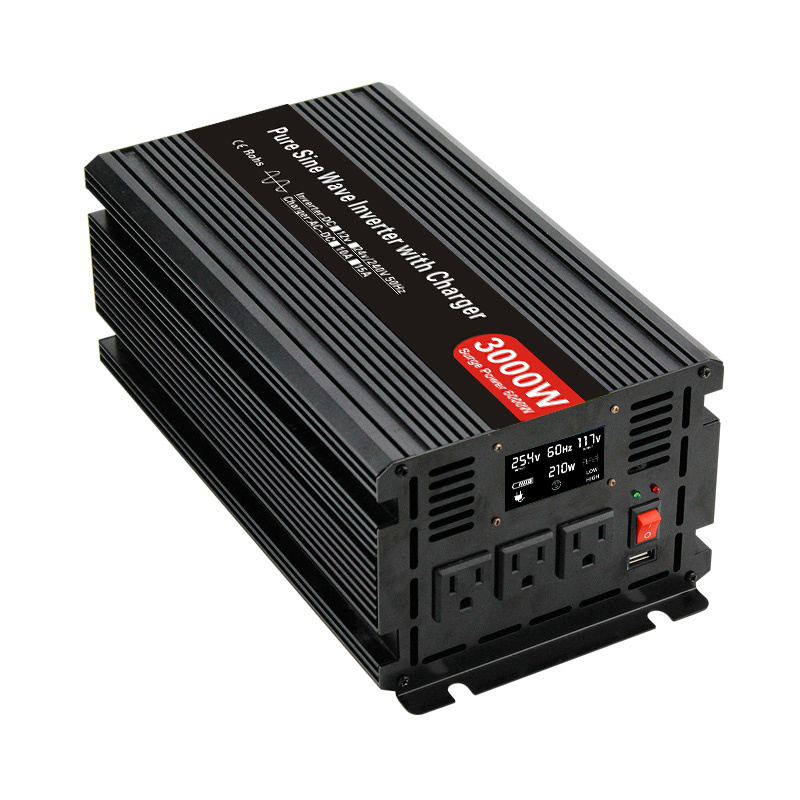

3000w pure sine wave solar power inverter with charger
-
Certificate:
-
CE.FCC
Quick Details
-
Output Current:
-
20A
-
Customized support:
-
logo
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minghong
-
Model Number:
-
PU-3000
-
Output Frequency:
-
50/60 HZ
-
Size:
-
420*180*120
-
Weight:
-
7450g
-
Battery type:
-
Lead-acid batteries
-
Output waveform:
-
pure sine wave ups power pure sine wave inverter with charger
-
Warranty:
-
12 Months warranty UPS inverter charger
-
Color:
-
Cool black color pure sine wave power inverter with battery charger
-
Application:
-
Outdoor camping applience
-
Protection:
-
Overload ,over voltage.low voltage and reversed function
-
Rated power:
-
3000w
-
Charge current:
-
20A
-
Peak Power:
-
6000w
-
Product name:
-
3000w pure sine wave solar power inverter with charger
-
Certificate:
-
CE.FCC
| Model | PU-3000W-12V | PU-3000W-24V | PU-3000W-48V |
| Rated power | 3000W | ||
| Peak power | 6000W | ||
| Input voltage(Range) | DC12V(9-15.5V) | DC24V(18-31V) | DC48V(38-61V) |
| Output voltage(Single) | (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5% | ||
| Unload current less than | ≤0.9A | ≤0.4A | ≤0.2A |
| Output frequency | 50Hz or 60Hz | ||
| Output waveform | Pure Sine Wave | ||
| Waveform distortion | THD≤3%(Pure resistive Load)) | ||
| USB | 5V,2.1A | / | |
| Max.efficiency | 90% | ||
| Charge current | 15A | ||
| Charge voltage | 14.5V | ||
| Floating voltage | 13.5V | ||
| Charger input voltage range | 110vac/220vac | ||
| Frequency | 50Hz or 60Hz | ||
| Max.efficiency | 90% | ||
| Low voltage protection | Pre-alarm (alarm off after 1 sound), LED Red light on, voltage contiously reduce and shutdown | ||
| Over voltage protection | Pre-alarm (alarm off after 2 sounds), LED Red light on, shutdown | ||
| Over load protection | Continuous alarm, LED Red light on, shutdown | ||
| Over temperature protection | Pre-alarm (alarm off after 3 sounds), tempurature continously rise, LED Red light on, shutdown | ||
| Short circuit protection | Perfect protection and no damage the circuit | ||
| Input reverse polarity protection | Fuse burn-out | ||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 9.5±0.5V | 19±0.5V | 38±1V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14V±0.2V | 28V±0.5V | 54V±1V |
| Working temperature | -10°- +50° | ||
| Product Dimension(mm) | 420*180*120 | ||
| Packing(mm) | 480*220*180 | ||
| Net./gross weight(g) | 6280/7450g | ||
| QTY/CTN | 4 PCS | ||
| Meas./CTN(mm) | 500*440*385 | ||
| Gross weight/CTN(g) | 29500g | ||
| Warranty | 12Months | ||
| Accessories | English Manual*1pc; Pure copper cable*2pcs; Spare fuse*4pcs | ||
| Cooling method | Intelligent air cooling | ||
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | |||
