Quick Details
-
Weight (KG):
-
610
-
Voltage:
-
380V/220V or customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhengxia
-
Dimension(L*W*H):
-
3260*1100*2600
-
Product Name:
-
Belt Packing Machine
-
Main Function:
-
Packing
-
Packing Speed:
-
200~300bags/h
-
Sealing Type:
-
Sewing
-
Packing Material:
-
PET
-
After Warranty Service:
-
Video Technical Support
-
After-sales Service Provided:
-
Field Installation, Commissioning and Training
-
Certification:
-
CE Certification
-
Marketing Type:
-
Other
-
Applicable:
-
River Sand,Compost,Kaolin Clay,Lime,Sandy Soil,Briquettes
Quick Details
-
Function:
-
FILLING, Wrapping, COATING, Sealing
-
Packaging Type:
-
Cartons, CANS, Bottles, Bags
-
Packaging Material:
-
Plastic, Paper, Wood
-
Weight (KG):
-
610
-
Voltage:
-
380V/220V or customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhengxia
-
Dimension(L*W*H):
-
3260*1100*2600
-
Product Name:
-
Belt Packing Machine
-
Main Function:
-
Packing
-
Packing Speed:
-
200~300bags/h
-
Sealing Type:
-
Sewing
-
Packing Material:
-
PET
-
After Warranty Service:
-
Video Technical Support
-
After-sales Service Provided:
-
Field Installation, Commissioning and Training
-
Certification:
-
CE Certification
-
Marketing Type:
-
Other
-
Applicable:
-
River Sand,Compost,Kaolin Clay,Lime,Sandy Soil,Briquettes

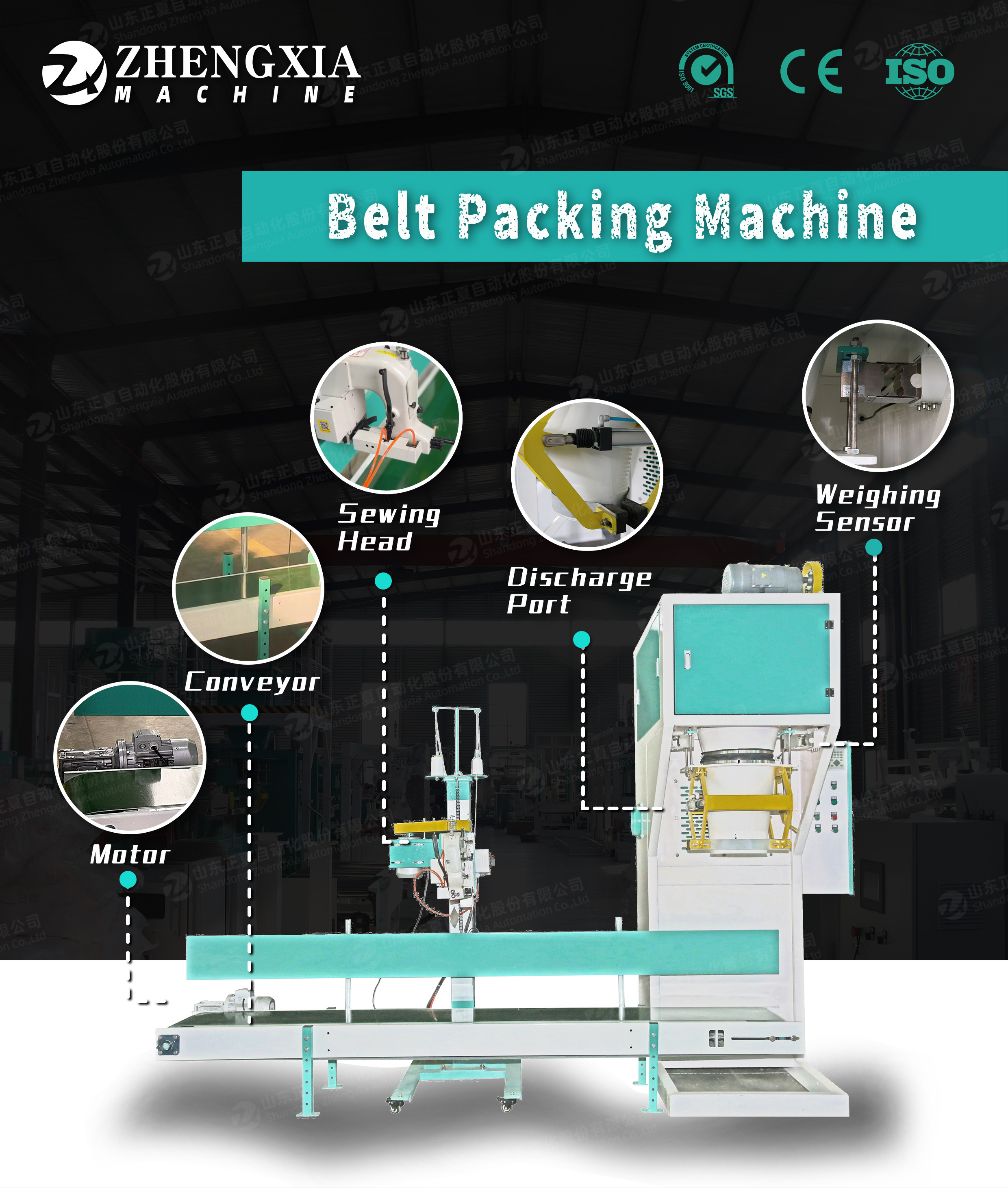

When the particle packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.
PRODUCT DESCRIPTION
|
Model
|
DCS-P -W-50
|
DCS-P-S-50
|
DCS-P-D-50
|
||
|
Material
|
SUS304 Contact parts
|
SUS304 Contact parts
|
SUS304 Contact parts
|
||
|
Gross Weight
|
610KG
|
1200KG
|
1500KG
|
||
|
Packing Capacity
|
200~300bags/h
|
300~400 bags/h
|
400~500 bags/h
|
||
|
Weighing Range
|
5-50kg or Customized
|
5-50kg or Customized
|
5-50kg or Customized
|
||
|
Quantify Precision
|
±0.2%
|
±0.2%
|
±0.2%
|
||
|
Power
|
2.5KW
|
3.0 KW
|
5.0 KW
|
||
|
Power Supply
|
AC 220V/380V 50 HZ 1P/3P Customized
|
|
|
||
|
Air Source
|
0.4~0.6MPa 0.36m³/min
|
|
|
||
|
Application Materials
|
Applicable for materials such as: compost, gravel, rare earth, bentonite, river sand, mortar, organic fertilizer, microbial fertilizer, barite, gypsum, flakes, irregular shaped pieces, bolts, screws, nuts etc.
|
|
|
||
Application:
Shandong Zhengxia Automation Co., Ltd. is one of the fastest growing packaging machinery factories in China,specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. quantitative packaging scales and supporting equipment.
Packing Machine Workflow:
Giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process such as stacking on pallet and wrapping.
Advantage:
-The adaptive software, having the function of automatic control parameters setting, automatic drop revising, over-weight warning and auto-diagnosis.
-Wide packing range, high precision, it can match well with conveyor and sewing machine.
-Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
-Wide packing range, high precision, it can match well with conveyor and sewing machine.
-Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
OPTIONAL
*

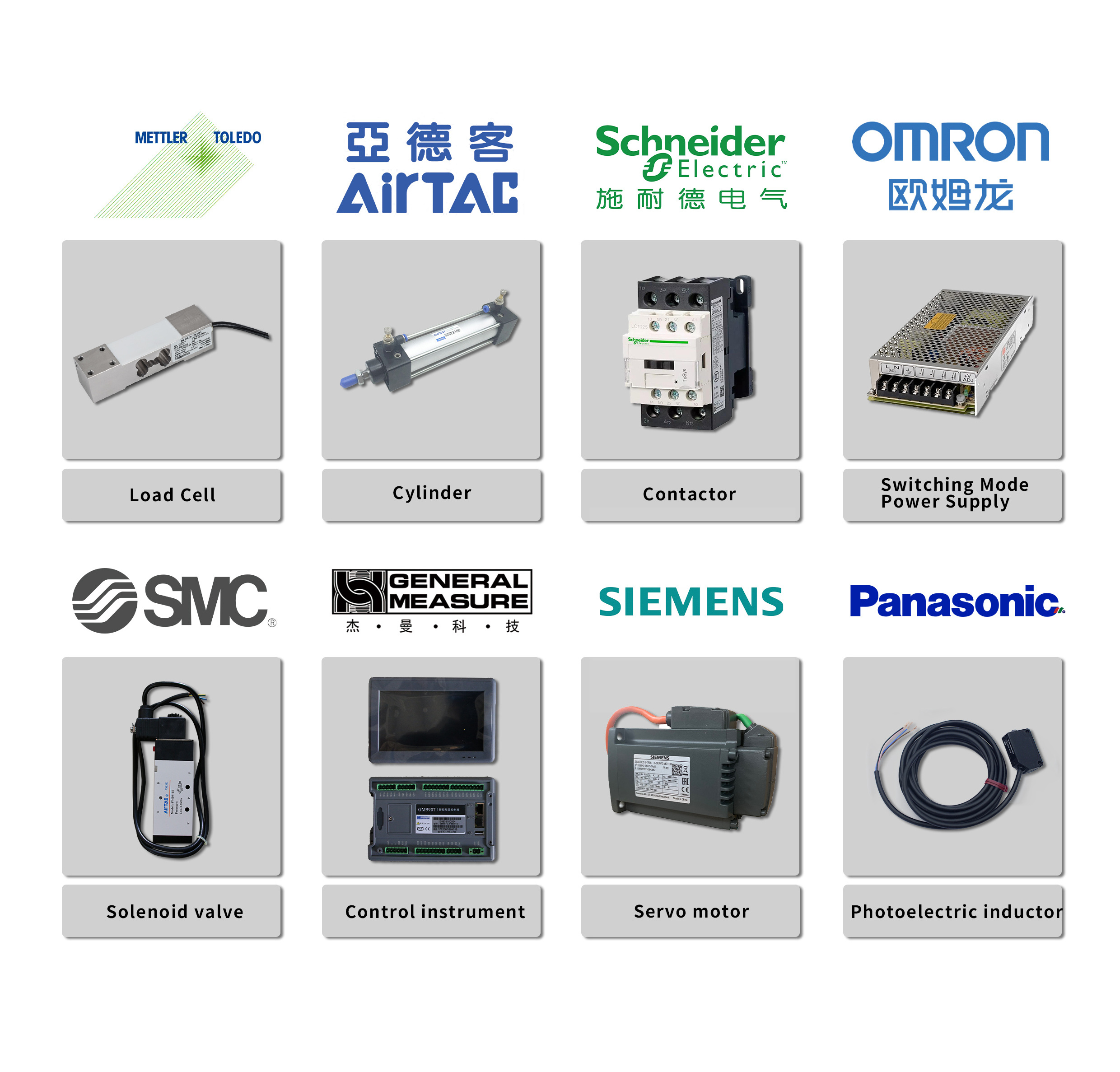

OUR CONFIGURATION

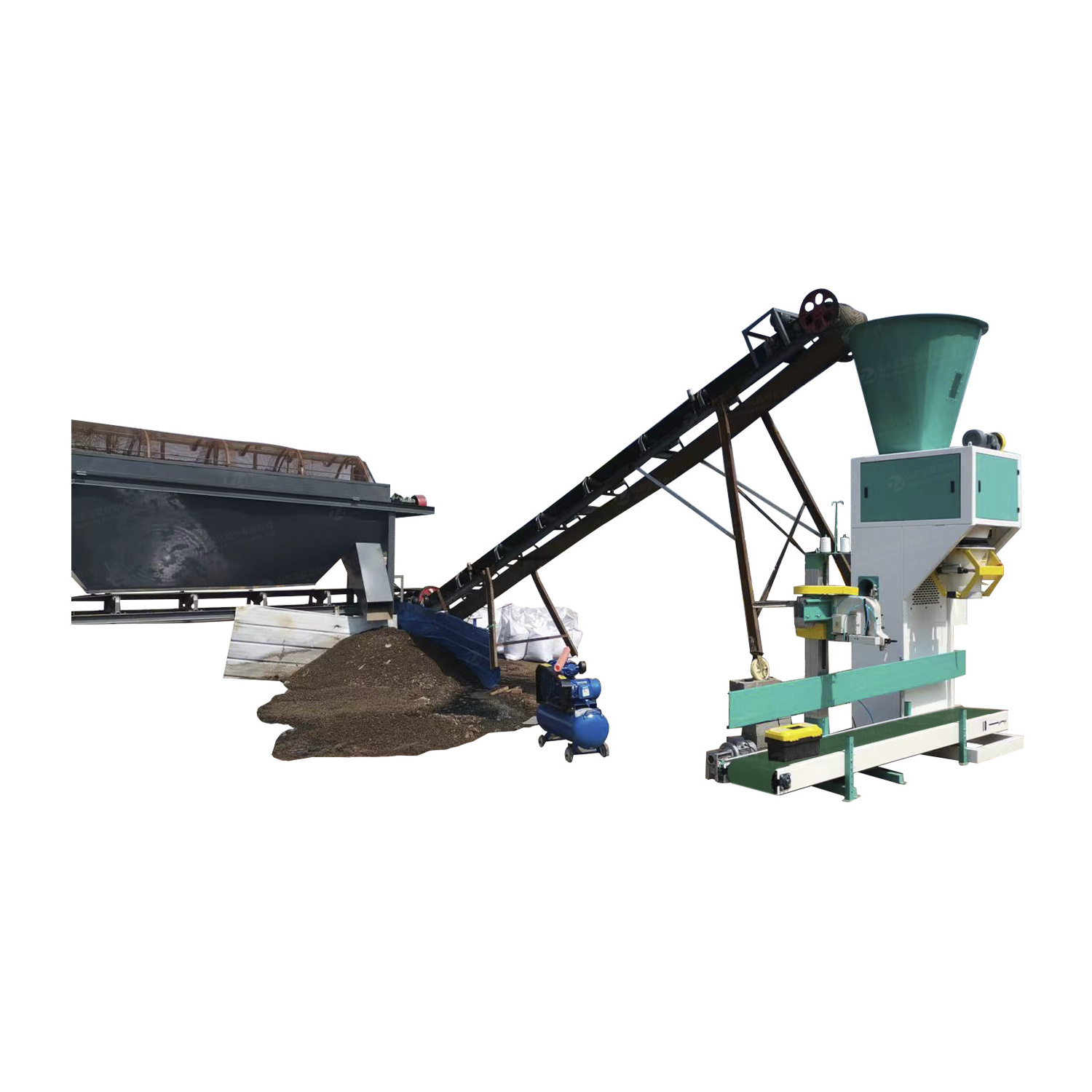

PROJECT DISPLAY

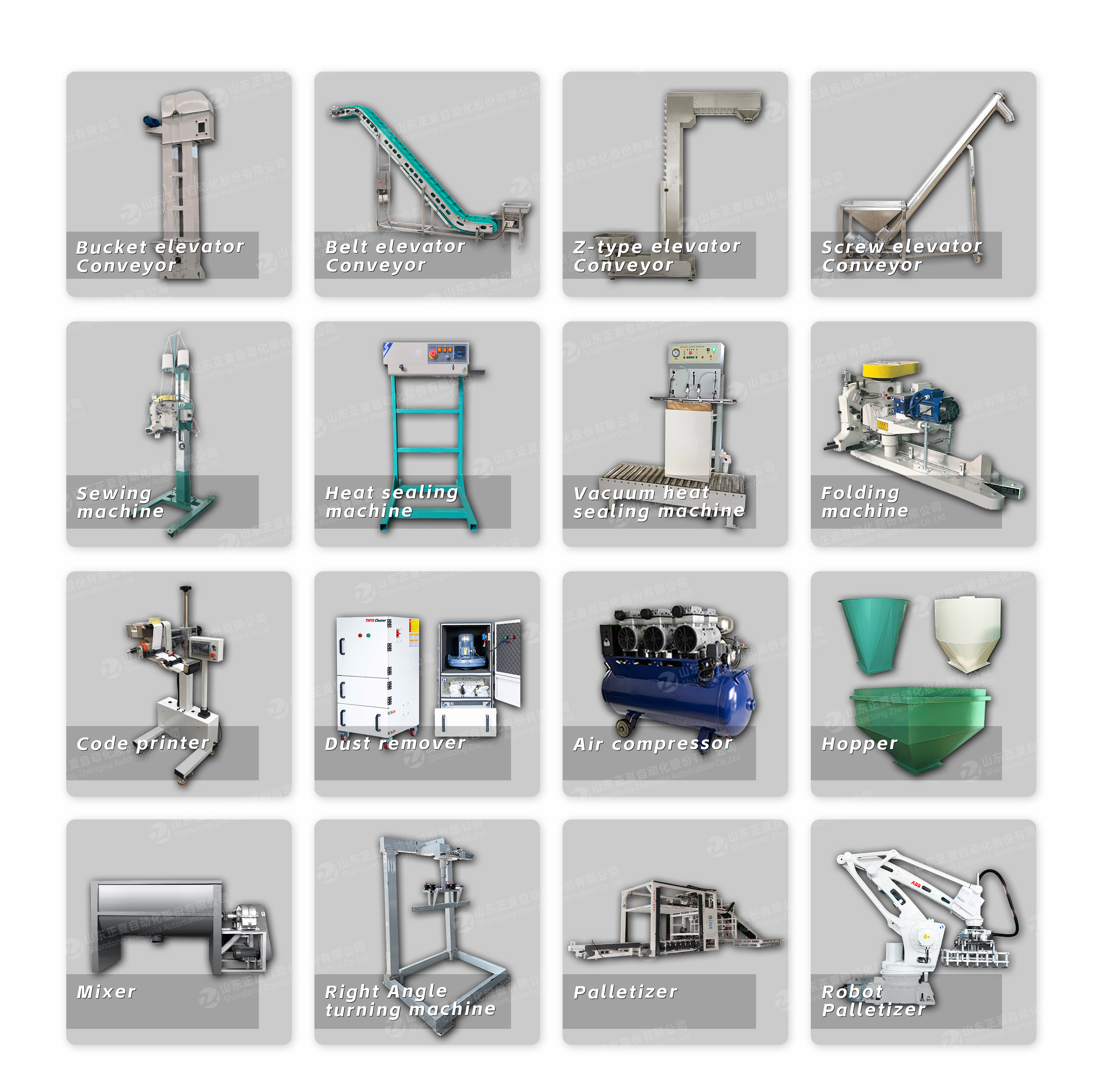

RELATED PRODUCTS
PACKAGING & DELIVERY
CONTACT US
FAQ
1. Can your machine meet our needs well?
We will give you the proposal according to your specific requirements. Every machine is customized to meet your needs well.
2. Are you factory or trading company?
We are the factory, we doing this line for more than 10 years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or L/C.
4. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in the third party inspection organization.
5. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service or payment by LC, guarantee your money.
6. Why we should choose your company?
We are professional in packing machines over 10 years, and we provide better after-sales service. We guarantee no risk for our deal.
