Quick Details
-
Ejector Stroke(mm):
-
150 mm
-
Ejector Force(kN):
-
77 kN
-
Theoretical Shot Volume(cm³):
-
1017 cm³
-
Injection Rate (g/s):
-
402 g/s
-
Injection Weight (g):
-
905 g
-
Screw diameter (mm):
-
68 mm
-
Weight (KG):
-
9700 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
550 mm
-
Model Number:
-
KII1600
-
Brand Name:
-
Powerjet
-
Power (kW):
-
150 kW
-

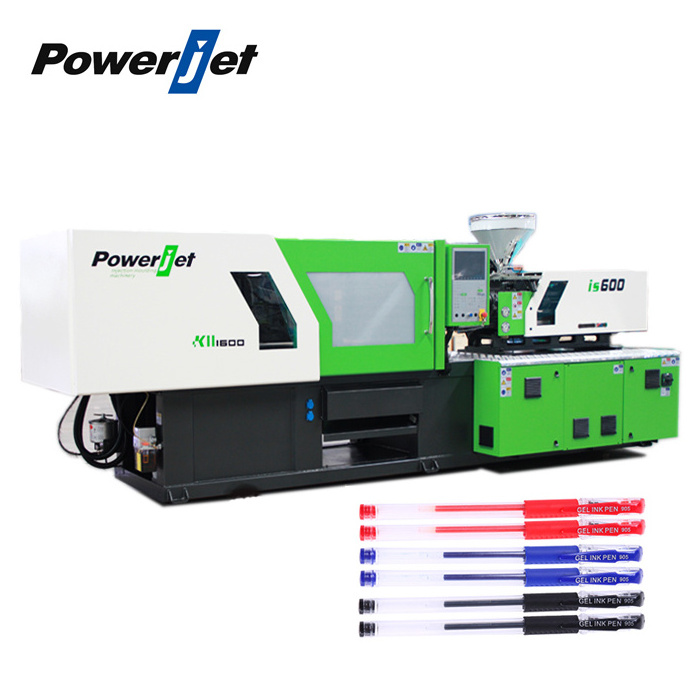

Product name:
-
high precision injection molding machine
-
Opening Stroke:
-
550mm
-
Function:
-
Plastic Injection Molding Machinery
-
Keyword:
-
ball pen making machine
-
Application:
-
bottle cap,phone case, car bumper, ect.
-
Motor:
-
Servo Energy Saving Motor or Variable pump
-
Machine Color:
-
Green+black
-
Machiner Dimensions(m):
-
6.1*1.61*1.85m
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
1160mm
-
Distance between Tie Bars(Height)(mm):
-
1160mm
-
Mold Height(mm):
-
280 - 610 mm
-
Ejector Stroke(mm):
-
150 mm
-
Ejector Force(kN):
-
77 kN
-
Theoretical Shot Volume(cm³):
-
1017 cm³
-
Injection Rate (g/s):
-
402 g/s
-
Injection Weight (g):
-
905 g
-
Screw diameter (mm):
-
68 mm
-
Weight (KG):
-
9700 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
550 mm
-
Model Number:
-
KII1600
-
Brand Name:
-
Powerjet
-
Power (kW):
-
150 kW
-
Product name:
-
high precision injection molding machine
-
Opening Stroke:
-
550mm
-
Function:
-
Plastic Injection Molding Machinery
-
Keyword:
-
ball pen making machine
-
Application:
-
bottle cap,phone case, car bumper, ect.
-
Motor:
-
Servo Energy Saving Motor or Variable pump
-
Machine Color:
-
Green+black
-
Machiner Dimensions(m):
-
6.1*1.61*1.85m
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
| LAMPING UNIT | Clamping force | KN | 1600 |
| Opening stroke | mm | 550 | |
| Max.datlight | mm | 1160 | |
| Platen size | mm | 850*850 | |
| Space between bars | mm | 610*610 | |
| Max.mold height | mm | 610 | |
| Min.mold height | mm | 280 | |
| Ejector stroke | mm | 150 | |
| Ejector force | KN | 77 | |
| INJECTION UNIT | Screw diameter | mm | 68 |
| Screw L/D Ratio | L/D | 19 | |
| Injection Pressure | MPa | 145 | |
| Shot volume | cm 3 | 1017 | |
| Shot weight (ps) | g | 905 | |
| oz | 31.9 | ||
| Injection rate | g/s | 402 | |
| Screw stroke | mm | 280 | |
| Screw speed | rpm | 236 | |
| POWER UNIT | Hydraulic system Pressure | MPa | 17.5 |
| Pump motor power | KW | 30/53.3 | |
| Heater power | KW | 13.8 | |
| GENERAL | Oil tank capacity | L | 400 |
| Machine weight | T | 9.7 | |
| Machine dimensions (L*W*H) | m | 6.1*1.61*1.85 |
And we also focus on the development of special injection molding machines according to the customer's need, like machines for
PET preform, PVC/PPR fitting, thin-walled product, silicone, batelite, and multi-material products
, and also provide the turnkey projects for the customers.
