Quick Details
-
Maximum Working Pressure:
-
45bar
-
Voltage:
-
220
-
Weight:
-
3.6 KG
-
Dimension(L*W*H):
-
317*78*47mm
-
Power:
-
37KW
-
Working Temperature Range:
-
-30~225℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
power:
-
47KW
-
Type:
-

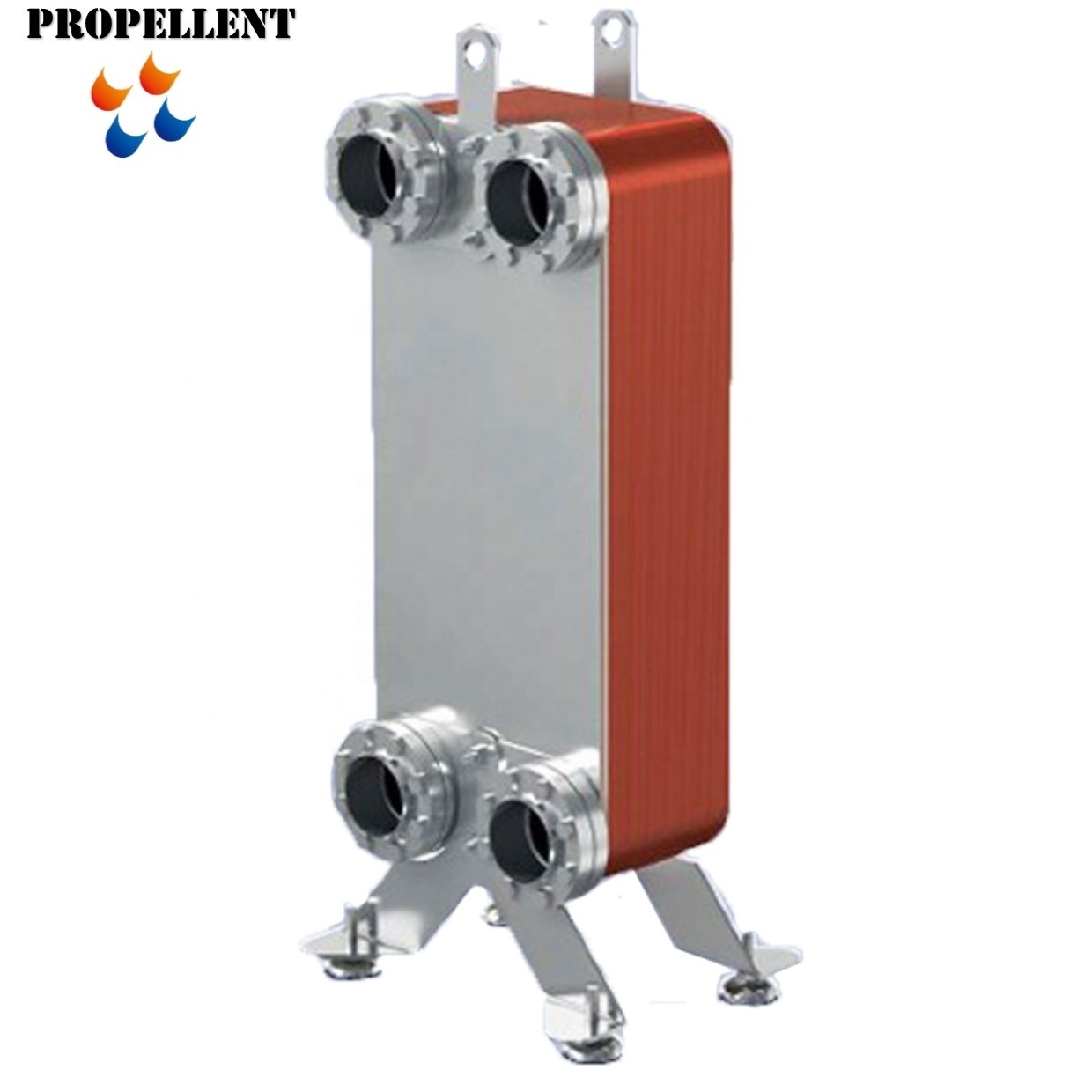

Welded brazed plate heat exchanger
-
Frame material:
-
Copper
-
Plate Material:
-
Stain Steel 304/316
-
Area:
-
0.7m2
-
Design Pressure:
-
1.2MPa~4.5MPa
-
Design Temperature:
-
-195~225
-
Plate thickness:
-
0.4mm~1.0mm
-
Packing:
-
Woodern Box
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Propellent
-
Model Number:
-
PLB3-026-20D
-
Maximum Working Pressure:
-
45bar
-
Voltage:
-
220
-
Weight:
-
3.6 KG
-
Dimension(L*W*H):
-
317*78*47mm
-
Power:
-
37KW
-
Working Temperature Range:
-
-30~225℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
power:
-
47KW
-
Type:
-
Welded brazed plate heat exchanger
-
Frame material:
-
Copper
-
Plate Material:
-
Stain Steel 304/316
-
Area:
-
0.7m2
-
Design Pressure:
-
1.2MPa~4.5MPa
-
Design Temperature:
-
-195~225
-
Plate thickness:
-
0.4mm~1.0mm
-
Packing:
-
Woodern Box
Product Description
Feature
parameters
| Brazed Plate Heat Exchanger | |
| Material: | Stainless Steel, Copper or Nickel |
| Length: | 320mm |
| Width: | 160mm |
| height: | 620mm |
| Design Pressure: | 3.0/4.5MPa |
Related Products 1
propellent product
| Product Model | Height | Width | Thickness | Vertical Pitch | Horizontal Pitch | Single Channel Volume(L) |
| (mm) | (mm) | (mm) | (mm) | (mm) | ||
| PLQ014 | 208 | 78 | 2.30N+9 | 170 | 40 | 0.02 |
| PLQ020 | 317 | 78 | 2.30N+9 | 280 | 42 | 0.04 |
| PLQ026 | 310 | 111 | 2.40N+9 | 250 | 50 | 0.05 |
| PLQ030 | 325 | 95 | 1.55N+9 | 269 | 39 | 0.03 |
| PLQ050A | 525 | 111 | 2.40N+9 | 466 | 50 | 0.09 |
| PLQ050B | 525 | 111 | 2.40N+9 | 466 | 50 | 0.09 |
| PLQ060 | 526 | 119 | 2.30N+9 | 470 | 63 | 0.11 |
| PLQ095A | 616 | 191 | 2.40N+11 | 519 | 92 | 0.21 |
| PLQ095B | 616 | 191 | 2.80N+11 | 519 | 92 | 0.25 |
| PLQ100A | 490 | 250 | 2.20N+11 | 400 | 155&166 | 0.19 |
| PLQ100B | 490 | 250 | 2.85N+11 | 378 | 138 | 0.25 |
| PLQ110 | 528 | 246 | 2.36N+13 | 456 | 174 | 0.21 |
| PLQ190 | 696 | 307 | 2.65N+11 | 567 | 179 | 0.43 |
| PLQ210 | 739 | 321 | 2.78N+13 | 628 | 232&211 | 0.41 |
| PLQ300 | 1008 | 365 | 2.62N+16 | 872 | 229 | 0.65 |
