Quick Details
-
Brand Name:
-
Inventronics
-
Model Number:
-
EUM-200S105DG EUM-200S150DG EUM-200S560DG
-
Output Frequency:
-
47-63HZ inc. 50~60Hz
-
Product Name:
-

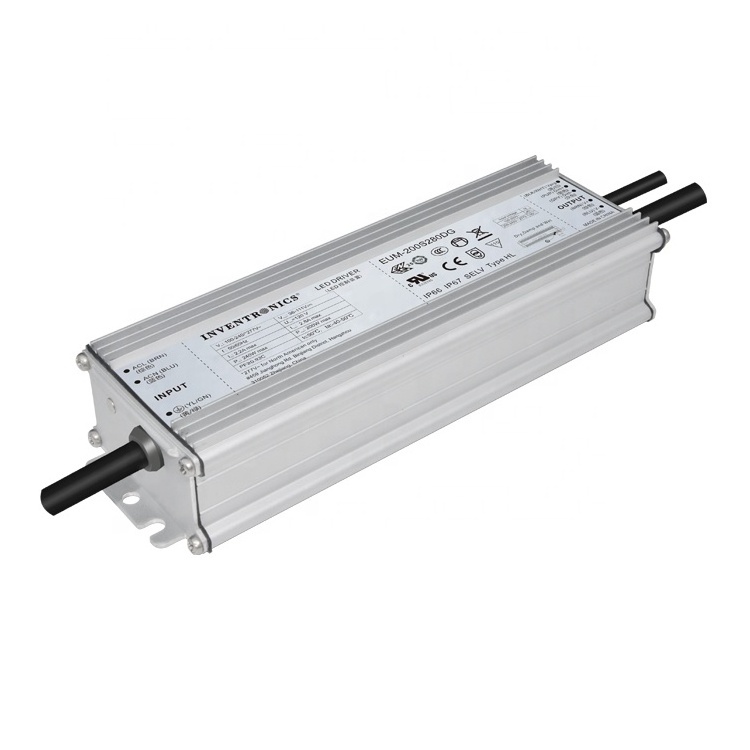

Inventronics EUM 200W IP66 IP67 Waterproof CC LED Driver Power Supply
-
Output Voltage Range:
-
95~286Vdc 67~190Vdc 36~111Vdc 18 ~ 57Vdc (20V 24V 30V 36V 48V 50V)
-
Typical Efficiency:
-
91.5%-92.5%
-
Power Factor:
-
0.99/120Vac; 0.96/220Vac
-
Dimensions:
-
7.40"x2.36"x1.44" (188x60x36.5mm), 750g
-
IP Class:
-
IP66 or IP67, ultra waterproof, can be external use
-
Input Surge Protection:
-
DM 6kV, CM 10kV
-
Features:
-
Compact size, Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
-
Certification:
-
CE ROHS cU* FCC ENEC TUV PSE BIS KCC KS
-
Warranty:
-
5 Years
-
Luminous Efficacy(lm/w):
-
150
Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
0.75
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventronics
-
Model Number:
-
EUM-200S105DG EUM-200S150DG EUM-200S560DG
-
Output Frequency:
-
47-63HZ inc. 50~60Hz
-
Product Name:
-
Inventronics EUM 200W IP66 IP67 Waterproof CC LED Driver Power Supply
-
Output Voltage Range:
-
95~286Vdc 67~190Vdc 36~111Vdc 18 ~ 57Vdc (20V 24V 30V 36V 48V 50V)
-
Typical Efficiency:
-
91.5%-92.5%
-
Power Factor:
-
0.99/120Vac; 0.96/220Vac
-
Dimensions:
-
7.40"x2.36"x1.44" (188x60x36.5mm), 750g
-
IP Class:
-
IP66 or IP67, ultra waterproof, can be external use
-
Input Surge Protection:
-
DM 6kV, CM 10kV
-
Features:
-
Compact size, Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
-
Certification:
-
CE ROHS cU* FCC ENEC TUV PSE BIS KCC KS
-
Warranty:
-
5 Years
-
Luminous Efficacy(lm/w):
-
150
Better Than Hytec LED Driver Intertek Lighting Parts Inventronics EUM 200Watt 200W Driver LED
| Adjustable Output Current Range | Full-Power Constant Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency(3) | Power Factor | Model Number(3) | |
| 120 Vac | 220 Vac | ||||||||
| 70-1050mA | 700-1050 mA | 700mA | 90 ~ 305 Vac/ 127 ~ 431Vdc | 95 ~ 286Vdc | 200W | 93.5% | 0.99 | 0.96 | EUM-200S105DG |
| 105-1500mA | 1050-1500 mA | 1050mA | 67 ~ 190 Vdc | 93% | EUM-200S150DG | ||||
| 180-2800mA | 1800-2800mA | 2100mA | 36 ~ 111 Vdc | 92.5% | EUM-200S280DG | ||||
| 350-5600mA | 350 0-5600 mA | 4200mA | 18 ~ 57 Vdc | 92% | EUM-200S560DG | ||||
