Quick Details
-
Brand Name:
-
MAYZUM
-
Model Number:
-
X-MAY05
-
Focal Length:
-
0.1% (Au≥96%)
-
Wavelength Range:
-
1ppm to 99.99%
-
Accuracy:
-
RSD ≤ 0.1%
-
Warranty:
-
2 years,life-long maintenance
-
Power supply:
-
Default as European Standard AC 100V - 240V
-
OEM:
-
yes
-
Operation manual:
-
English
-
Free shipping:
-
DHL/UPS/FEDEX/TNT/S.F.
-
Value showed:
-
Metal's karat and content
-
Detector:
-
Proportional Counter tube
-
Measurement Time:
-
10-50 Sec
-
Measurable elements:
-
Au, Ag, Pt, Pd,Cu
Quick Details
-
Size:
-
400 * 430 * 350 (mm)
-
Weight:
-
33kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MAYZUM
-
Model Number:
-
X-MAY05
-
Focal Length:
-
0.1% (Au≥96%)
-
Wavelength Range:
-
1ppm to 99.99%
-
Accuracy:
-
RSD ≤ 0.1%
-
Warranty:
-
2 years,life-long maintenance
-
Power supply:
-
Default as European Standard AC 100V - 240V
-
OEM:
-
yes
-
Operation manual:
-
English
-
Free shipping:
-
DHL/UPS/FEDEX/TNT/S.F.
-
Value showed:
-
Metal's karat and content
-
Detector:
-
Proportional Counter tube
-
Measurement Time:
-
10-50 Sec
-
Measurable elements:
-
Au, Ag, Pt, Pd,Cu
Product Description
Gold Tester Xrf,Spectrograph Factory,Precious Metal Purity Analyzer
Warranty For 2 Years
Original Manufacturer
Free Shipping For NOT Remote areas
One-to-one Remote Operation Guidance
Warm Tips:
The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.
The Principle of Energy Dispersive
X Fluorescence Spectrometer
The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.

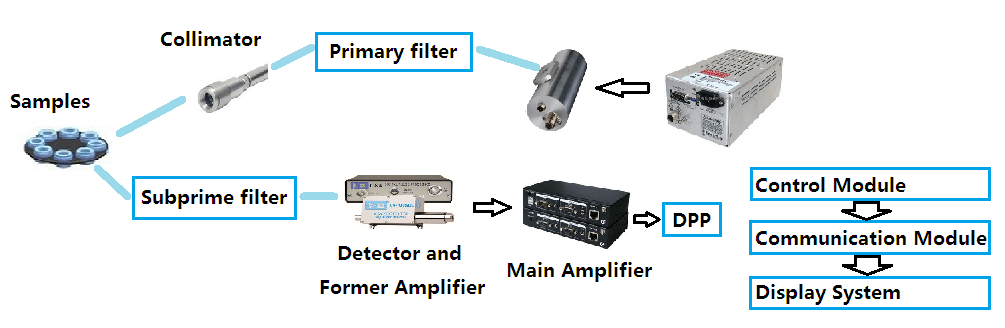

The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Specification parameters
Gold Tester Xrf,Spectrograph Factory,Precious Metal Purity Analyzer
Specification parameters of four models
|
Brand
|
MAYZUM
|
|
|
|
||||
|
Model
|
MAY05
|
MAY10
|
MAY72
|
MAY72-Pro
|
||||
|
Price
|
$5480
|
$ 9100
|
$13420
|
$19190
|
||||
|
Detector Type
|
Proportional Counter tube
|
|
Si-pin (USA)
|
SSD（USA）
|
||||
|
Multichannel Analyzer
|
Multi channel simulation
|
|
|
|
||||
|
Sample Chamber Size
|
310 *280 * 60 (mm)
|
380 *380 * 60 (mm)
|
|
|
||||
|
Test Time
|
10sec ~ 50sec
|
|
|
|
||||
|
Measuring Element
|
Au,Ag,Pt,Pd,Cu
|
Au, Ag, Pt, Pd, Cu, Mo, Mn ,Ga,Co ,Ir(Ir≥5%)
|
72 elements from sodium (Na) touranium (U) between all the elements
|
|
||||
|
Analysis Range
|
1ppm to 99.99%
|
|
|
|
||||
|
Accuracy
|
0.1% (Au≥96%)
|
0.1% (Au≥96%)
|
0.03% (A≥96%)
|
0.01% (Au≥96%)
|
||||
|
Sample Form
|
Solid, powder, liquid
|
|
|
|
||||
|
Tube Voltage
|
5KV ~ 50KV
|
|
|
|
||||
|
High Voltage Power Supply
|
0 ~ 50KV
|
|
|
|
||||
|
Camera
|
HD camera
|
|
|
|
||||
|
Filters
|
Selectable customized switches
|
|
|
|
||||
|
Analysis Software
|
Qualitative and quantitative analysis software
|
|
|
|
||||
|
External Dimensions
|
400 * 430 * 350(mm)
|
480 * 480 * 390 (mm)
|
|
|
||||
|
Weight
|
33Kg
|
38Kg
|
|
|
||||
|
Instruments Environmental Requirements
|
|
|
|
|
||||
|
Ambient Temperature
|
-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
|
|
|
|
||||
|
Relative Humidity
|
15% ~ 90%
|
|
|
|
||||
|
Power Requirements
|
AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby
|
|
|
|
||||
Advantages & Characteristics

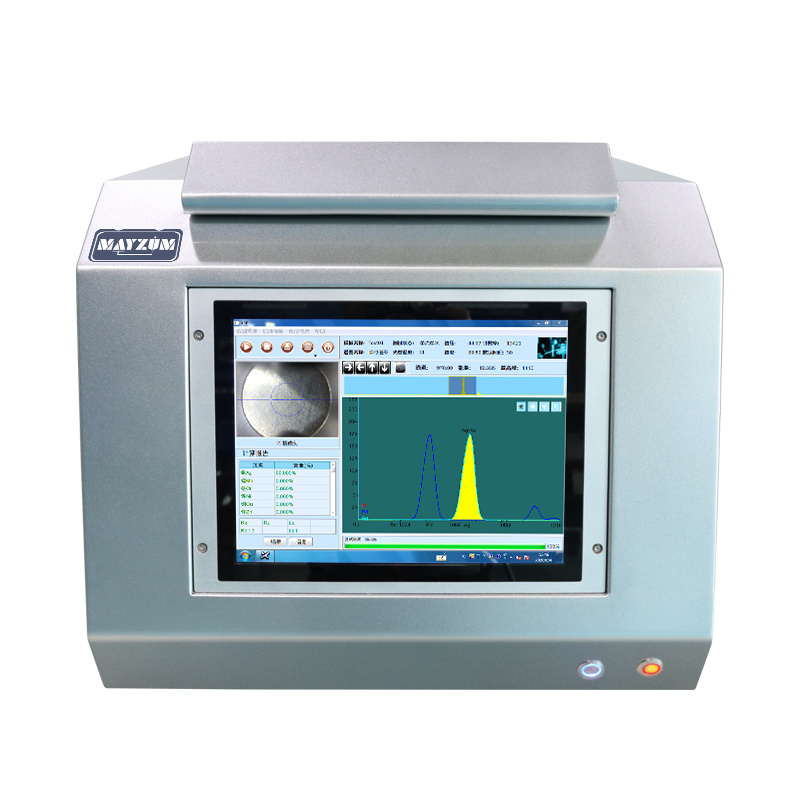

Detailed Images
Gold Tester Xrf,Spectrograph Factory,Precious Metal Purity Analyzer
Screenshot of software interface
Applications&Certifications
Applications
Banks; Jewelry industry: Jewelry retailers, jewelry manufacturers;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;
Certification
Packaging & Shipping & Payment
Packaging
Packing size: 400 * 430 * 350(mm)
Packaging Details: Standard Export Crate Packing, Filling with soft foam
Packaging Details: Standard Export Crate Packing, Filling with soft foam
Shipping
Delivery time is about 2-3 work days after payment.
Shipping time are about 3-7 work days.
Note:Our first choice is DHL.If you have specified requirement , please inform us before the order.
Shipping time are about 3-7 work days.
Note:Our first choice is DHL.If you have specified requirement , please inform us before the order.
Payment
Full payment before delivery
The best payment way is alipay. Other common payment like T/T, Western Union, Paypal are available.
The best payment way is alipay. Other common payment like T/T, Western Union, Paypal are available.
