Quick Details
-
Brand Name:
-
Forui
-
Dimension(L*W*H):
-
600.00cm * 250.00cm * 250.00cm
-
Weight:
-
28000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Carbon Steel
-
Function:
-
Screening\separation\sorting\sieving
-
Advantage:
-
Long Working Life
-
Feature:
-
Simple Operation
-
Capacity:
-
200(T/H)
-
Feeding Size:
-
<250(mm)
-
Rotate Speed:
-
12(R/Min)
-
Certification:
-
CE, ISO9001:2015
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Forui
-
Dimension(L*W*H):
-
600.00cm * 250.00cm * 250.00cm
-
Weight:
-
28000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Carbon Steel
-
Function:
-
Screening\separation\sorting\sieving
-
Advantage:
-
Long Working Life
-
Feature:
-
Simple Operation
-
Capacity:
-
200(T/H)
-
Feeding Size:
-
<250(mm)
-
Rotate Speed:
-
12(R/Min)
-
Certification:
-
CE, ISO9001:2015
Product Display
The trommel screen is a screening equipment for environmental protection engineering technology, household waste, aged waste treatment, decoration waste, comprehensive waste treatment, and other industries. It has the advantages of simple structure, convenient operation, high screening efficiency, and is suitable for screening materials of various properties. According to the specific requirements of the screened materials, the screened materials are 30mm and 80mm respectively.

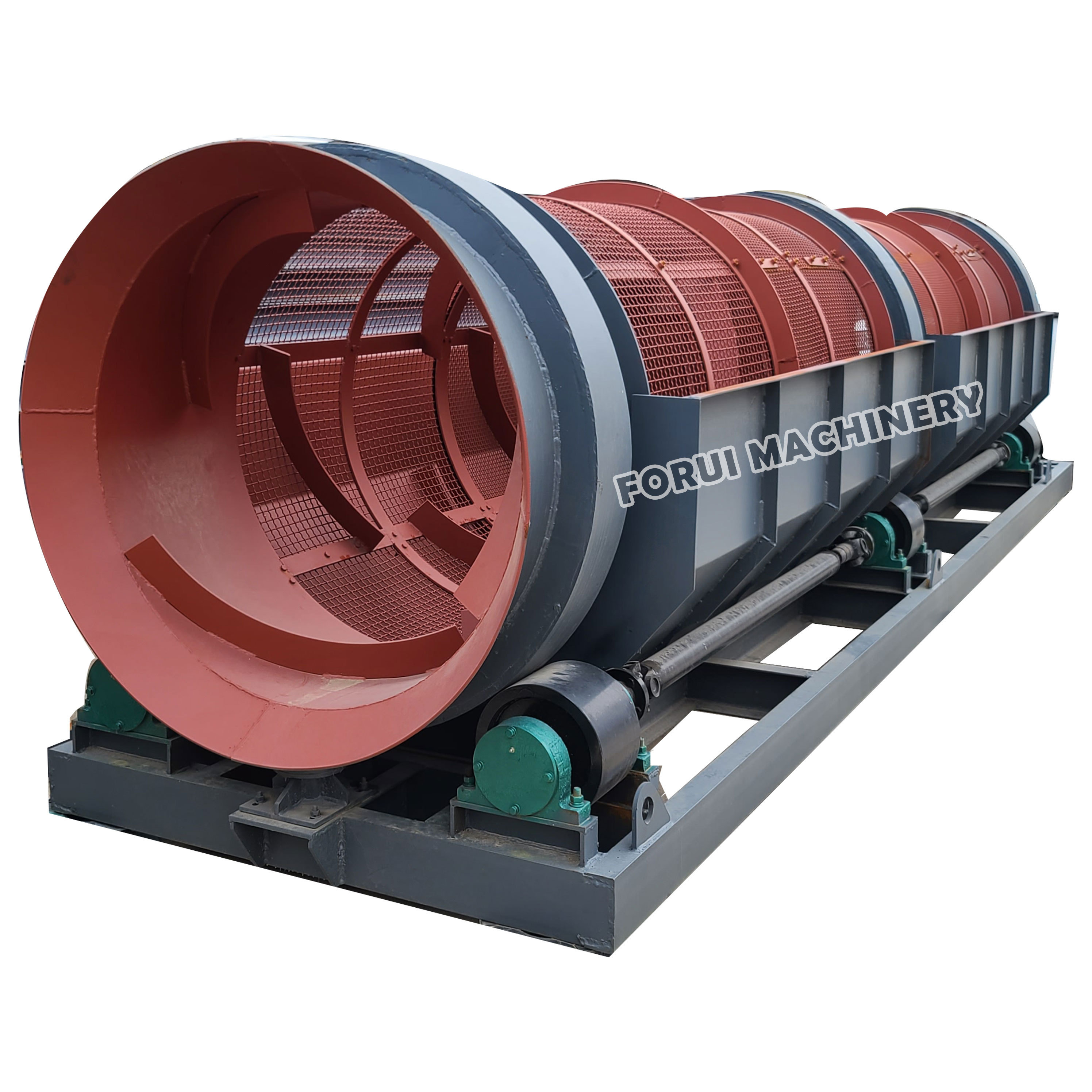

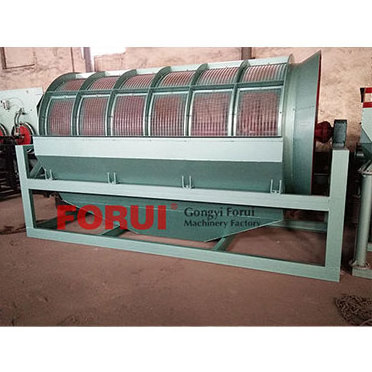

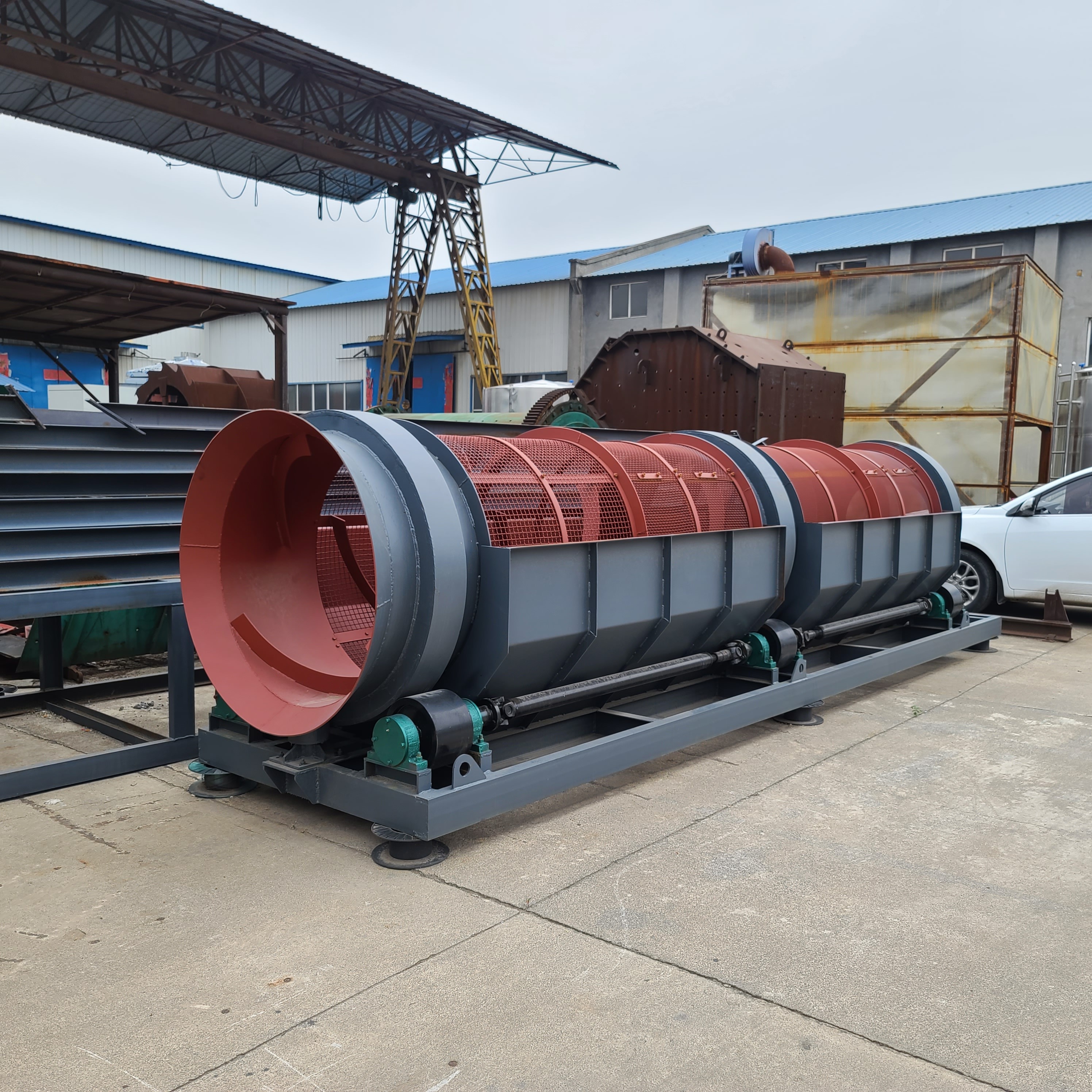

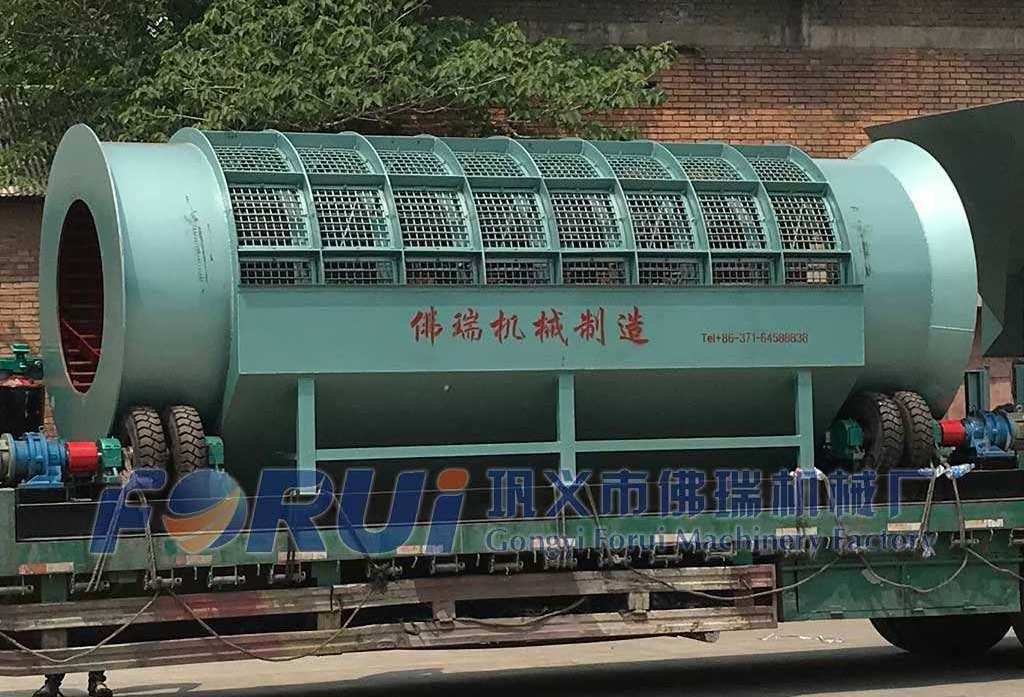

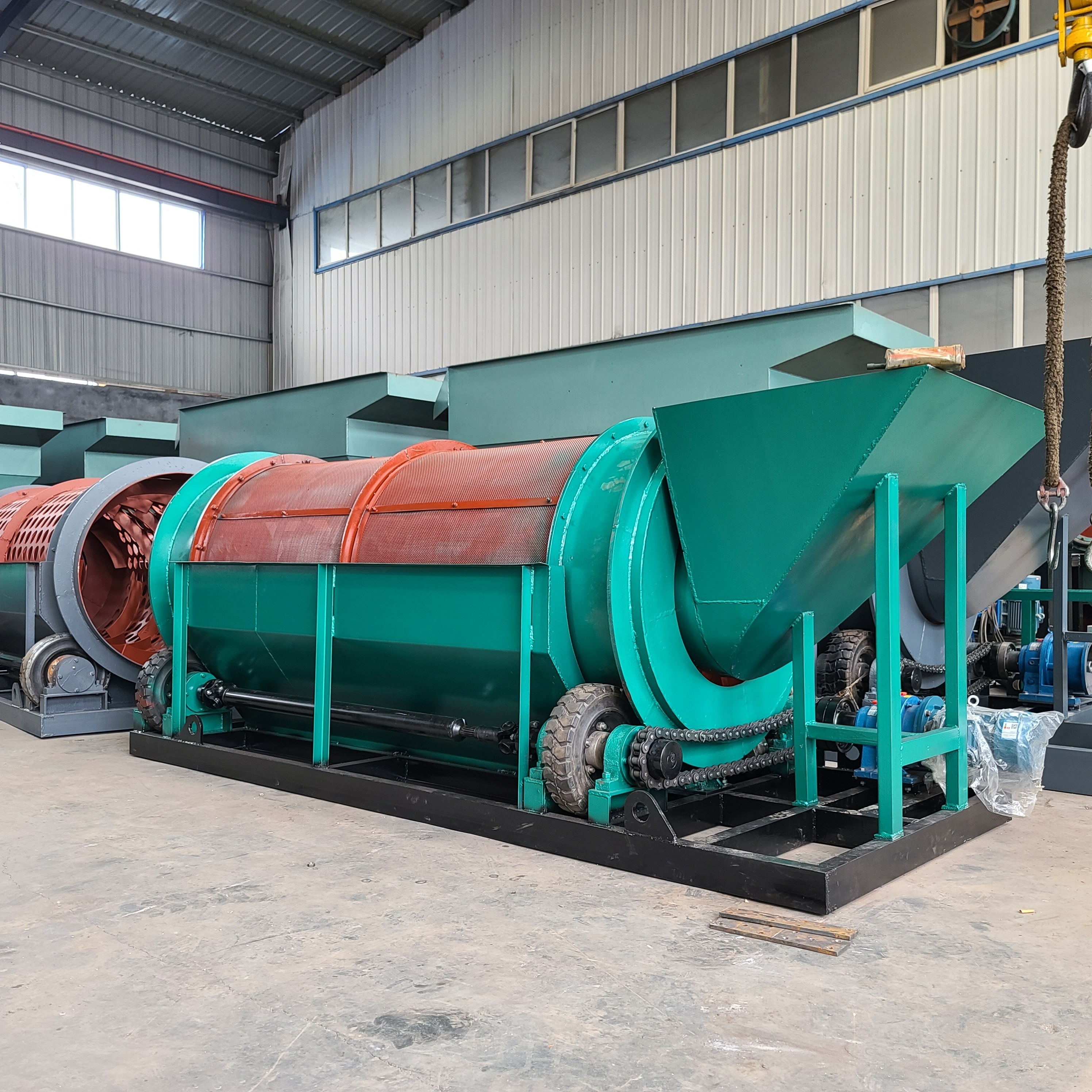

Forui trommel screen
How Trommel Screen Work
• The material that has to be screened is introduced into the upper end of the drum;
• The revolving movement of the drum, coupled to its inclination forward, allows to make the materials advance towards the other end of the drum;
• The revolving movement shakes the material, making it hit repeatedly the grids of the drum;
•Larger materials (larger than the holes of the grids) go forward, while the smaller ones fall through the grids;
•In the frame of the drum more than one layer of grids may be fixed, in order to obtain more fractions of materials with different dimensions.
Specification
|
Model
|
Power
(kw)
|
Drum diameter
(mm)
|
Drum length
(mm)
|
Screen size
(mm)
|
Dimension
(mm)
|
|
TS1015
|
3
|
1000
|
1500
|
Customization
|
3000*1400*2145
|
|
TS1020
|
3
|
1000
|
2000
|
|
3460*1400*2145
|
|
TS1225
|
4
|
1200
|
2500
|
|
4146*1600*2680
|
|
TS1530
|
5.5
|
1500
|
3000
|
|
4460*1900*2820
|
|
TS1545
|
7
|
1500
|
4500
|
|
5960*1900*3080
|
|
TS1848
|
11
|
1800
|
4800
|
|
6500*2300*4000
|
|
TS2055
|
15
|
2000
|
5500
|
|
7500*2500*4000
|
trommel screen application
Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc
Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks, waste plastics, waste metal, waste bamboo and wood, industrial waste.
All of these sorted waste can be recycled after reprocessing.
Plastic Waste
Municipal waste
Industrial Waste
