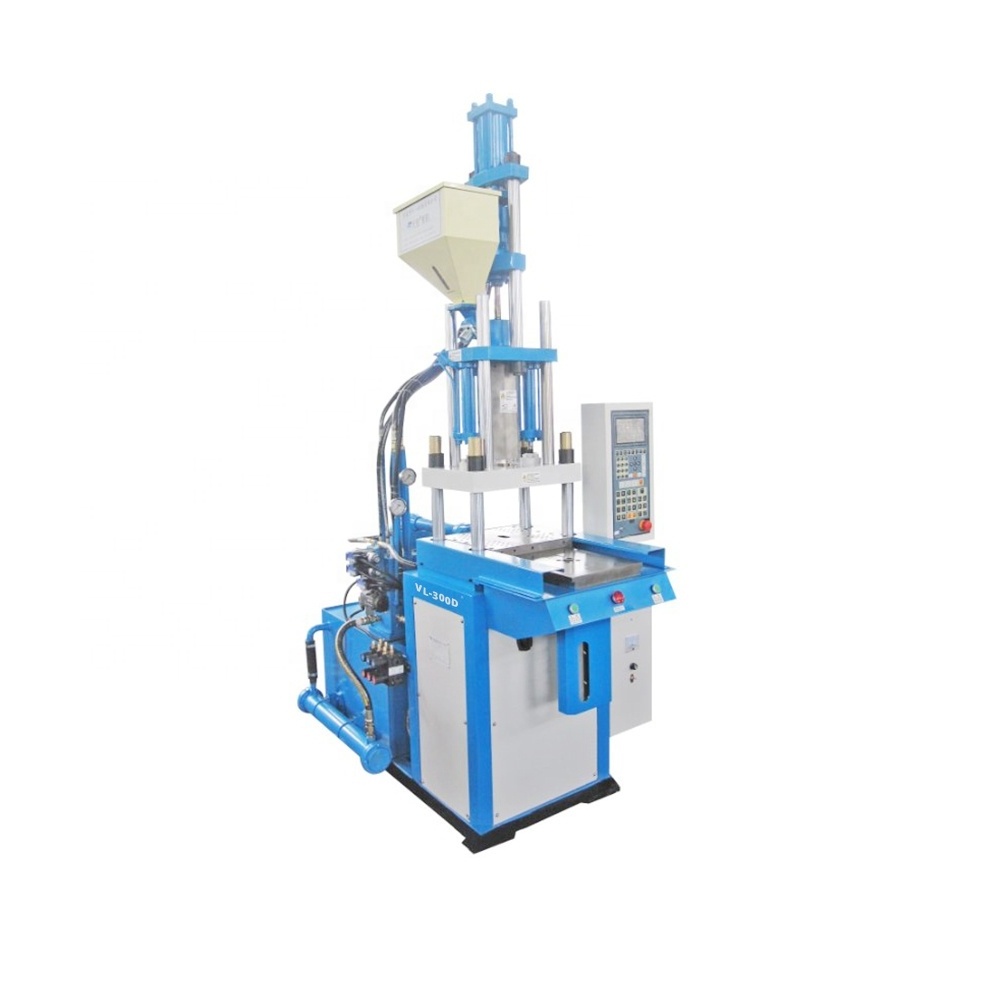

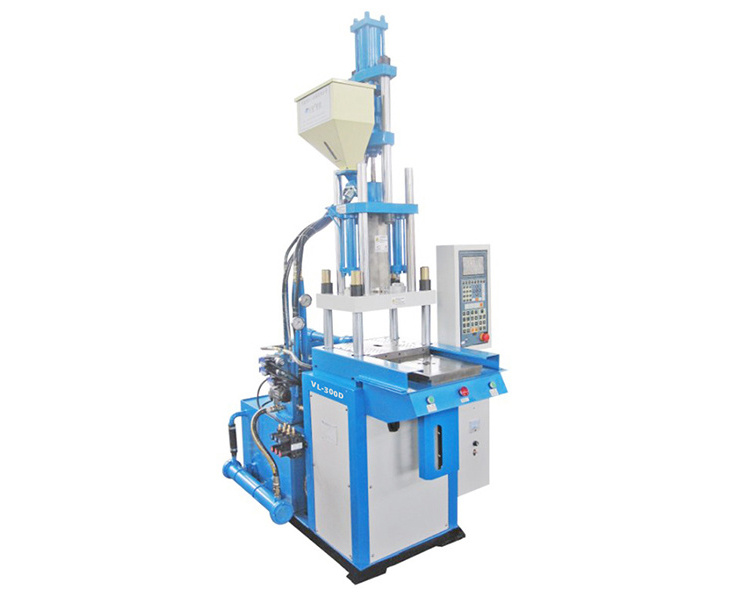

Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine
Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine

Vertical Injection Molding Machine VL-300D Plastic Injection Molding Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $15000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Screw Diameter:
25/28/32mm
Platen Size:
520*370mm
Min. Mould Height:
100/140/160/200mm
Max. Mould Height:
280/320/340/380mm
System Pressure:
140kg/cm2
Pump Motor Power:
5.5(4)kw
Heater Power:
3.8kw
Machine Weight:
1.3 tons
Machine Dimensions:
1.5*0.9*2.3m
Opening Stroke:
180mm
Injection Rate:
58cm3/sec 73cm3/sec 95cm3/sec
Injection Weight:
49/60/79g
Certification:
CE ISO9001 Patent Certificate
Power:
9.3kw

Quick Details

Place of Origin:
Zhejiang, China
Plastic Type:
Thermoplastic
Automatic:
Yes
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Screw Diameter:
25/28/32mm
Platen Size:
520*370mm
Min. Mould Height:
100/140/160/200mm
Max. Mould Height:
280/320/340/380mm
System Pressure:
140kg/cm2
Pump Motor Power:
5.5(4)kw
Heater Power:
3.8kw
Machine Weight:
1.3 tons
Machine Dimensions:
1.5*0.9*2.3m
Opening Stroke:
180mm
Injection Rate:
58cm3/sec 73cm3/sec 95cm3/sec
Injection Weight:
49/60/79g
Certification:
CE ISO9001 Patent Certificate
Power:
9.3kw
Product Description
Details
Item

Unit
Model



VL-300D






Injection system
Screw Diameter
mm
25
28
32
Injection Pressure
kg/cm 2
1814
1446
1107
Shot Volume(Theoratical)
cm 3
54
67
88
(PS) Shot Weight
g
49
60
79

oz
1.7
2.1
2.8
Injection Rate
cm 3 /sec
58
73
95
Screw Stroke
mm
110
Temperature Section
-
3+1





Clamping system
Clamping Force
tons
26
Platen Size
mm
520*370
Space between Tie Bars
mm
360*205
Min. Mould Height
mm
100/140/160/200
Opening Stroke
mm
180
Max. Mould Height
mm
280/320/340/380
Ejector Force
tons
1.7
Ejector Stroke
mm
55

Sliding system
Sliding Strok
mm
350
Single Sliding platen Size
mm
350*355




Others
System Pressure
kg/cm 2
140
Pump Motor Power
kw
5.5(4)
Heater Power
kw
3.8
Total Power
kw
9.3
Machine Weight
tons
1.3
Machine Dimensions
m
1.5*0.9*2.3

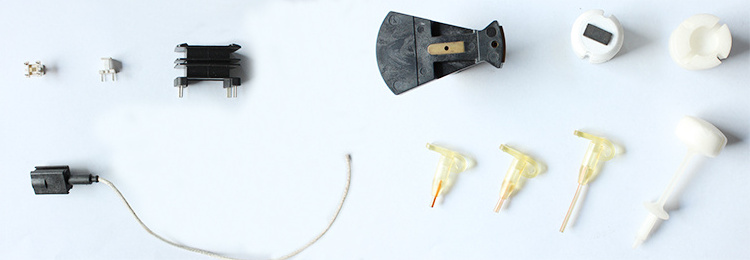

Application
