Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RC
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
460*420*600mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
300
-
Core Components:
-
control system
-
Accuracy:
-
0.03mm
-
Working area:
-
300*300*80mm
-
Drive system:
-
stepper motors and drivers
-
Spindle:
-
1.5KW water-cooled spindle
-
Transmission:
-
Taiwan TBI rolling ball screw
-
Guide rail:
-
HIWIN linear square guide rail
-
Machine type:
-
mini cnc router machine
-
Power(W):
-
1500
-
Certification:
-
CE
-
model:
-
3030
Quick Details
-
Working Table Size(mm):
-
300x300
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RC
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
460*420*600mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
300
-
Core Components:
-
control system
-
Accuracy:
-
0.03mm
-
Working area:
-
300*300*80mm
-
Drive system:
-
stepper motors and drivers
-
Spindle:
-
1.5KW water-cooled spindle
-
Transmission:
-
Taiwan TBI rolling ball screw
-
Guide rail:
-
HIWIN linear square guide rail
-
Machine type:
-
mini cnc router machine
-
Power(W):
-
1500
-
Certification:
-
CE
-
model:
-
3030

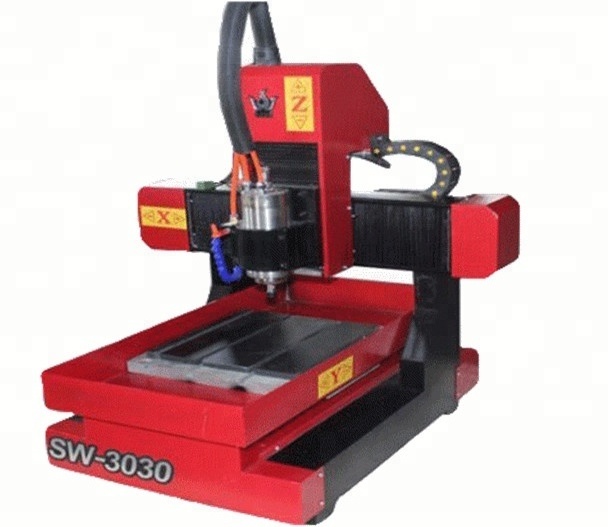

| Model | SW-6090 | SW-3030 | SW-4040 | SW-6060 |
| Working area | 600*900mm | 300*300mm | 400*400mm | 600*600mm |
| Working mode | Gantry moving | Table moving | Table moving | Table moving |
| Guide rail | round rail or Taiwan HIWIN linear square guide raill | |||
| Transmission | Taiwan TBI rolling ball screw | |||
| Drive system | Stepper or servo motors and drivers | |||
| Spindle | 1.5/2.2/3.2KW water or air cooled spindle | |||
| Spindle rotating speed | 6000-24000rpm | |||
| Reposition accuracy | 0.03mm | |||
| Max. travlling speed | 20m/min | |||
| Max. working speed | 15m/min | |||
| Power supply | AC220V 50HZ | |||
| Machine size | 1500*1100*600mm | 400*400*600mm | 600*600*600mm | 800*800*600mm |
