Quick Details
-
Place of Origin:
-
Zhejiang, China, Ningbo
-
Brand Name:
-
HS
-
Model Number:
-
JQX107JB
-
Name:
-

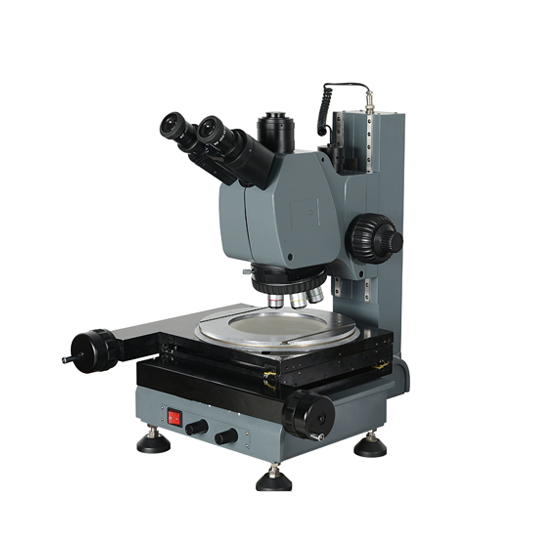

JQX107JB Trinocular Precision Measuring Microscope
-
Certificate:
-
CE ISO
Quick Details
-
Warranty:
-
0
-
Theory:
-
Precision Measuring Microscope
-
Drawtube:
-
Trinocular
-
Place of Origin:
-
Zhejiang, China, Ningbo
-
Brand Name:
-
HS
-
Model Number:
-
JQX107JB
-
Name:
-
JQX107JB Trinocular Precision Measuring Microscope
-
Certificate:
-
CE ISO
Product Description
|
Specification
|
|
|
||
|
Optical system
|
infinite optical system
|
|
||
|
Viewing Head
|
Positive Compensation free head inclined at 30° interpupilary distance adjustable( 50mm-75mm),0.3X CCD adapter
|
|
||
|
Eyepiece
|
Wide field Plan WF10×/22mm
|
|
||
|
|
WF10×/20mm,crosshair with reticule0.1mm
|
|
||
|
Objective
|
infinite Lone Working distance plan objectives
5X/0.15（W.D.14.47mm） 10X/0.25（W.D.16.01mm） 20X/0.40（W.D.10.5mm） 50X/0.55（W.D.5.1mm） |
|
||
|
Nosepiece
|
Six hole Nosepiece with DIC jack
|
|
||
|
Stage
|
Stage Size:250mm x 250mm
(Glass Stage Size:Ф148mm) |
|
||
|
|
Measuring Range:50mm x 50mm
|
|
||
|
|
Measuring accuracy:≤(3+L/25) um
(L represents length to be measured) |
|
||
|
Focusing
|
Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm
Z direction lifting range：150mm |
|
||
|
Light Source
|
Reflecting illumination,Kohler illumination LED 5V/3W,AV85V-230V,brightness adjustable
Transmitted illumination Telecentric Lighting,LED5V/3W,AC85V-230V,brightness adjustable |
|
||
|
Checking Tool
|
0.01mm Micrometer
|
|
||
|
Optional Accessory
|
Eyepiece：WF15X/17mm、WF20X/12.5mm
|
|
||
|
|
infinite Long working distance plan objective 80X/0.70(W.D.3.1mm)\100X/0.80(W.D.3.01mm)
|
|
||
|
|
Two-dimensional measurement software
|
|
||
|
|
Professional metallurgical image analysis software
1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega piexels CMOS digital camera eyepiece |
|
||
|
|
Photography attachment and CCD C-mount:
0.5X、0.57X、0.75X、1X |
|
||
|
|
Micrometer eyepiece
|
|
||
|
|
CCD Camera,colour1/3 high resolution 700 TV lines
|
|
||
|
|
Various Industrial Camera
|
|
||
