Quick Details
-
Rated Voltage:
-
3.3V
-
Coil Resistance:
-
10Ω±10%
-
Step angel:
-
18
Quick Details
-
Phase:
-
2
-
Type:
-
Permanent Magnet
-
Place of Origin:
-
Jiangsu, China
-
Rated Voltage:
-
3.3V
-
Coil Resistance:
-
10Ω±10%
-
Step angel:
-
18

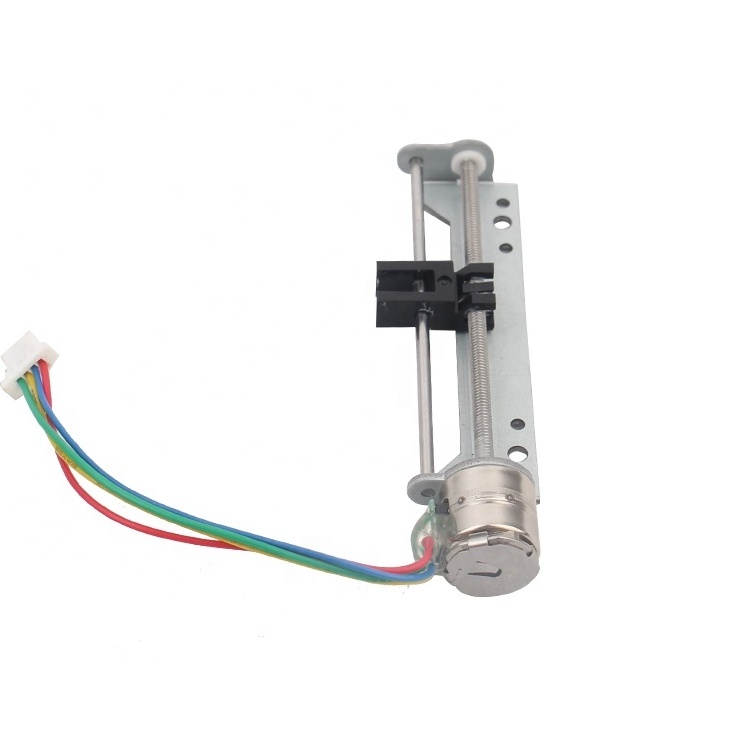

| PRODUCT NAME | 10MM MICROLINEAR STEPPER MOTOR |
| MODEL | VSM10198 |
| MAX. STARTING FREQUENCY | 1000 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 3.5gf-cm min. (AT 500 PPS , 3.3V DC) |
| PULL OUT TORQUE | 4.5gf-cm min. (AT 500 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 300 V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 50 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -20 ~+70 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
