Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Dimension(L*W*H):
-
1220*650*960mm
-
Weight (KG):
-
85 KG
-
Product name:
-

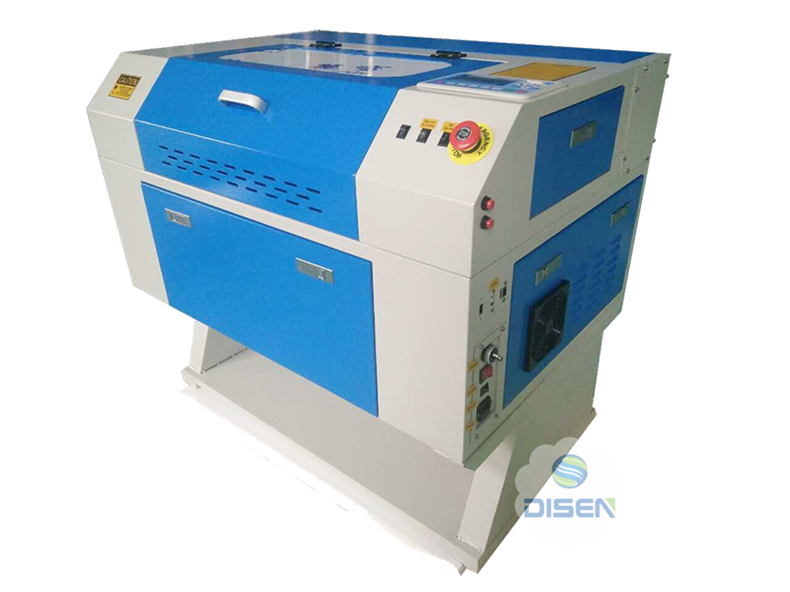

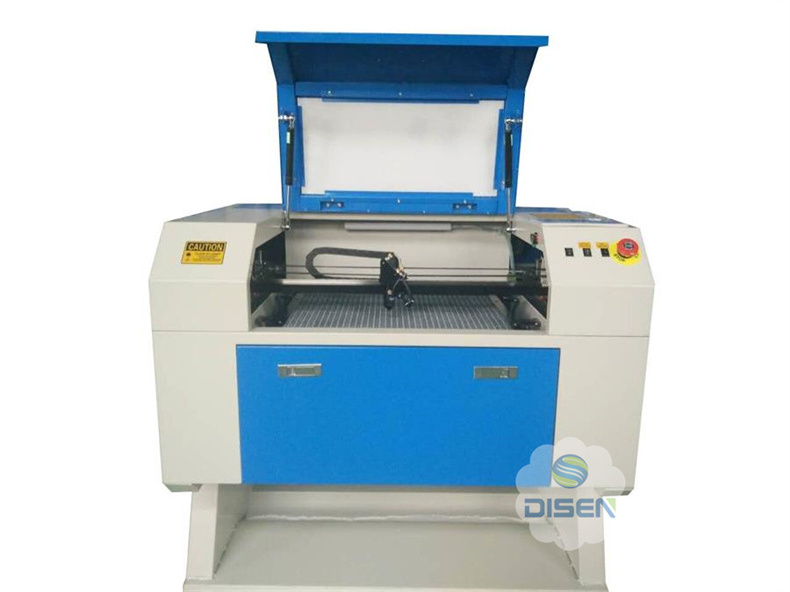

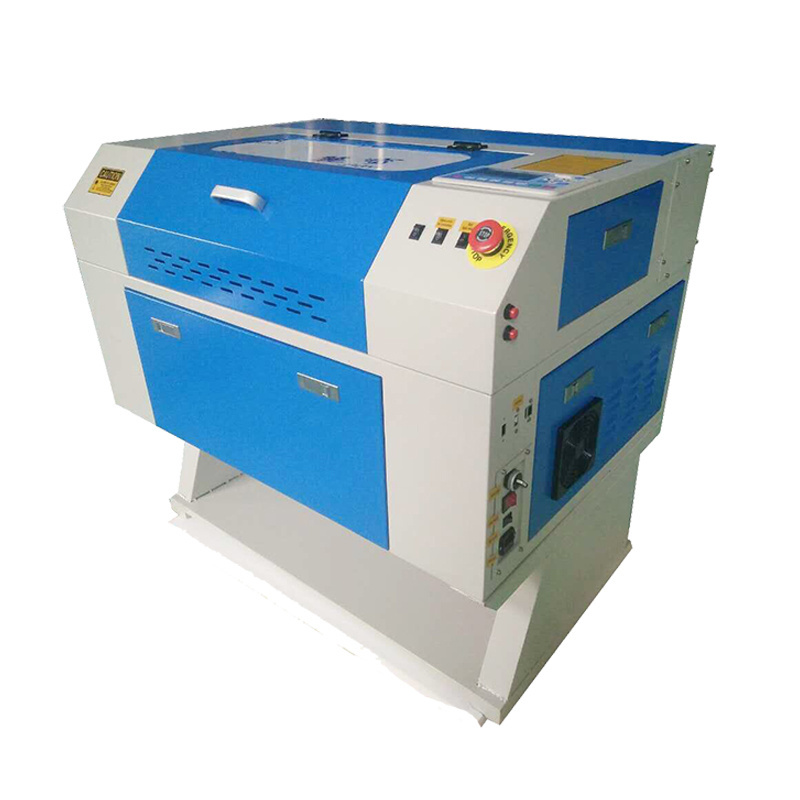

5030 Laser Engraving Machine
-
Keywords:
-
engraving laser machine
-
Type:
-
laser engraving and cutting machine
-
Name:
-
co2 laser engraving machine
-
Working Area:
-
500*300mm
-
Resolution Rate:
-
±0.05mm
-
Minimum Character:
-
English 1X1 mm
-
Controlling Software:
-
coreldraw, autocad, artcut, photoshop
-
Laser Power:
-
50/60W (OPTIONAL)
-
Positioning Accuracy:
-
≤0.01mm
Quick Details
-
Engraving Area:
-
600mm*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1-6000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Dimension(L*W*H):
-
1220*650*960mm
-
Weight (KG):
-
85 KG
-
Product name:
-
5030 Laser Engraving Machine
-
Keywords:
-
engraving laser machine
-
Type:
-
laser engraving and cutting machine
-
Name:
-
co2 laser engraving machine
-
Working Area:
-
500*300mm
-
Resolution Rate:
-
±0.05mm
-
Minimum Character:
-
English 1X1 mm
-
Controlling Software:
-
coreldraw, autocad, artcut, photoshop
-
Laser Power:
-
50/60W (OPTIONAL)
-
Positioning Accuracy:
-
≤0.01mm
Product Description
Specification
|
Model
|
50*30cm laser engraving & cutting machine
|
|
Laser power
|
50/60W (OPTIONAL)
|
|
Laser Type
|
CO2 Sealed-off Glass-tube laser
|
|
Power supply
|
AC220V +/- 10%, 50HZ/AC110V+/- 10%, 60Hz
|
|
Max. Engraving size
|
500 * 300mm
|
|
Engraving speed
|
0-5000mm/sec.
|
|
Cutting speed
|
0-300mm/sec.
|
|
Platform
|
Up-down platform/Fixed platform
|
|
Locating Precision
|
<0.01mm
|
|
Total power
|
<1000W
|
|
Number of Hanged Line
|
60 lines
|
|
Min. shaping character
|
Character 2x2mm, Letter 1x1mm
|
|
Operating Temperature
|
5℃-35℃
|
|
Resolution
|
<4500dpi
|
|
Control Configuration
|
DSP
|
|
System Environment
|
WINDOWS2000/WINDOWS XP/Vista/Win7
|
|
Type of Cooling
|
water-cooling and protection system
|
|
Graphic Format Supported
|
ALL FORMTS RECOGNIZABLE BY CORELDRAW, AUTOCAD
|
|
Cutting Thickness
|
0-6mm (Depends on different materials)
|
|
Cut by color separation
|
reaches 256 colors to cut
|
|
Water-break protection
|
Yes
|
|
Gradient Engraving
|
Yes, gradient adjustable
|
|
Machine Weight
|
85 kgs (187 lbs)
|
|
Machine Dimension
|
1220*650*960mm
|
|
Packing Dimension
|
1320*750*1060mm (41.2*25.9*35.6")
|
|
Gross Weight
|
100 kgs (220 lbs)
|
|
Optional Parts
|
Up-down worktable, Rotary attachment, Autofocus, Water Chiller.
|
Applicable Material
Garment, leather, toys, cloth, crafts, mould, wood and bamboo, advertising, packaging and printing, paper products, etc
