- Product Details
- {{item.text}}
Quick Details
-
Protection Level:
-
IP4X
-
Rated voltage:
-
40.5kV
-
Rated current:
-
2500A
-
Rated frequency:
-
50Hz
-
Breaking capacity:
-
31.5kA
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Original
-
Model Number:
-
SecoCube-40.5kV/T2500A-31.5kA
-
Protection Level:
-
IP4X
-
Rated voltage:
-
40.5kV
-
Rated current:
-
2500A
-
Rated frequency:
-
50Hz
-
Breaking capacity:
-
31.5kA
| Standard | Pro-environment | |||
| Rated Voltage | kV | 40.5 | 40.5 | |
| Rated power frenquency withstand voltage(1min) | To earth/phase to phase | kV | 95 | 95 |
| Across isolating distance | kV | 118 | 118 | |
| Rated lightning impulse withstand voltage(1.2/50μs) | To earth/phase to phase | kV | 185 | 185 |
| Across isolating distance | kV | 215 | 215 | |
| Rated Frequency | Hz | 50 | 50 | |
| Rated current | A | 1250 | 1250/2500 | |
| Single capacitor bank breaking capacity | A | - | 400 | |
| Rated cable charging breaking current | A | 50 | 50 | |
| Rated shortcircuit breaking current | kA | 25 | 31.5 | |
| Rated short time withstand current(peak) | kA | 63 | 80 | |
| Rated short-time withstand current | kA/s | 25/4s | 31.5/3s | |
| Rated peak withstand current | kA | 63 | 80 | |
| Protection degree of the enclosure | IP4X | |||
| Protection degree of the Gas tank | IP65 | |||

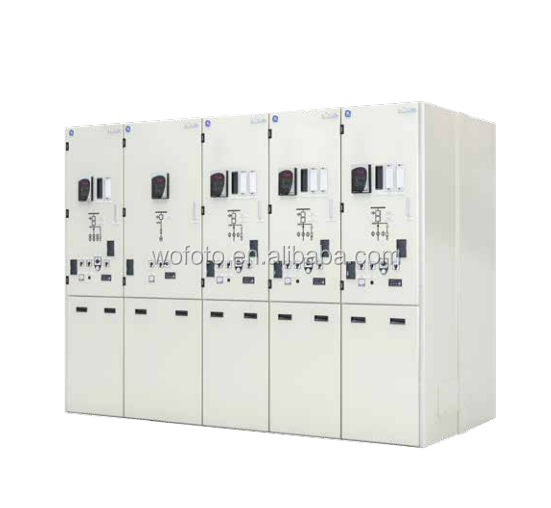

SecoCube is an indoor, factory-assembled, metal-enclosed, cubicle type gas-insulated switchgear for single busbar applications. It incorporates the advanced technologies of mixed gas-insulated ( SF6 + N2 ) and vacuum breakers, allowing the equipment to operate in a more reliable and environmentally friendly manner. With modern digital manufacturing and automatic testing coupled with sensor, monitor and protection technology, SecoCube is ideal fit for power distribution demands. SecoCube is particularly suited to industries with high reliability requirements such as Power Networks, Mining, Rail Transportation, Petrochemical Plants, Wind Farms and Metropolitan Rail Systems.
