Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LCCN
-
Dimension(L*W*H):
-
1440*1100*1020mm
-
Weight (KG):
-
400 KG
-
Product name:
-

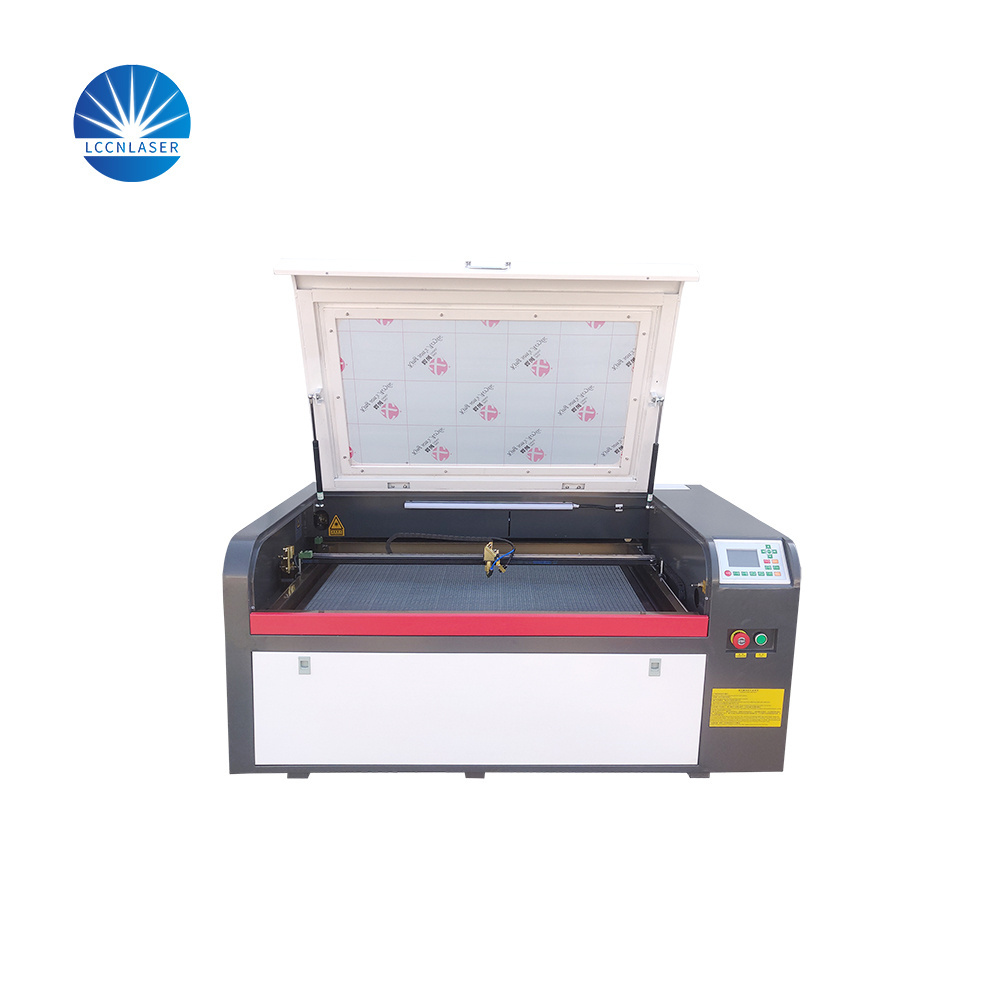

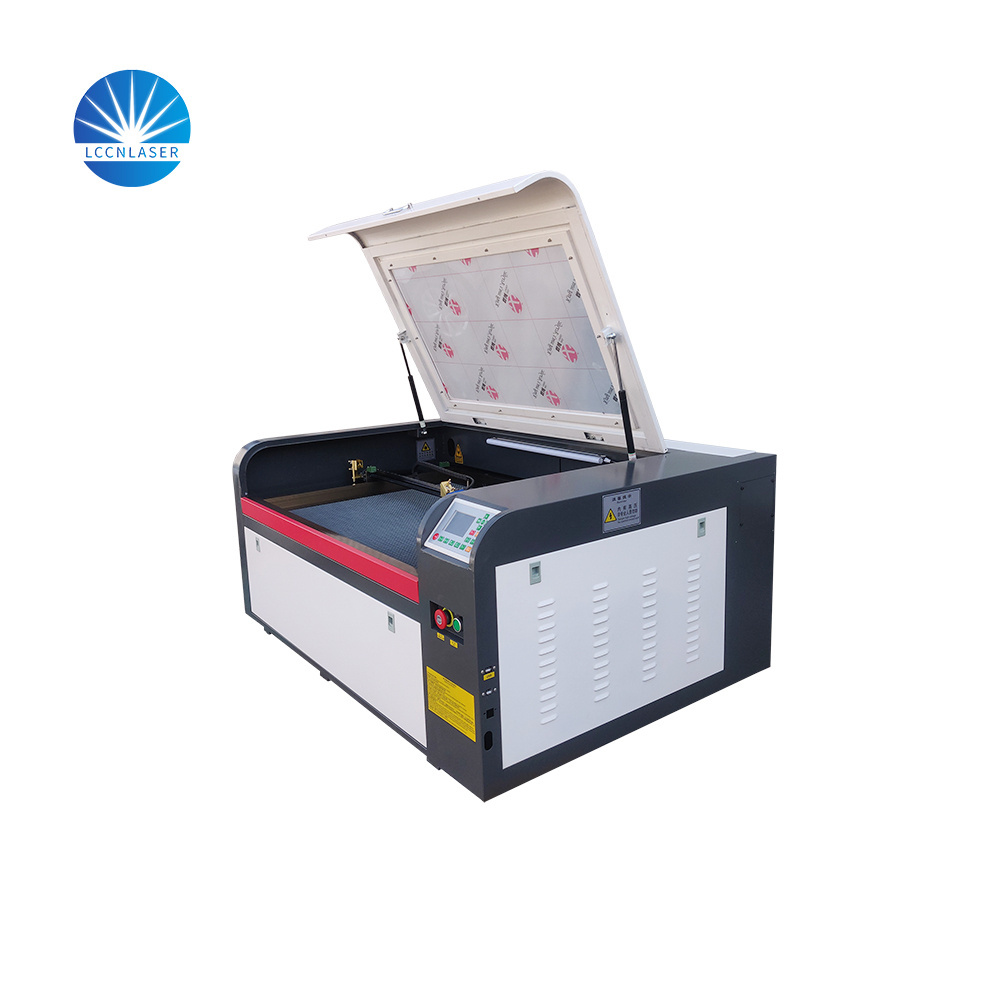

C02 Laser Engraving Cutting Machine
-
Laser power:
-
60W/80W/100W/130W/150W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Keywords:
-
Co2 Laser Cuting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Color:
-
Opitional
-
Certification:
-
CE
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
Other
Quick Details
-
Engraving Area:
-
600*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LCCN
-
Dimension(L*W*H):
-
1440*1100*1020mm
-
Weight (KG):
-
400 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Laser power:
-
60W/80W/100W/130W/150W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Keywords:
-
Co2 Laser Cuting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Color:
-
Opitional
-
Certification:
-
CE
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
Other
Product Description
Product Application
|
Laser Power
|
60w/80w/100w/130w
|
|
Working Area
|
600*900mm
|
|
Laser type
|
Sealed Co2 glass laser tube
|
|
Cooling mode
|
Water cooling and protection system
|
|
Engraving Speed
|
1-60000mm/min
|
|
Cutting Speed
|
1-10000mm/min
|
|
Min shaping character
|
Letter 1mm,Chinese 2mm
|
|
Repeat Location Accuracy
|
± 0.0125mm
|
|
Laser Power Controlling
|
1-100% Manual Adjustment and Software Controlling
|
|
Working temperature
|
5℃-40℃
|
|
Working humidity
|
5%-95%(without condensed water)
|
|
Working voltage
|
AC220V(±10%) 50Hz/AC110V(±10%)60Hz
|
|
Cutting Platform
|
Professional Thickening Strip or Honeycomb Work Table
|
|
Support Graphics Formats
|
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Compatible HPG Order To Support DXF, WMF, BMP, DXT |
|
Driving system
|
Stepper
|
|
Training
|
Video Training, online support
|
|
Guarantee time
|
whole machine 1 year, laser tube 6 months
|
Sample show
