Quick Details
-
Model Number:
-
DAS-DH120N 330W ~ 350W
-
Certificate:
-
CE,IEC61215,IEC61730,ISO,TUV
-
Product name:
-

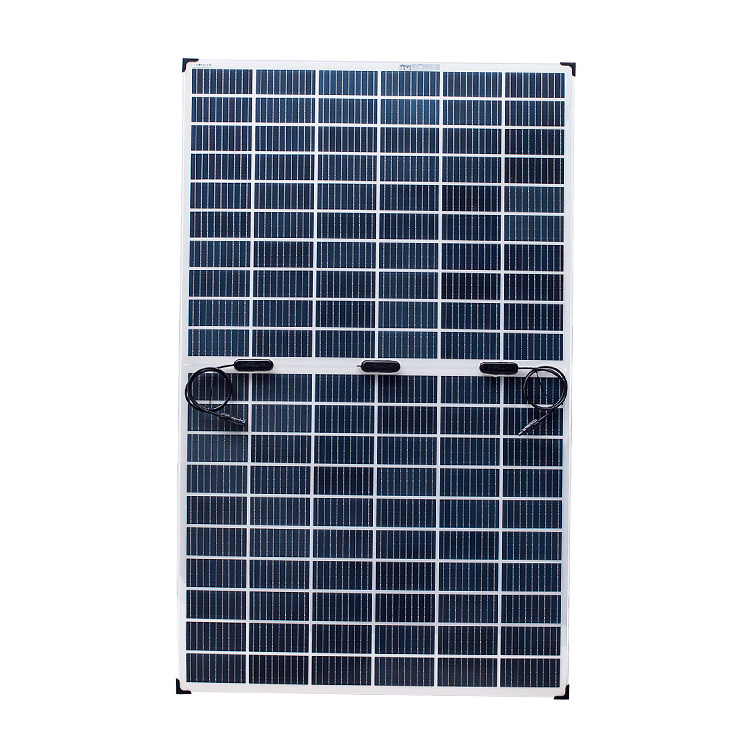

Half Cell Bifacial Module N Type
-
Model Type:
-
Half Cell Bifacial Module N Type
-
Solar cell:
-
1698*1002*6mm
-
Weight:
-
24.2kg
-
Thickness:
-
2.5mm
-
OEM:
-
Support
-
Max system voltage:
-
DC1500V
-
Work temperature:
-
-40℃~+85℃
-
Warranty:
-
12YEARS
Quick Details
-
Type:
-
Half cell mono perc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DASOLAR
-
Model Number:
-
DAS-DH120N 330W ~ 350W
-
Certificate:
-
CE,IEC61215,IEC61730,ISO,TUV
-
Product name:
-
Half Cell Bifacial Module N Type
-
Model Type:
-
Half Cell Bifacial Module N Type
-
Solar cell:
-
1698*1002*6mm
-
Weight:
-
24.2kg
-
Thickness:
-
2.5mm
-
OEM:
-
Support
-
Max system voltage:
-
DC1500V
-
Work temperature:
-
-40℃~+85℃
-
Warranty:
-
12YEARS
Product Description
Mechanical Parameters
| Cell size | Bifacial N Type 158.75×79.375mm |
| Module size | 1698×1002×6mm(L×W×H) |
| Glass Thickness | 2.5mm |
| Module Weight | 24.2kg |
| Output Cable | 4mm², cable length 300mm (can be customized) |
| Connector | MC4 compatible |
| J-Box | IP68, 3 bypass diodes |
| Frame | Frameless |
Temperature Coefficients
| Short Circuit Current(Isc) | +0.048%/℃ |
| Open Circuit Voltage(Voc) | -0.30%/℃ |
| Nominal Max. Power(Pmax) | -0.35%/℃ |
| NMOT | 42±2℃ |
Operating Parameters
| Max. System Voltage | DC1500V |
| Power Tolerance | 0 ~ +5 W |
| Operating Temperatue | -40℃ ~ +85℃ |
| Max. Fuse Rated Current | 20A |
| Front Static Load | Snow load 5400Pa, Wind load 2400Pa |
| Application Classifcation | Class A |
| Packing Specification | 33 pcs/Pallet, 198 pcs/ 20’GP; 792 pcs/ 40’HQ; |
