Quick Details
-
CaO Content (%):
-
0.1%
-
CrO Content (%):
-
0.01%
-
SiC Content (%):
-
88%
-
Place of Origin:
-
Henan, China
-
Model Number:
-
RON
-
Brand Name:
-
Lite
-
Product name:
-
Reaction sintered silicon carbide beam/batts as kiln furniture
-
raw material:
-
Silicon carbide powder
-
Color:
-
black
-
Feature:
-
Good thermal shock resistance
-
Density:
-
2.8g/cm3
-
apparent porosity:
-
12%
-
max working temperature:
-
1450℃
-
Usage:
-
kiln car of Ceramic kiln
-
Certificate:
-
test report
Quick Details
-
SiO2 Content (%):
-
5%
-
Al2O3 Content (%):
-
1%
-
MgO Content (%):
-
0.02%
-
CaO Content (%):
-
0.1%
-
CrO Content (%):
-
0.01%
-
SiC Content (%):
-
88%
-
Place of Origin:
-
Henan, China
-
Model Number:
-
RON
-
Brand Name:
-
Lite
-
Product name:
-
Reaction sintered silicon carbide beam/batts as kiln furniture
-
raw material:
-
Silicon carbide powder
-
Color:
-
black
-
Feature:
-
Good thermal shock resistance
-
Density:
-
2.8g/cm3
-
apparent porosity:
-
12%
-
max working temperature:
-
1450℃
-
Usage:
-
kiln car of Ceramic kiln
-
Certificate:
-
test report
Product Description
Round hole shape RBSIC/ SSIC/ SISIC/ sic silicon carbide ceramic tube pipe beam
Features:
• Lighter weight and higher load capacity.
• Excellent distortion resistance at high temperature.
• High thermal conductivity
• Excellent distortion resistance at high temperature.
• High thermal conductivity
• High Young's modulus
• Low thermal expansion coefficient
• Extremely high hardness
• Wear resistant
Application:
Specification
|
Properites
|
Units
|
Silicon carbide Material
|
|
|
|
|
|
|
|||||||
|
Type
|
|
SiC
|
|
SiSiC
|
|
NSiC
|
RSiC
|
|
|||||||
|
Chemical composition
|
SiC%
|
89
|
87
|
92
|
|
70
|
99
|
|
|||||||
|
|
SiO2 %
|
5
|
6
|
-
|
|
Si3N4 28
|
-
|
|
|||||||
|
|
Al2O3%
|
1.0
|
2.0
|
-
|
|
-
|
-
|
|
|||||||
|
Bulk Desity
|
g/cm3
|
2.85
|
2.8
|
3.01
|
|
2.8
|
2.75
|
|
|||||||
|
Apparent porosity
|
%
|
12
|
14
|
0.1
|
|
12
|
14
|
|
|||||||
|
M.O.R.@20℃
|
MPa
|
50
|
48
|
260
|
|
180
|
100
|
|
|||||||
|
M.O.R.@1300℃
|
MPa
|
58
|
56
|
280
|
|
185
|
120
|
|
|||||||
|
C.T.E.@20℃-1000℃
|
10-6K-1
|
4.8
|
4.2
|
4.5
|
|
4.7
|
4.6
|
|
|||||||
|
C.C.S
|
MPa
|
100
|
90
|
900
|
|
500
|
300
|
|
|||||||
|
Thermal shock resistance
|
★
|
★★★★★
|
★★★★★
|
★★★★★
|
|
★★★★★
|
★★★★★
|
|
|||||||
|
Max working temperature
|
℃
|
1450
|
1420
|
1300
|
|
1500
|
1650
|
|
|||||||
|
application
|
Used in ceramic shuttle kiln, tunnel kiln and roller kiln,Kiln furniture.
|
|
|
|
|
|
|
|
|||||||

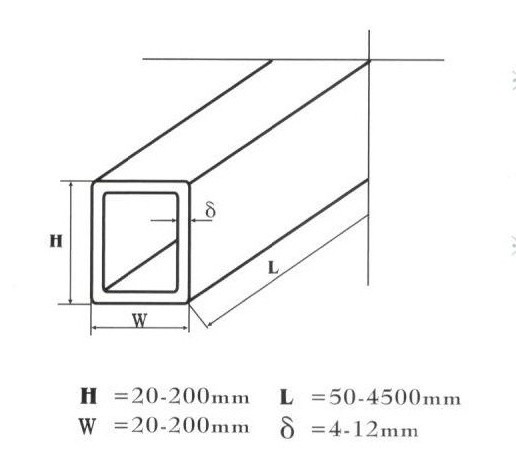

dimension of beam
|
Production name
|
SISIC Beam
|
|
bending strength
|
250MPa
|
|
loading capacity
|
74-2498kg
|
|
Working Temperature
|
1380c
|
|
life
|
more than 5 years
|
|
Quality assurance
|
18 months
|

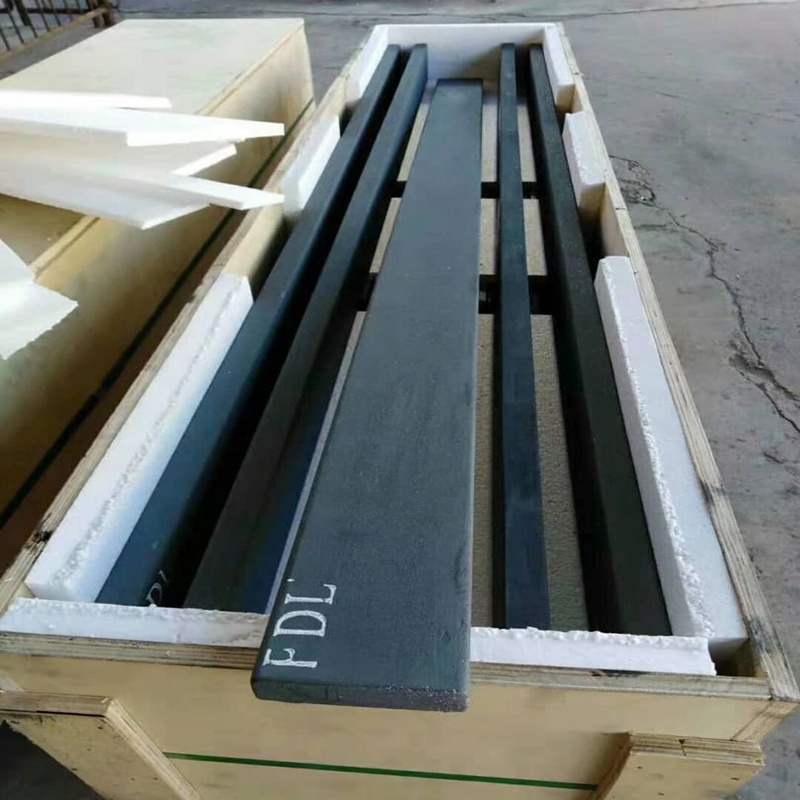

Packaging &Shipping
