Quick Details
-
Brand Name:
-
FEISHINE
-
Model Number:
-
FSM-2
-
Product name:
-
Refractory graphite brick
-
Material:
-
High Pure Artificial Graphite Materials
-
Compress strength:
-
36Mpa
-
Resisitance:
-
7.5 uΩm
-
Ash content:
-
0.2%
-
Bulk Density:
-
1.72 g/cm3
-
Flexural Strength:
-
18Mpa
-
Grain Size:
-
2/0.8mm
Quick Details
-
Application:
-
Refractory material
-
Chemical Composition:
-
Carbon>99%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FEISHINE
-
Model Number:
-
FSM-2
-
Product name:
-
Refractory graphite brick
-
Material:
-
High Pure Artificial Graphite Materials
-
Compress strength:
-
36Mpa
-
Resisitance:
-
7.5 uΩm
-
Ash content:
-
0.2%
-
Bulk Density:
-
1.72 g/cm3
-
Flexural Strength:
-
18Mpa
-
Grain Size:
-
2/0.8mm
Product Description
|
Product Name
|
Refractory Carbon Graphite Brick for Casting Furnace
|
|
Material
|
Artificial graphite materials
|
|
Technology
|
Extruded Graphite Block
|
|
Grade
|
Medium grain graphite materials
|
|
Application
|
Foundry, metallurgy, various high temperature industrial furnaces, glass, chemical, mechanics, electronics etc.
|
|
Notes
|
Special specifications and marks can be made according to customers requirements
|

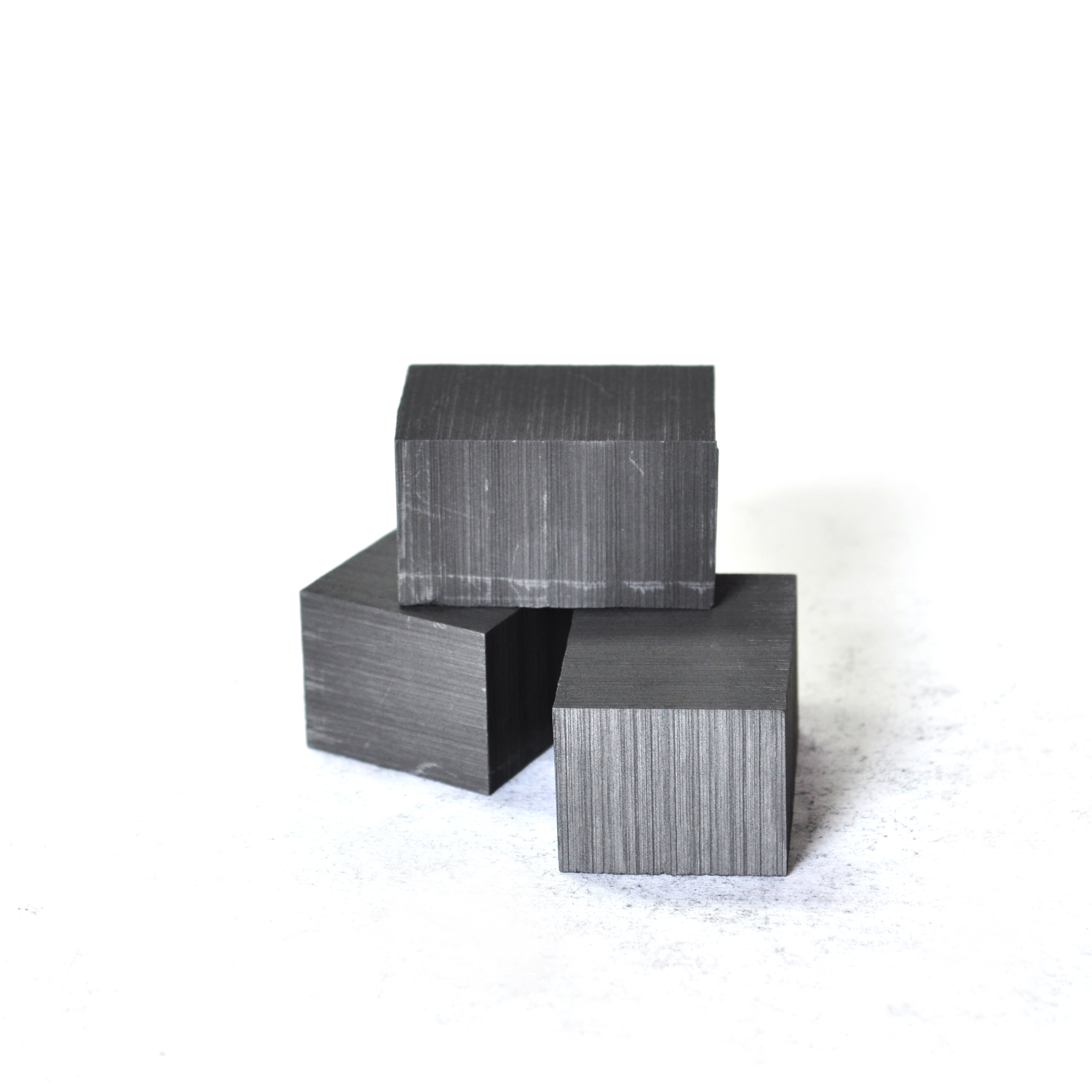

Detailed Images
|
Models
|
Density
|
Resistivity
|
Compressive
Strength
|
Flexural
Strength
|
Ash
|
Grain size
|
|
|
g/cm3
|
μΩm
|
Mpa
|
Mpa
|
%
|
|
|
|
>=
|
>=
|
>=
|
<=
|
<=
|
|
|
TX162
|
1.62
|
8
|
28
|
14
|
0.3
|
1,2,4mm
|
|
TX172
|
1.72
|
7.5
|
36
|
18
|
0.3
|
0.8,2mm
|
|
TX175
|
1.75
|
7.5
|
48
|
24
|
0.3
|
325mesh
|
|
TX180
|
1.80
|
7.5
|
52
|
28
|
0.2
|
325mesh
|
|
TX185
|
1.85
|
7
|
62
|
36
|
0.2
|
325mesh
|
The advantages of graphite brick:
Application
|
Product Name
|
Industry
|
Application
|
|
Crucible,Boat,Dish,etc.
|
Metallurgy
|
Melting,refining and analysis
|
|
Dies,Molds,Ingot Chassis,etc.
|
|
EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine
|
|
Graphite Roller,etc.
|
|
Heat treatment of steel plate in furnace
|
|
Conduit,Skateboard,etc.
|
|
Aluminum molding
|
|
Graphite Pipe
|
|
Guard pipe for measuring temperature,blowpipe,etc
|
|
Graphite Block
|
|
Masonry furnace and other heat resistance material
|
|
Chemical Equipment
|
Chemistry
|
Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc
|
|
Electrolytic Plate
|
|
Salt solution and baking molten salt electrolyte
|
|
Electrolytic Mercury
|
|
NaCI electrolyte
|
|
Grounded Anode
|
|
Electrical anticorrosion
|
|
Motor Brush
|
Electricity
|
Commutator,slipping ring
|
|
Current Collector
|
|
Skate,slide,trolley
|
|
Contact
|
|
Switches,relays
|
|
Mercury Ferry And Electronic Pipe
|
Electronics
|
Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode
|
|
Graphite Bearing
|
Machinery
|
High temperature resistance sliding bearing
|
|
Sealing Element
|
|
Sealing ring,stuffing box seal,packing seal
|
|
Product Element
|
|
Braking in plane and vehicle
|
|
Nuclear Graphite
|
Nuclear Power
|
Deceleration materials,reflective materials,shielding materials,nuclear fuel,support devices,etc
|
