Quick Details
-
Brand Name:
-
CNAISO
-
Model Number:
-
ASQ-400/4P
-
Rated Current:
-
400a
-
Product:
-
Solar Changeover Switch Automatic Transfer Switch for Solar
-
Product Name:
-
400A 690V 4P ATS
-
Rated Voltage:
-
400V/690V
-
Rated Frequency:
-
50/60Hz
-
Mechanical Life:
-
5000 Times
-
Warranty:
-
18 Months
-
Customized:
-
Accept special order
-
Port:
-
Ningbo/Shanghai
-
Certification:
-
CE/ISO9001
-
Product Keywords:
-
Dual power isolation switch
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNAISO
-
Model Number:
-
ASQ-400/4P
-
Rated Current:
-
400a
-
Product:
-
Solar Changeover Switch Automatic Transfer Switch for Solar
-
Product Name:
-
400A 690V 4P ATS
-
Rated Voltage:
-
400V/690V
-
Rated Frequency:
-
50/60Hz
-
Mechanical Life:
-
5000 Times
-
Warranty:
-
18 Months
-
Customized:
-
Accept special order
-
Port:
-
Ningbo/Shanghai
-
Certification:
-
CE/ISO9001
-
Product Keywords:
-
Dual power isolation switch
Product Description

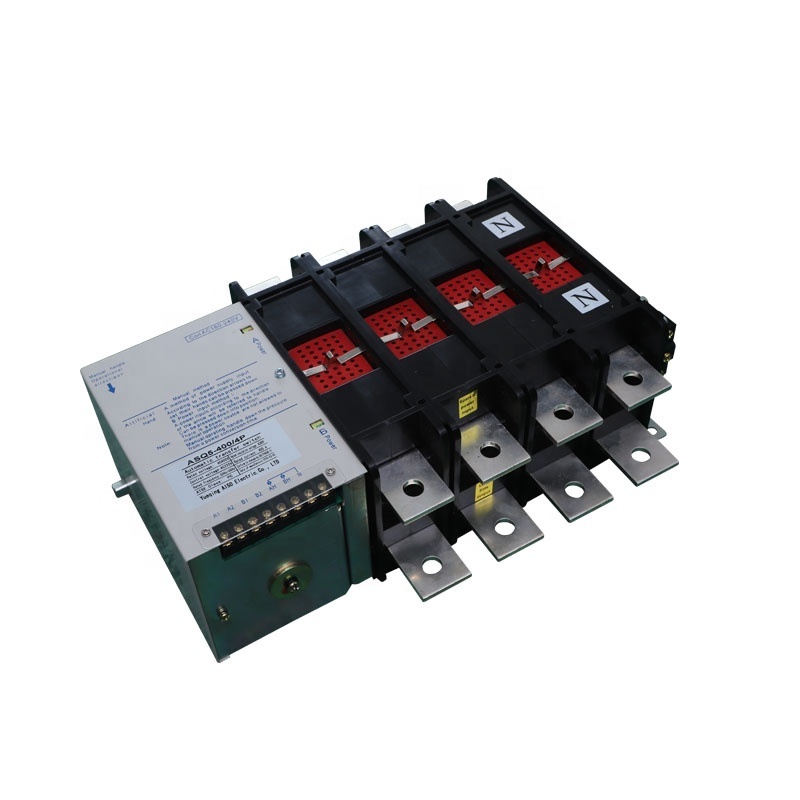

Solar Changeover Switch Automatic Transfer Switch for Solar
| Model | ASQ-400/4P | ||
| Rated working voltage Ue | AC400V | ||
| Rated insulation voltage | 690V | ||
| Rated impulse withstand voltage | 8kA | ||
| Rated limiting short circuit current | / | ||
| Operating cycles(S/times) | 30S | ||
| Switching time | 0-99S | ||
Welcome to contact us for other ATS model details.
400a automatic transfer switch/ 400 amp changeover switch/ automatic transfer switch 400a
Overall dimension and installation dimension
400a automatic transfer switch/ 400 amp changeover switch
| Model | Overall dimension | Installation dimension | Copper bar dimension | ||||||
| L | W | H | L1 | W1 | 3-Ø | L2 | T | P | |
| ASQ-400/4P | 410 | 290 | 132 | 290 | 200 | Ø7 | 40 | 5 | 62 |
400a automatic transfer switch/ 400 amp changeover switch/ automatic transfer switch 400a
