Quick Details
-
Power:
-
500w
-
Frequency Range (Hz):
-
50-2000HZ
-
Dimension (L x W x H):
-
41.5*41.5*41cm
-
Nominal Diameter::
-
390mm(15 inch)
-
Frequency Range::
-
50-2000HZ
-
Rated Impedance::
-
8 ohm
-
Voice Coil Diameter::
-
75mm(3 inch)
-
Former Material::
-
Glass Fiber
-
Power Capacity::
-
500W
-
Sensitivity (1w/1m)::
-
97DB
-
Magnet::
-
Neodymium ring
-
FS::
-
43Hz
-
Qts::
-
0.40
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR15N75J
-
Power:
-
500w
-
Frequency Range (Hz):
-
50-2000HZ
-
Dimension (L x W x H):
-
41.5*41.5*41cm
-
Nominal Diameter::
-
390mm(15 inch)
-
Frequency Range::
-
50-2000HZ
-
Rated Impedance::
-
8 ohm
-
Voice Coil Diameter::
-
75mm(3 inch)
-
Former Material::
-
Glass Fiber
-
Power Capacity::
-
500W
-
Sensitivity (1w/1m)::
-
97DB
-
Magnet::
-
Neodymium ring
-
FS::
-
43Hz
-
Qts::
-
0.40

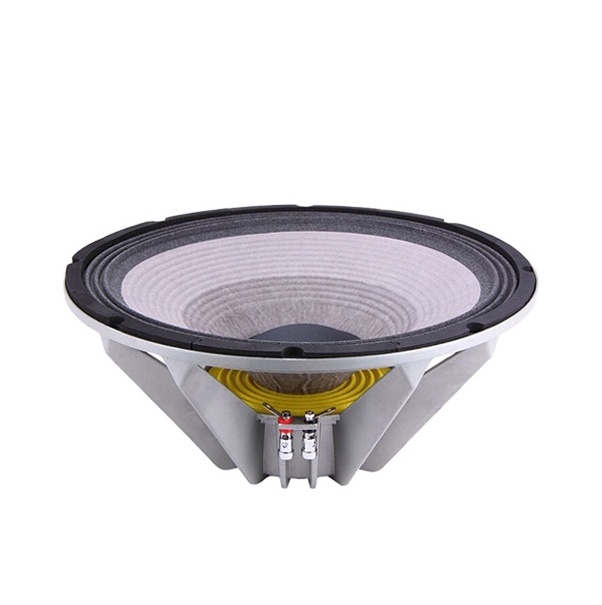

Product Picture
| MR15N75J |
| 15"-500W-97dB |
| NOMINAL SPECIFICATIONS |
| Nominal Diameter 390mm (15 in) |
| Overall Diameter 390mm(15 in) |
| Bolt circle diameter 375mm |
| Baffle Cutout Diameter 356mm |
| Depth 170mm |
| Net Weight 4.2kg |
| Shipping Box 420×420×195mm |
| Shipping Weight(2PCS) 5kg |
| TECHNICAL PARAMETERS |
| Nominal lmpedance 8Ω |
| AES Power Handing(1) 500W |
| Maximum Power Handling(4) 1000W |
| Sensitivity(1W/1m) 97dB |
| Frequency Range 50-2000Hz |
| Voice Coil Diameter 75mm(3in) |
| Winding Material CCAR |
| Former Material Glass Fiber |
| Winding Depth 18mm |
| Magnetic Gap Depth 10mm |
| Flux Density 1.25T |
| Magnet Neodymium Ring |
| Demodulation NO |
| Suspension(5) Triple Roll |
| THIELE & SMALL PARAMETERS |
| Fs 43Hz |
| Re 5Ω |
| Qes 0.42 |
| Qms 9.5 |
| Qts 0.40 |
| Vas 181dm³ |
| Sd 855cm² |
| Xmax 7.5mm |
| Mms 79g |
| Bl 16N/A |
| Cms 0.17mm /N |
| η(Eta Zero) 3.3% |
| EBP 100Hz |
