Quick Details
-
Warranty:
-
1Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP
-
Model Number:
-
MD03HLSS
-
Torque:
-
Up to 570mN.m
-

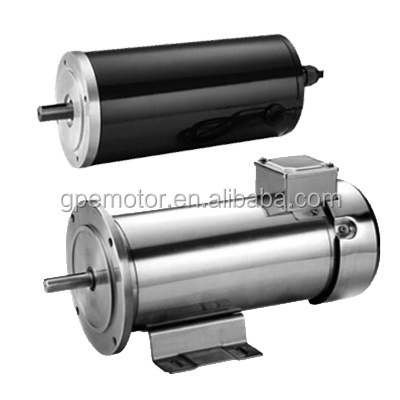

Product Name:
-
PMDC Motor
-
Motor type:
-
Micro Motor
-
Rated Voltage:
-
3~230VDC
-
Speed Range:
-
Up to 30000rpm
-
Magnet:
-
Ferrite
-
Shaft OD:
-
8~12mm
-
Bearing:
-
Ball/Sleeve
-
Max Effeciency:
-
70%~85%
-
Life Time:
-
50000 hours
-
Certification:
-
CCC, CE
Quick Details
-
Speed(RPM):
-
Up to 30000rpm
-
Continuous Current(A):
-
1~25A
-
Efficiency:
-
IE 2
-
Warranty:
-
1Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP
-
Model Number:
-
MD03HLSS
-
Torque:
-
Up to 570mN.m
-
Product Name:
-
PMDC Motor
-
Motor type:
-
Micro Motor
-
Rated Voltage:
-
3~230VDC
-
Speed Range:
-
Up to 30000rpm
-
Magnet:
-
Ferrite
-
Shaft OD:
-
8~12mm
-
Bearing:
-
Ball/Sleeve
-
Max Effeciency:
-
70%~85%
-
Life Time:
-
50000 hours
-
Certification:
-
CCC, CE
Product Overview
| Diameter | Up to 150 (customized) |
| Voltage | 3v 5v 6v 9v 12v 24v 36v 48v 96v 110v to 230v (customized) |
| Speed Range | Up to 8000rpm (customized) |
| Insulation Class | Class "B" or "F" (customized) |
| Type of Production | IP55 (customized) |
| Bearing | Ball or Sleeve (customized) |
| Shaft OD | 8~12mm (customized) |
| Life Time | 50,000 hours (customized) |
Product Description
| Product Name | |
| Model No. | MD03HLSS |
| Voltage | 12 / 24 VDC |
| Speed Range | 1750rpm |
| NEMA Frame | 56C |
| Insulation Class | Class "B" or "F" |
| Shaft OD | 8~12mm |
| Bearing | Ball / Sleeve |
| Life Time |
| Outline Drawing |
