Quick Details
-
Model Number:
-
XC-9038N
-
Dimension:
-
144x144x34mm
-
Product name:
-
IP Paging console
-
Power Supply:
-
DC 12V/1.5A
-
Audio Codec:
-
G.711 A-law, G.711 μ-law, G.729, PCM/L16
-
S/N (Signal-to-Noise) Ratio:
-
8kHz-44.1kHz, 16bit, 8kbps-320kbps
-
Frequency Response:
-
100Hz~16kHz
-
Network Protocol:
-
SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP,FTP
-
Configuration Method:
-
Local Settings/Web Page
-
Mounting Method:
-
Desktop
-
Weight:
-
0.55KG
-
Standard Accessories:
-
Microphone Rod, Terminal Block Connector, Installation Manual
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
XC-9038N
-
Dimension:
-
144x144x34mm
-
Product name:
-
IP Paging console
-
Power Supply:
-
DC 12V/1.5A
-
Audio Codec:
-
G.711 A-law, G.711 μ-law, G.729, PCM/L16
-
S/N (Signal-to-Noise) Ratio:
-
8kHz-44.1kHz, 16bit, 8kbps-320kbps
-
Frequency Response:
-
100Hz~16kHz
-
Network Protocol:
-
SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP,FTP
-
Configuration Method:
-
Local Settings/Web Page
-
Mounting Method:
-
Desktop
-
Weight:
-
0.55KG
-
Standard Accessories:
-
Microphone Rod, Terminal Block Connector, Installation Manual
Products Description
Paging Speaker System
This Great PA System Package is perfect for a Small to Medium Sized Shops or Offices. Ideal for background Music & Announcements. All year need in one complete PA System bundle to get your message to the shop floor, factory, office or waiting room. The All-in-oneo'ne speakers transmit high quality audio, ideal for background music.
|
Power Supply:
|
DC 12V/1.5A
|
|
|
|
|||
|
Audio Codec:
|
G.711 A-law, G.711 μ-law, G.729, PCM/L16
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio:
|
≥80dB
|
|
|
|
|||
|
Audio Sampling & Bit Rate:
|
8kHz-44.1kHz, 16bit, 8kbps-320kbps
|
|
|
|
|||
|
Frequency Response:
|
100Hz~16kHz
|
|
|
|
|||
|
Network Protocol:
|
SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP,FTP
|
|
|
|
|||
|
Configuration Method:
|
Local Settings/Web Page
|
|
|
|
|||
|
Mounting Method:
|
Desktop
|
|
|
|
|||
|
Interface:
|
1×RJ45 Ethernet Port
1×USB 2.0
2×Line Input
1×Line Output
1×Relay Input
1× Mic input
1×Power supply port
|
|
|
|
|||
|
Dimensions:
|
144×144×34mm
|
|
|
|
|||
|
Weight:
|
0.55KG
|
|
|
|
|||
|
Standard Accessories:
|
1 X Microphone Rod
1x Terminal Block Connector
1 x Installation Manual
1 x Certification
|
|
|
|
|||
|
Optional Accessories:
|
DC 12V/1.5A Power Adapter (US/EU/UK/AU)
|
|
|
|
|||
Connection Topology

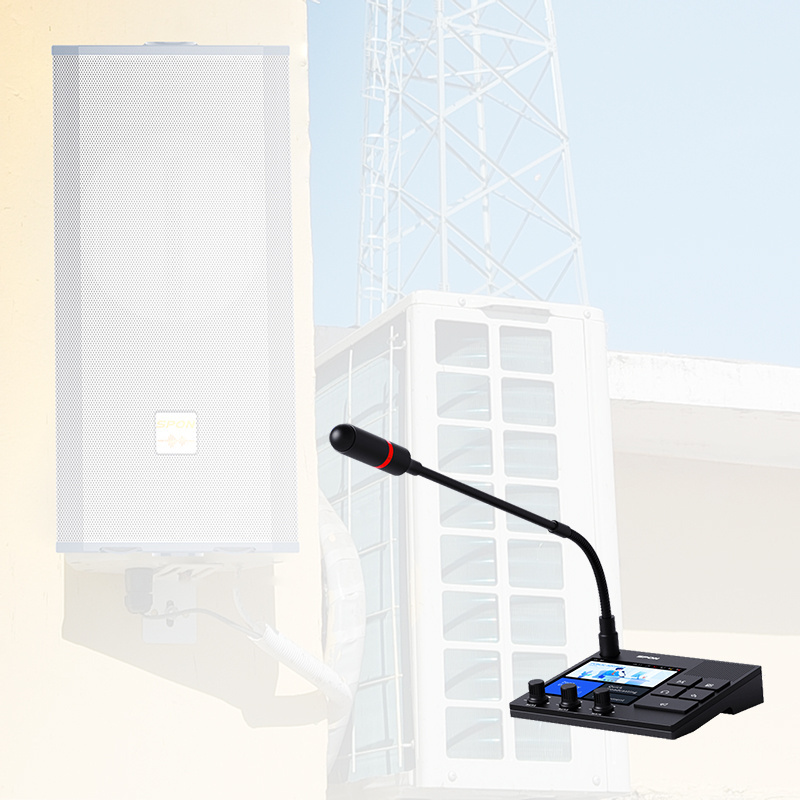

XC-9038N
-
IP Paging Console
This modern-looking desktop paging console with 4” HD touchscreen is equipped with built-in a mini web server that can manage maximum 30 IP terminals. It would be a great fit for most small projects.
