Quick Details
-
Warranty:
-
24 Months
-
Loading Capacity:
-
2500kg
-
Drive mode:
-
hydraulic cylinder
-
Style:
-

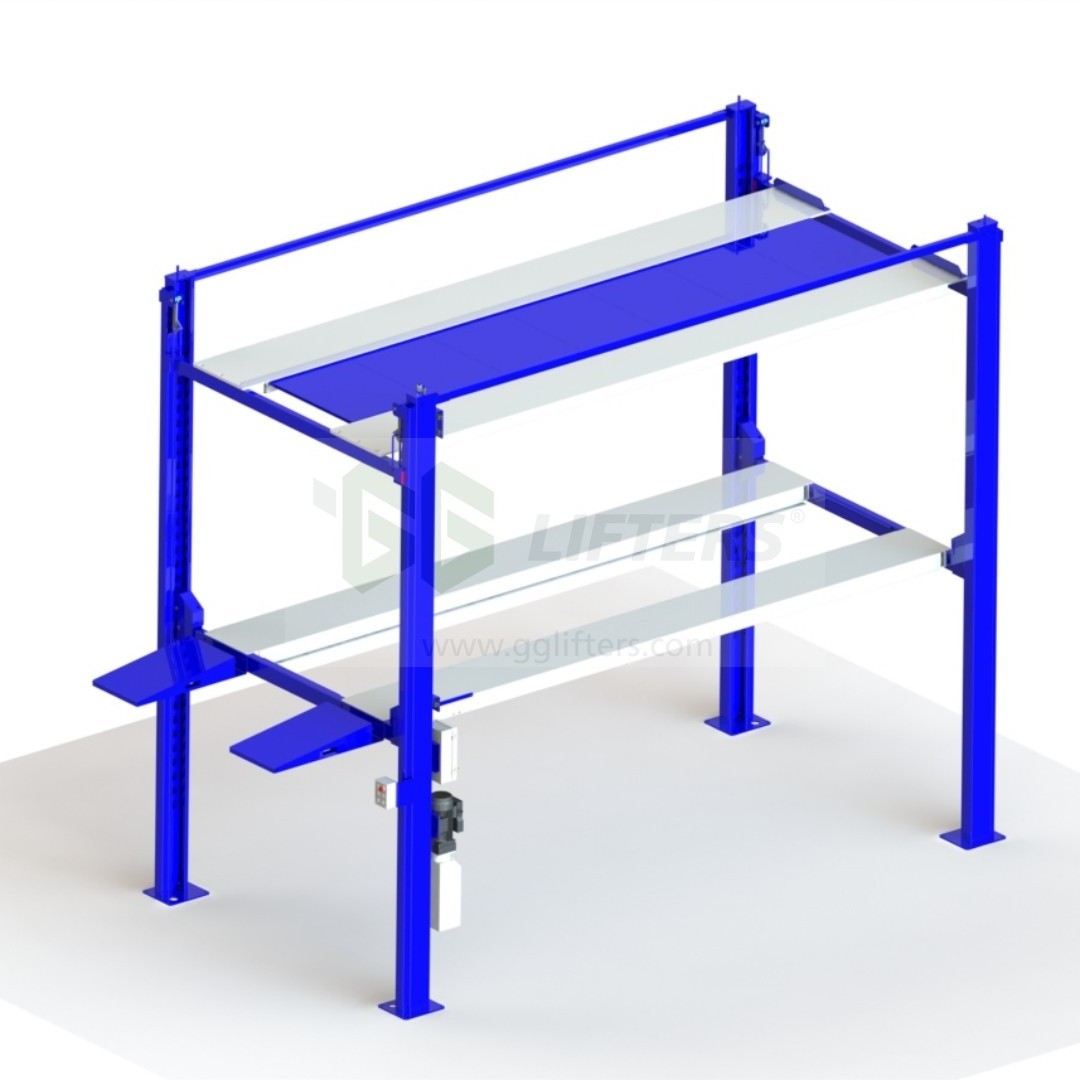

Four Post Car Parking Lift
-
Height:
-
4368mm
-
Lifting Capacity:
-
2500kg/platform
-
Lifting Time:
-
60S/50S
-
Gross Weight:
-
1800kg
-
Motor:
-
220V/380V, 50Hz/60Hz, 1Ph/3Ph, 2.2kw
-
Packing Dimension:
-
1 unit/package: 5400*800*1005mm (14'5"*1'10"*2'4")
-
free width:
-
2400 mm
-
lock release type:
-
electric automatic lock release
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
GG Lifters
-
Model Number:
-
PFP25/2-1800
-
Warranty:
-
24 Months
-
Loading Capacity:
-
2500kg
-
Drive mode:
-
hydraulic cylinder
-
Style:
-
Four Post Car Parking Lift
-
Height:
-
4368mm
-
Lifting Capacity:
-
2500kg/platform
-
Lifting Time:
-
60S/50S
-
Gross Weight:
-
1800kg
-
Motor:
-
220V/380V, 50Hz/60Hz, 1Ph/3Ph, 2.2kw
-
Packing Dimension:
-
1 unit/package: 5400*800*1005mm (14'5"*1'10"*2'4")
-
free width:
-
2400 mm
-
lock release type:
-
electric automatic lock release
Product Description

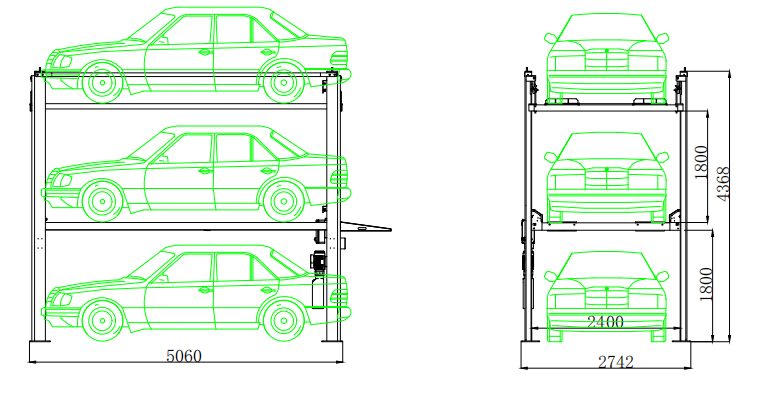

| Model | PFP25/3600 |
| 2500 kg / platform, and 5000 kg totally | |
| Net lifting Height | 1800mm+1800mm |
| Unit External dimensions | 5800*2742*4368mm |

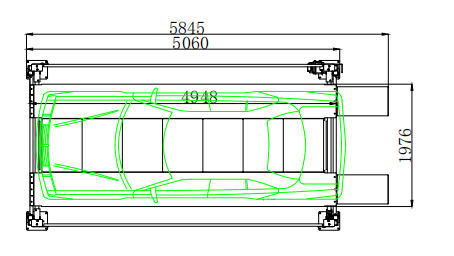

| Platforms Length x Width | 4948*1976mm |
| Runway type | Checkered steel plates |
| Electric parts | Original Chint |
| Brand of oil seals in cylinder | Aston , Italy |
| Lock release type | lower platform: electromagnetic lock release,top platform:mechaincal lock release |
| Middle in the runway | 3 ea plastic oil trays or PP Plate Sheet |
| Type of ramp | movable ramps |
| Safety Devices | |
| Operation Type | electric panels on operation box |
| Power Supply | 380/ 220 V , 50/60 Hz , 1/3 Ph |
| Motor Capacity |
