Quick Details
-
Model Number:
-
GB6284PW
-
Dimension:
-
125X1150X178 mm
-
Storage:
-
other
-
SNR:
-
other
-
Output Power:
-
500W
-
Format:
-
White Clounm
-
Dimensions:
-
Width X Height X Depth=125X1150X178 mm
-
Weight:
-
14 kg
-
Box material:
-
splint
-
Color:
-
White
-
Active or passive?:
-
active
-
Temperature range:
-
0°C to 40°C (32°F to 102°F)
-
Authentication:
-
CE
-
Full-range?:
-
Yes
-
Total output power:
-
500 W
-
Frequency response:
-
80 Hz - 20 kHz
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beatnote
-
Model Number:
-
GB6284PW
-
Dimension:
-
125X1150X178 mm
-
Storage:
-
other
-
SNR:
-
other
-
Output Power:
-
500W
-
Format:
-
White Clounm
-
Dimensions:
-
Width X Height X Depth=125X1150X178 mm
-
Weight:
-
14 kg
-
Box material:
-
splint
-
Color:
-
White
-
Active or passive?:
-
active
-
Temperature range:
-
0°C to 40°C (32°F to 102°F)
-
Authentication:
-
CE
-
Full-range?:
-
Yes
-
Total output power:
-
500 W
-
Frequency response:
-
80 Hz - 20 kHz
Products Description
Features:

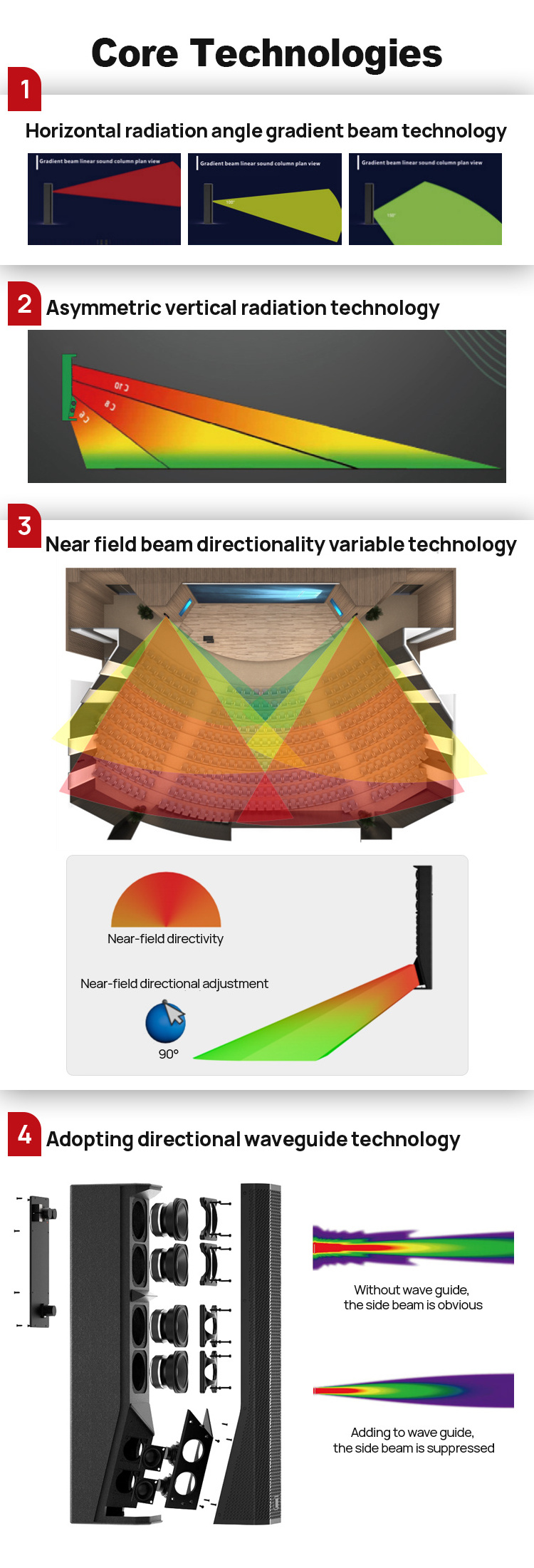

1. Use directional waveguide technology to suppress the generation of useless side lobes and obtain the expected directivity.
2. Horizontal radiation angle gradient beam technology forms 2 directional beams with different horizontal radiation angles, which are respectively responsible for sound field coverage in the near field and far field. Each beam can adjust the sound pressure coverage intensity. According to the acoustic characteristics, the beam the narrower the beam, the farther the projection distance, and the wider the beam, the wider the radiation surface, but the radiation distance is not far, so the
three beam settings are: 160 degrees for the near field beam, and 100 degrees for the far field.
3. Near-field beam directivity variable technology can realize horizontal radiation angle adjustment through DSP, which can radiate targeted areas, while ineffective areas can reduce radiation, such as reducing wall reflections and improving the interference and reverberation time of useless sound waves in space. Long, direct sound is obtained directly, improving speech clarity.
4. Asymmetric vertical radiation technology. In order to ensure that the front and rear sound fields are relatively uniform,
traditional sound columns use physical methods to slant the speakers downward during installation. However, this affects the aesthetics of the speakers integrating into the space. To solve this problem, Using asymmetric vertical radiation technology processing, a gradual delay is implemented on the 2 beams of sound waves through digital DSP technology, and combined with a specially designed acoustic structure to process each beam of sound waves to produce an asymmetric vertical radiation pattern, forming a downward Radiation angle, and greatly reduce the upward emission of sound, attenuate the acoustic reflection of the ceiling, obtain the final required time domain and amplitude, and provide consistent radiation sound pressure level, while having a strong side-breaking effect. Strong direct sound, clean and clear sound.

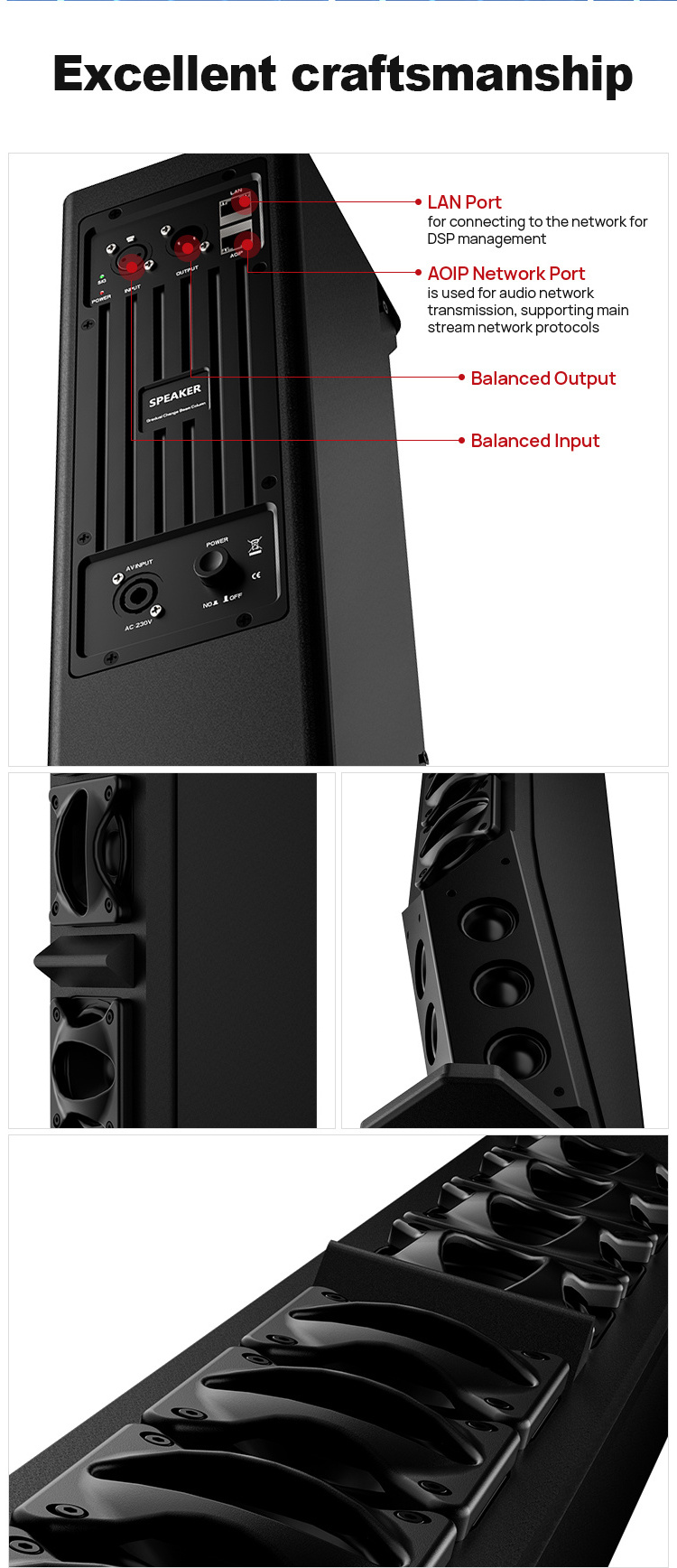

5. AOIP network audio input technology supports mainstream network protocols.
6. Analog signal and digital signal input are optional, and mixed input is also possible.
7. Network management settings, the device can be managed and set in the network by directly connecting to the switch.

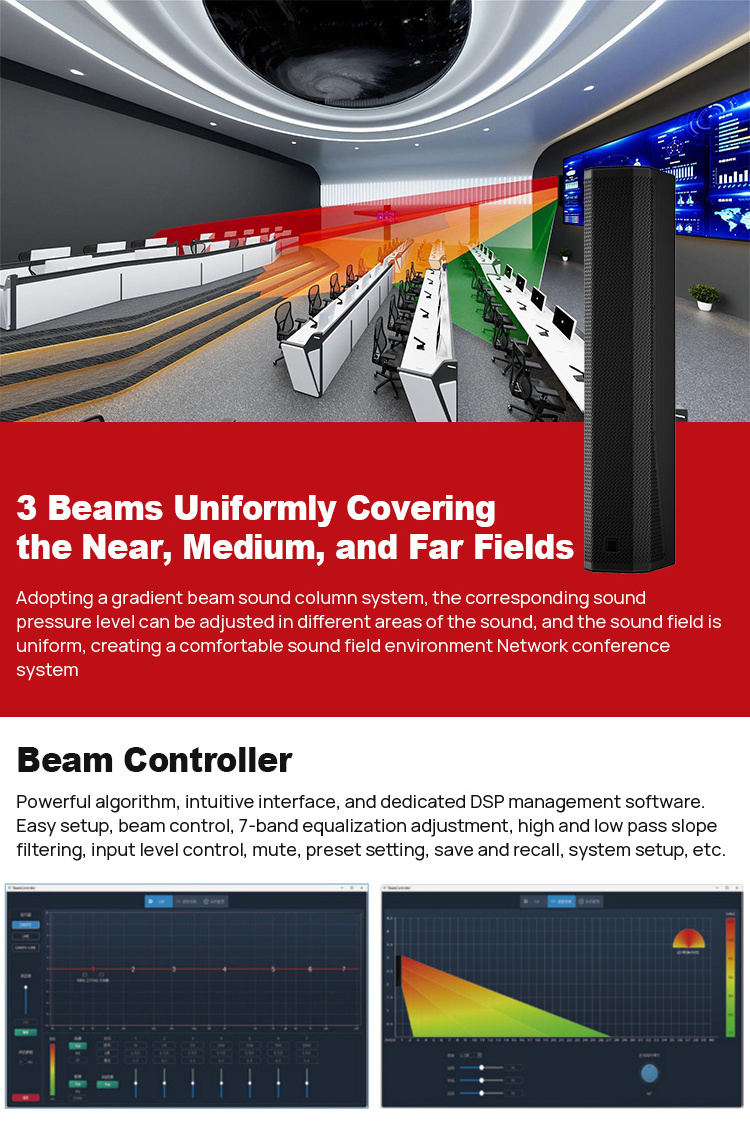

8. Powerful algorithm, intuitive interface, dedicated DSP management software, easy to set up, can perform beam control, 7-band equalization adjustment, high and low pass slope filtering, input level control, mute, preset settings, save and recall, system settings and other functions.
9. Built-in multi-channel high-stability digital power amplifier.
10. Dedicated full-range 3.5-inch high-quality speakers are used in the far field, and 2-inch full-range speakers are used in the near field. The sound wave coupling is scientific and the sound quality is clear and transparent.

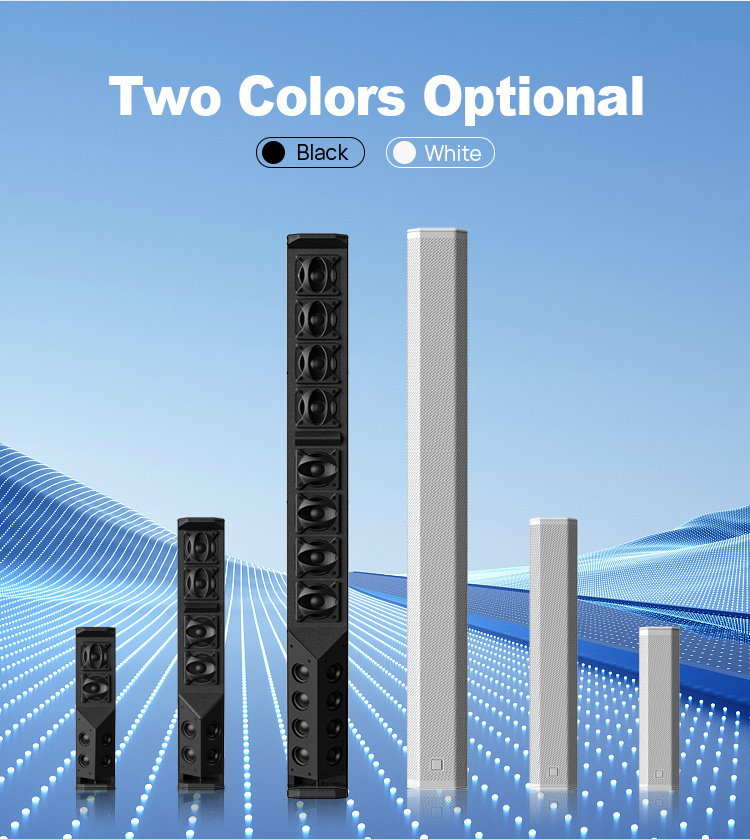

11. The wooden box has a slender shape and a pleasing structure. It is available in black and white and is highly integrated with the space environment.
2. Horizontal radiation angle gradient beam technology forms 2 directional beams with different horizontal radiation angles, which are respectively responsible for sound field coverage in the near field and far field. Each beam can adjust the sound pressure coverage intensity. According to the acoustic characteristics, the beam the narrower the beam, the farther the projection distance, and the wider the beam, the wider the radiation surface, but the radiation distance is not far, so the
three beam settings are: 160 degrees for the near field beam, and 100 degrees for the far field.
3. Near-field beam directivity variable technology can realize horizontal radiation angle adjustment through DSP, which can radiate targeted areas, while ineffective areas can reduce radiation, such as reducing wall reflections and improving the interference and reverberation time of useless sound waves in space. Long, direct sound is obtained directly, improving speech clarity.
4. Asymmetric vertical radiation technology. In order to ensure that the front and rear sound fields are relatively uniform,
traditional sound columns use physical methods to slant the speakers downward during installation. However, this affects the aesthetics of the speakers integrating into the space. To solve this problem, Using asymmetric vertical radiation technology processing, a gradual delay is implemented on the 2 beams of sound waves through digital DSP technology, and combined with a specially designed acoustic structure to process each beam of sound waves to produce an asymmetric vertical radiation pattern, forming a downward Radiation angle, and greatly reduce the upward emission of sound, attenuate the acoustic reflection of the ceiling, obtain the final required time domain and amplitude, and provide consistent radiation sound pressure level, while having a strong side-breaking effect. Strong direct sound, clean and clear sound.
5. AOIP network audio input technology supports mainstream network protocols.
6. Analog signal and digital signal input are optional, and mixed input is also possible.
7. Network management settings, the device can be managed and set in the network by directly connecting to the switch.
8. Powerful algorithm, intuitive interface, dedicated DSP management software, easy to set up, can perform beam control, 7-band equalization adjustment, high and low pass slope filtering, input level control, mute, preset settings, save and recall, system settings and other functions.
9. Built-in multi-channel high-stability digital power amplifier.
10. Dedicated full-range 3.5-inch high-quality speakers are used in the far field, and 2-inch full-range speakers are used in the near field. The sound wave coupling is scientific and the sound quality is clear and transparent.
11. The wooden box has a slender shape and a pleasing structure. It is available in black and white and is highly integrated with the space environment.
|
|
GB8284PB/W
|
GB4244PB/W
|
GB4224PB/W
|
||
|
Frequency
|
80-20KHz
|
90-20KHz
|
90-20KHz
|
||
|
Sensitivity
|
96dB
|
92dB
|
90dB
|
||
|
Impedance
|
8Ω
|
|
|
||
|
Horizontal radiation angle (gradient)
|
160° ,100°, 60°
|
160° ,100°, 60°
|
160°, 100°
|
||
|
Vertical coverage angle (asymmetric)
|
0°— -45°
|
|
|
||
|
Typical range distance
|
24M
|
18M
|
14M
|
||
|
Longest range distance
|
36M
|
28M
|
21M
|
||
|
Speaker unit
|
8 x 3,5" Full frequency speaker
|
4 x 3,5" Full frequency speaker
|
2 x 3,5" Full frequency speaker
|
||
|
|
8 x 2" Full frequency speaker
|
4 x 2" Full frequency speaker
|
4 x 2" Full frequency speaker
|
||
|
Power Rating
|
300W
|
180W
|
130W
|
||
|
Total power of digital amplifier
|
500W
|
300W
|
300W
|
||
|
DSP signal processing
|
High and low pass, volume adjustment mute, preset settings, equalization adjustment (7 segments) beam setting
|
|
|
||
|
Input signal interface
|
AOIP:RJ45 /XLR
|
|
|
||
|
Control Interface
|
UDP:RJ45
|
|
|
||
|
Dimension (W*H*D mm)
|
125*1198*178
|
125*710*178
|
125*500*178
|
||
|
Weight
|
14 kg
|
8 kg
|
5.6 kg
|
||
|
Color
|
Black/White
|
|
|
||
|
Accessories (standard)
|
Wall mount
|
|
|
||
