Quick Details
-
Screen Dimension:
-
Customized
-
Application:
-
Live Events, holiday, exhibition
-
Brightness:
-
2000cd/sqm
-
LED chip:
-
Cree + Nichia + Epistar + Opto + Silan
-
Warranty:
-
2 Years
-
Life span:
-
100000hours
-
Product name:
-

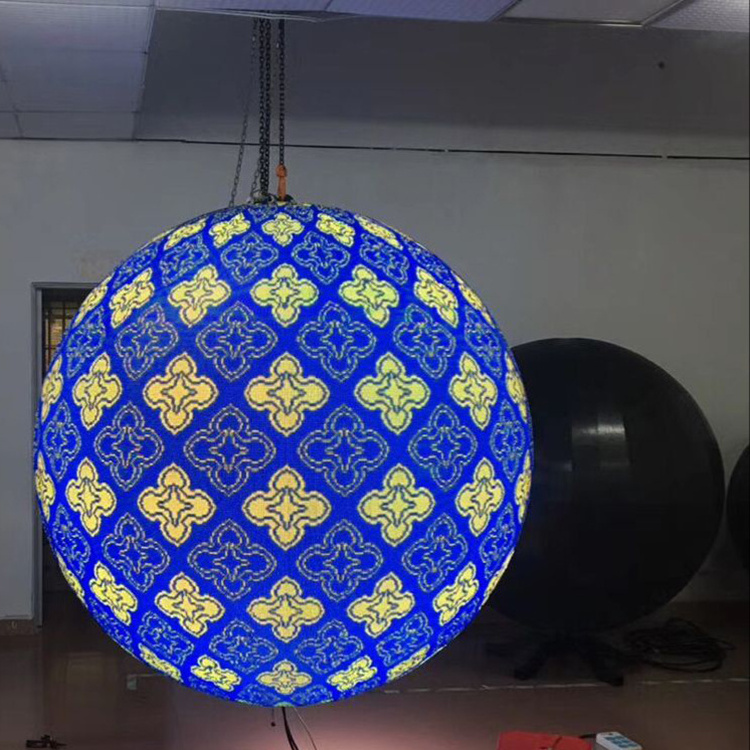

led sphere display
-
Color:
-
1R1G1B
Quick Details
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P6
-
Screen Dimension:
-
Customized
-
Application:
-
Live Events, holiday, exhibition
-
Brightness:
-
2000cd/sqm
-
LED chip:
-
Cree + Nichia + Epistar + Opto + Silan
-
Warranty:
-
2 Years
-
Life span:
-
100000hours
-
Product name:
-
led sphere display
-
Color:
-
1R1G1B
Product Description
| LED Light | |||||
| No. | Name | Brightness | View angle(H/V) | Wave | Temprature and currency |
| 1 | Red LED | 102~125mcd | 120º/120º | 620~625nm | 25℃,20mA |
| 2 | Green LED | 240~300mcd | 120º/120º | 520~525nm | 25℃,20mA |
| 3 | Blue LED | 60~80mcd | 120º/120º | 470~475nm | 25℃,20mA |
| Parameter | |||||
| 1 | LED light | SMD2121 | |||
| 2 | LED Color | 1R1G1B | |||
| 3 | White balance | 0.129178241 | |||
| 4 | Pixel balance | 6mm | |||
| 5 | Pixel | 27777/m2 | |||
| 7 | Diameter | 2.5m | |||
| 8 | Driving way | 1/16S | |||
| 13 | Weight | 28KG/m2 | |||
| 14 | Brightness | ≥ 1800 cd/m2 | |||
| 15 | View angel | 360° | |||
| 16 | View distance | 6-40m | |||
| 17 | Grey | ≥16bits/ 4096 level | |||
| 18 | Color | 1.67billion | |||
| 19 | Max.Power | 650 W/m2 | |||
| 20 | Avr.Consumption | 350W/m2 | |||
| 21 | Power supply | 110V / 220V,50-60Hz | |||
| 22 | Repetition Frequency | 60Hz | |||
| 23 | Fresh rate | ≥1200Hz | |||
| 24 | Brightness adjustable | 0-100% | |||
| 26 | System calibration digits | 16bits | |||
| 27 | Color Temp | 7000-8500K | |||
| 29 | Input signal | S-Video,RGB,RGBHV, YUV, YC,Composition | |||
| 30 | SYSTEM Support | Windows(98,2000,XP,Vin7) | |||
| 31 | Control system | Mooncell control. | |||
| 33 | Storage Temprature | (-40℃~+85℃) | |||
| 34 | Working temprature | ( -20℃~+50℃ ) | |||
| 35 | Working Wet | 10-90% RH | |||
| 36 | Life time | 100,000Hours | |||
| 37 | Gap joint | less than 2mm | |||
