Quick Details
-
Brand Name:
-
skytone
-
Model Number:
-
VRX932LA/VRX 932LAP
-
Dimension (L x W x H):
-
349mm x597mm x376mm
-
System type:
-
2-way single 12" passive/active line array
-
Size:
-
1x12"
-
Frequency Range (-10 dB)::
-
57 Hz - 20 kHz
-
Frequency Response (±3 dB)::
-
75 Hz - 20 kHz
-
Components::
-
LF: 2262HPL; HF: 3x 2407H (1.5 in voice coil)
-
Power Rating:
-
800W/1600W/3200W
-
Coverage pattern::
-
100° x 15° nominal (horizontal x vertical)
-
Maximum System SPL1::
-
136 dB
-
Dimensions (H x W x D)::
-
passive 343 mm x 597 mm x 376 mm
-
Weight::
-
passive 21 kg active 31 kg
Quick Details
-
Power:
-
800W,1600W,3200W
-
Frequency Range (Hz):
-
75Hz-20KHz(±3db)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
skytone
-
Model Number:
-
VRX932LA/VRX 932LAP
-
Dimension (L x W x H):
-
349mm x597mm x376mm
-
System type:
-
2-way single 12" passive/active line array
-
Size:
-
1x12"
-
Frequency Range (-10 dB)::
-
57 Hz - 20 kHz
-
Frequency Response (±3 dB)::
-
75 Hz - 20 kHz
-
Components::
-
LF: 2262HPL; HF: 3x 2407H (1.5 in voice coil)
-
Power Rating:
-
800W/1600W/3200W
-
Coverage pattern::
-
100° x 15° nominal (horizontal x vertical)
-
Maximum System SPL1::
-
136 dB
-
Dimensions (H x W x D)::
-
passive 343 mm x 597 mm x 376 mm
-
Weight::
-
passive 21 kg active 31 kg

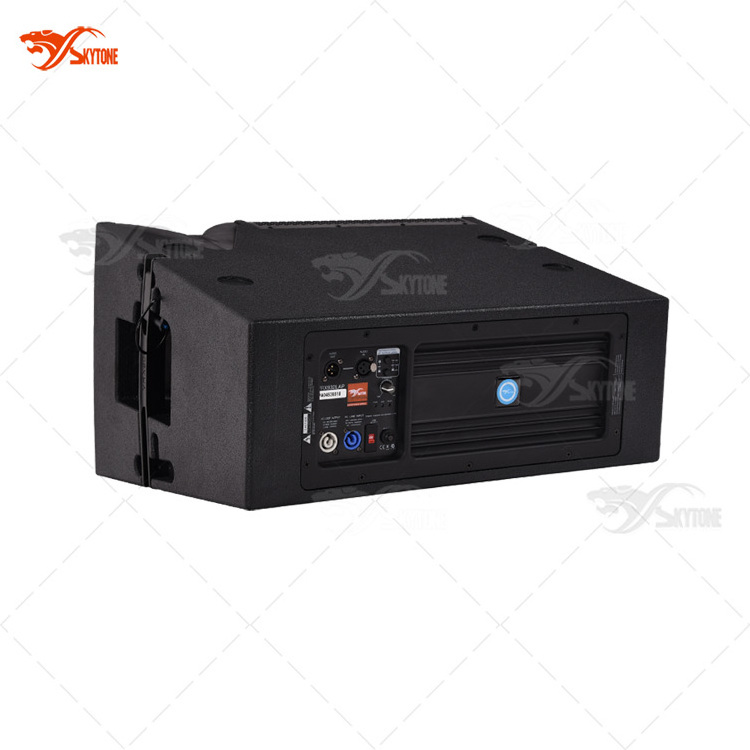

Skytone Hot-selling
professional line array speakers,
vrx high-end neodymium line array audios
Passive and active are both available
Passive:
VRX932LA top and VRX918S sub
Active:
VRX932LA P top and VRX918SP sub
| Specification of VRX Passive | ||
| Model | VRX932LA | VRX918S |
| Frequency Range(-10dB) | 57 Hz - 20 kHz | 31 Hz – 220 Hz |
| Frequency Response(±3dB) | 75 Hz - 20 kHz | 34 Hz – 220 Hz |
| Coverage Pattern | 100 x 15 nominal | / |
| Crossover Modes | Bi-amp / passive, externally switchable | / |
| Crossover Frequency | 1.2 kHz | |
|
Power Rating Passive
(Continuous/Program/Peak) |
800 W / 1600 W / 3200 W
Bi-amp LF: 800 W /1600 W /3200 W Bi-amp HF: 75 W / 150 W / 300 W |
800 W / 1600 W / 3200 W |
| System Maxinum SPL2 |
130 dB SPL peak (passive mode)
LF: 130 dB HF: 139 dB |
130 dB SPL peak |
|
95 dB SPL (passive mode)
LF: 95 dB (Bi-Amp mode) HF: 114 dB (Bi-Amp mode) |
95 dB SPL | |
| LF Driver |
1*2268HPL 457MM (18in) dual voice coil
Differential Driver woofer with nenodymium-magnet |
|
| HF Driver |
3*2408H 38mm(1.5in) voice coil
neodymium compression driver |
/ |
| Nominal Impedance |
Passive: 8ohms
Bi-amp LF: 8 ohms Bi-amp HF: 8 ohms |
8 ohms |
| Enclosure | 25/18mm birch plywood. | 18mm birch plywood |
| Finish | Polyurea Finish | Polyurea Finish |
| Grille |
Powder coated, black, 16-gauge
perforated steel with acoustically transparent foam |
Powder coated, black, 16-gauge perforated
steel with acoustically transparent foam |
| Input connector | 2 X NL4 Speakon | 2 X NL4 Speakon |
| Dimensions | 349 mm x 597 mm x 381 mm | 508 mm x 597 mm x 749 mm |
| Net Weight | 21KG | 44KG |
| Specification of VRX900 Active line array sound system | ||
| Model | VRX932 LAP | VRX918SP |
| Frequency Range(-10dB) | 55Hz-20kHz | 30Hz-220Hz |
| Frequency Response(±3dB) | 65Hz-20kHz | 35Hz-220Hz |
| Coverage Pattern | 100*15 nominal | / |
| Maximum Peak Output | 115B SPL at 1m | 120B SPL at 1m |
| LF Driver |
1*2262HPL 305MM (12in)
dual voice coil Differential Driver woofer with nenodymium-magnet |
1*2268HPL 457MM (18in)
dual voice coil Differential Driver woofer with nenodymium-magnet |
| HF Driver |
3*2408H 38mm(1.5in) voice coil
neodymium compression driver |
/ |
| Nominal Impedance | LF:8ohms HF:8ohms | LF:8ohms |
|
DPC-2 Intermal Amplification
Output (at nominal load) |
1600 Watts Peak,
800 Watts Continuous |
1600 Watts Peak,
800 Watts Continuous |
|
DPC-2 Output as
(Continuous IEC shaped pink noise into rated load impedance) |
LF: 800 Watts,HF: 120Watts | LF: 800 Watts |
| Audio Input Connector | XLR with loop through | XLR with loop through |
| User Controls |
Input Attenuator (0-16dB)
ACS (Array Configuration Selector) HF level adjustment (+3dB ,0dB,-3dB) |
Best option 90Hz Low Pass
90Hz High-Pass enable/disable for XLR loop thru |
| AC Power Operating Range |
90-132 VAC or 216-264 VAC,
50/60Hz |
90-132 VAC or 216-264 VAC,
50/60Hz |
| AC Line Voltage |
User selectable:
120V/240V (-15%,+10%) |
User selectable:
120V/240V (-15%,+10%) |
| AC Input Connecotr | PowerCon (NAC 3MPA) | PowerCon (NAC 3MPA) |
| AC Loop Through Connector | PowerCon (NAC 3MPB) | PowerCon (NAC 3MPB) |
| AC Current Requirements | 5A | 5A |
| Enclosure | 25/18mm birch plywood | 18mm birch plywood |
| Finish | Polyurea Finish | Polyurea Finish |
| Grille |
Powder coated, black, 16-gauge
perforated steel with acoustically transparent foam |
Powder coated, black, 16-gauge
perforated steel with acoustically transparent foam |
| Dimensions Net | 349mm*597mm*444mm | 508mm*597mm*749mm |
| Net Weight | 32KG | 51kg |
