Public Announcement System For School Classroom
Public Announcement System For School Classroom
Public Announcement System For School Classroom
Public Announcement System For School Classroom
Public Announcement System For School Classroom
Public Announcement System For School Classroom
Public Announcement System For School Classroom
Public Announcement System For School Classroom

Public Announcement System For School Classroom

FOB Reference Price: Get Latest Price
≥5 Pieces
US $100
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
MERLAUD
Model Number:
MIP-TERS8
Dimension (L x W x H):
NA
Product Name:
Public Announcement System For School Classroom
POE:
Supported
Color:
Silver
Power supply range:
12V~24V DC
Mounting type:
Wall mount
Material:
Aluminum panel
Touch screen:
Yes
Protocol:
TCP/UDP/HTTP/RTSP etc.
PC software:
No need
PA server:
No need

Quick Details

Power:
NA
Frequency Range (Hz):
NA
Place of Origin:
Jiangxi, China
Brand Name:
MERLAUD
Model Number:
MIP-TERS8
Dimension (L x W x H):
NA
Product Name:
Public Announcement System For School Classroom
POE:
Supported
Color:
Silver
Power supply range:
12V~24V DC
Mounting type:
Wall mount
Material:
Aluminum panel
Touch screen:
Yes
Protocol:
TCP/UDP/HTTP/RTSP etc.
PC software:
No need
PA server:
No need
IP PA System Introduction

System Advantage

1. Server-Less Design
2. Highly Integrated
Take IP terminal for example:
3. Very Low Latency
Less than 50ms, you can not feel the latency by ear.
4. LAN / WAN / Cloud
Not only work under LAN mode, but also can set and work under WAN/Cloud mode.
Therefore IP devices can be installed in different cities/regions/countries in more widely applications.
Models in IP PA family:
IP paging desk: MIP_DARS
IP terminal: MIP_TERS8(with touch screen)/MIP_TERM(compact size)/MIP_DEC(Economic version)
IP amplifier: MIP_AMP120(120W)/MIP_AMP240(240W)/MIP_AMP480(480W)
IP line surveillance terminal: MIP_ERS16_LS
IP fire alarm: MIP_EVAC16
IP speaker:
MIP_EA20(IP Box speaker)
MIP_CA10/MIP_CA20/MIP_CA40(IP Column speaker)
MIP_FP1520(IP Ceiling speaker)
...
Basic Diagram under LAN:
No need to download any PC software.
No need any license.
Configure by web browser!

Pls contact us to demo the APP control. thanks!

Basic diagram under cloud:

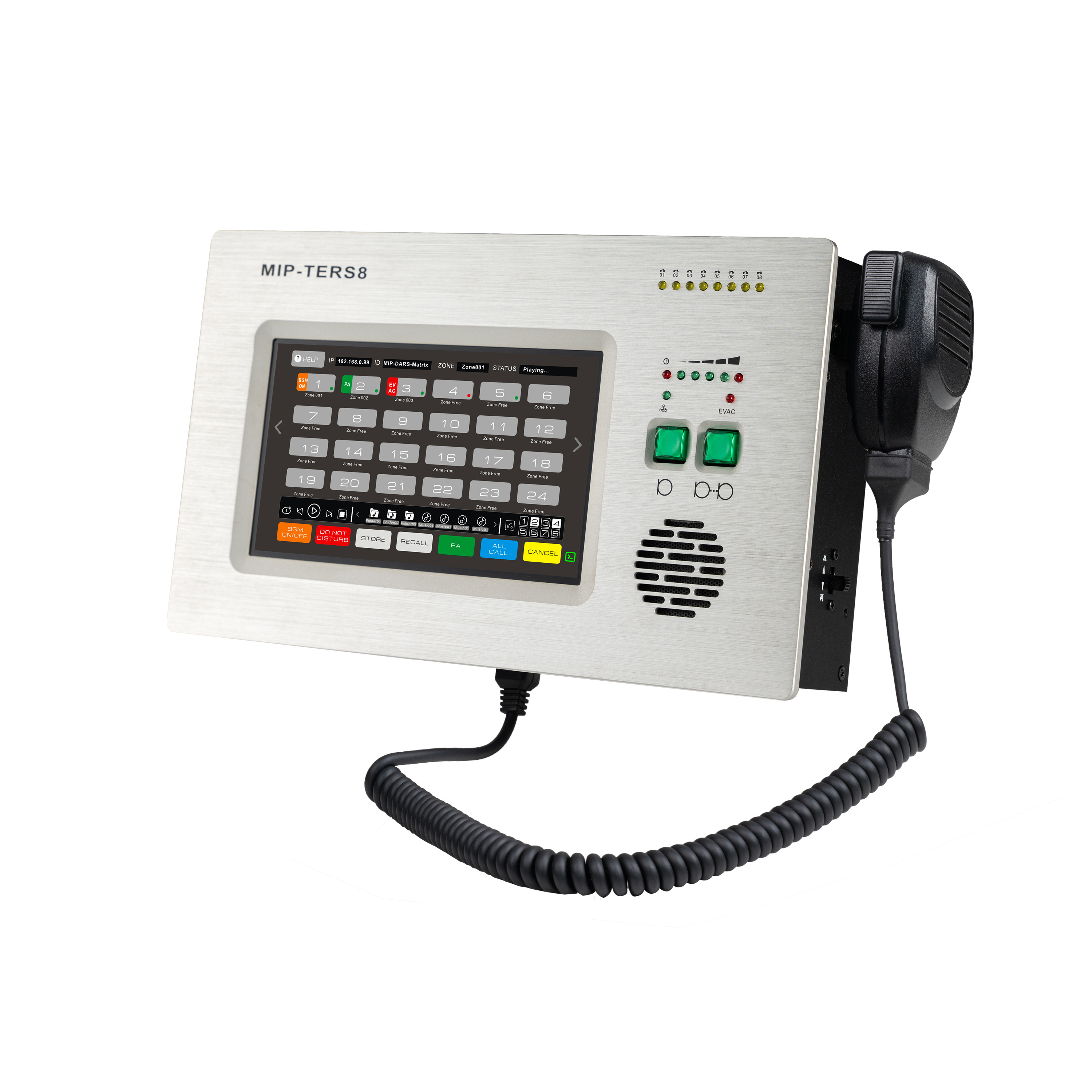

Product Description

Specifications

Industrial touch Panel 7’ LED control with powerful function.
High performance ARM processor, can realize the excellent network audio transmission performance.
B/S structure and can be managed via web browser.
Advanced network structure design, support standalone running without server.
Built-in 2 *20 W 8 ohms Amplifier and connect with 8 ohms speaker directly without extra Amplifier.
High reliability and stability with industrial level. Working Temperature between (-40 ~85 degree).
Build in HUB for Network in and Network out (TCP/IP).
POE function optional.
USB and SD card plug and play music function available.
12 V~24 V widely range power supply
XLR professional connector can connect with professional microphone.
4 Timing program schedule build in to do system control automatically
8 sub zone available(800 W extra/sub-zone available) and no limitation for IP Zone.
32 extra triggers for EVAC/Fire Alarm available to adding dry contacts extra boards
Announcement Recording automatically function available for tracing.
RS Link control over network available can be easily.
Communication delay < 50 ms on the top level of IP PA system.
Announcing and talk back very flexible.
Wall mounted in compact size.

Specification

Power Supply: DC12V, 2A (12V~24V Wide Range) Network Interface: 100M Base network, RJ45 port, 1.5KV Electric isolation, with transmission data indicating. MIC Input: 50mVpp, S/N Rate: 86dB Line Input:1500mVpp, Internal resistance 10KΩ, S/N Rate: 92dB Line Output: 1500mVpp, THD <0.3%, Internal resistance 500Ω, S/N Rate: 89dB Network Protocol: Support TCP, UDP, HTTP, RTSP.
Detailed Images
Application
Widely applied for School, Hospital, Hotel, Shopping mall/super market, Factory, Office, Coffee shop, Jail, Train/railway station etc.

Take school project for example:
Project Reference
Our Company
Packing & Delivery

Packing by standard pallet

Transport to all over the world by sea
