- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
EUROPEAN
-
Tile Accessory Type:
-
Tile Spacers
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGYI
-
Model Number:
-
DL-S00N
-
Type:
-
Tile leveling system
-
Material:
-
plastic
-
Color:
-
orange
-
Tile thickness:
-
for 1-17mm
-
MOQ:
-
one carton=40bags
-
The main exporting port:
-
Ningbo
Quick Details
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Other
-
Design Style:
-
EUROPEAN
-
Tile Accessory Type:
-
Tile Spacers
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGYI
-
Model Number:
-
DL-S00N
-
Type:
-
Tile leveling system
-
Material:
-
plastic
-
Color:
-
orange
-
Tile thickness:
-
for 1-17mm
-
MOQ:
-
one carton=40bags
-
The main exporting port:
-
Ningbo
Certifications
Product Description
|
|
Tile Space
|
Tile thickness
|
Tile thickness
|
|
|
|
1.0mm
|
S10: Linear "—"
|
Suits for 1mm-17mm tiles
|
|
|
|
1.5mm
|
S15: Linear "—"
|
|
|
|
|
|
S15+: Cross "+"
|
|
|
|
|
2.0mm
|
S20: Linear "—"
|
|
|
|
|
3.0mm
|
S30: Linear "—"
|
|
|
|
|
|
S30+: Cross "+"
|
|
|
|
Cap
|
S00N
|
New cap can match all the bases
|
|
Tool
|
ST
|
Protection Plate
|
Detailed Images

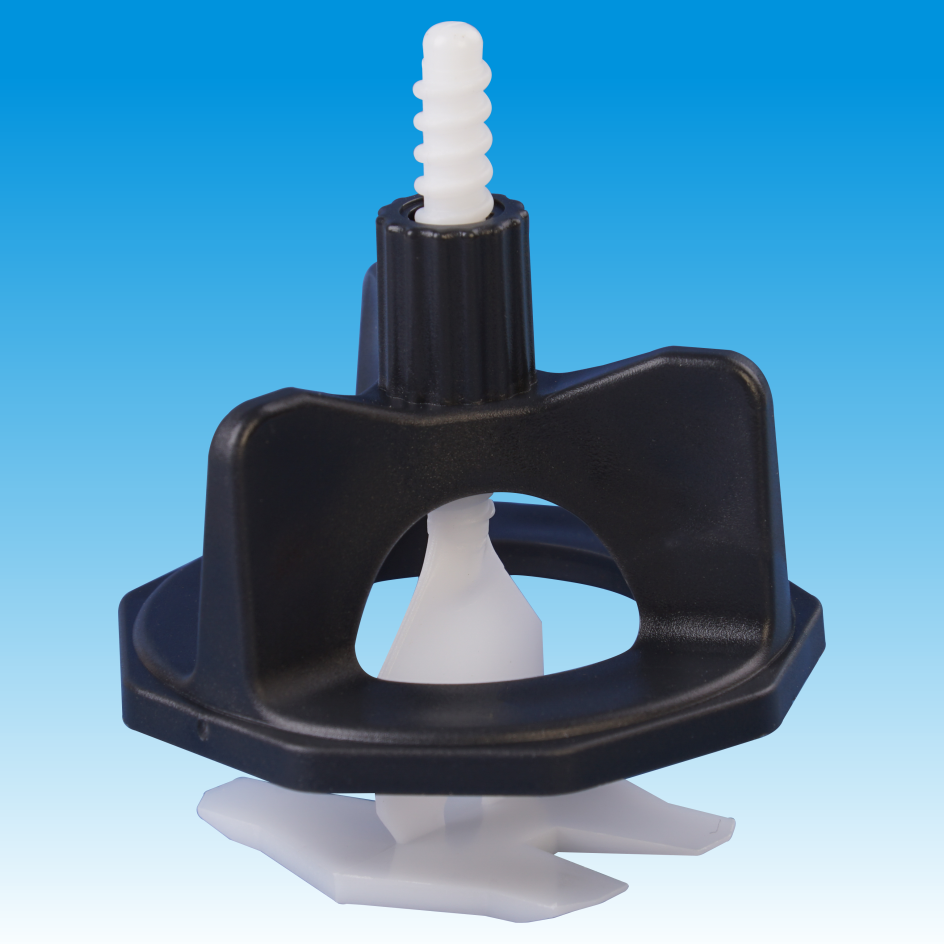

The Spin Doctor Tile leveling system allows the cap to spin down the spacer screw with minimal effort.
This allows installers to tighten the cap with only one hand, which is especially useful for installing large format tile.
The caps and baseplates are sold separately, the caps are reusable for multiple jobs.
Installation Instructions
How to Use the Spin Doctor Leveling System
Place your tile in the desired position
Position the threaded spacer posts under the exposed edges of the tile to best suit the tile size and layout. Posts can be used in multiple configurations, such as a linear spacer, a "T" spacer or a four-corner spacer
Make sure there is direct contact between the spacer and the tile without mortar in between
Place the rotating cap on the top of the threaded spacer post and spin the cap down to the tile surface
Turn cap as needed until all adjacent surfaces are flush
Remove spacer posts and caps with a rubbet mallet once tile adhesive has cured
Caps are easy to clean and re-use!
Packing & Delivery
Packaging Data:
Packaging may be adjusted upon request
100pcs in one bag
15bags/40bags in one carton
carton size: 56*39*38.5cm
BLISTER PACKING
BUCKET PACKING
PALLET PACKING
Delivery Time:
