ST-388S is 8-channel wide range power sequence controller, mainly for
audio sequence of complex power equipment. It is ideal for public
broadcasting, mini bar, small outdoor performances, the school lecture room,
multimedia conference hall, multi-function hall, training center, villas, hotels and
Home Furnishing etc.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Dimension (L x W x H):
-
480x185x48mm (non-standard 1U)
-
Panel color:
-
Black
-
Output relay contact current:
-
30A 277VAC
-
Channel number:
-
8 way socket relay in control
-
Power supply:
-
built-in switching power supply
-
Voltage:
-
AC90-260V 50-60HZ
-
Open type:
-
circular switch
-
Switch interval / timing(per channel):
-
1 second (default value)
-
Cascade function:
-
Yes
-
External control switch interface:
-
Yes
-
Gross weight:
-
3.8KG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Power and Grace
-
Model Number:
-
ST-338S
-
Dimension (L x W x H):
-
480x185x48mm (non-standard 1U)
-
Panel color:
-
Black
-
Output relay contact current:
-
30A 277VAC
-
Channel number:
-
8 way socket relay in control
-
Power supply:
-
built-in switching power supply
-
Voltage:
-
AC90-260V 50-60HZ
-
Open type:
-
circular switch
-
Switch interval / timing(per channel):
-
1 second (default value)
-
Cascade function:
-
Yes
-
External control switch interface:
-
Yes
-
Gross weight:
-
3.8KG
Product Description

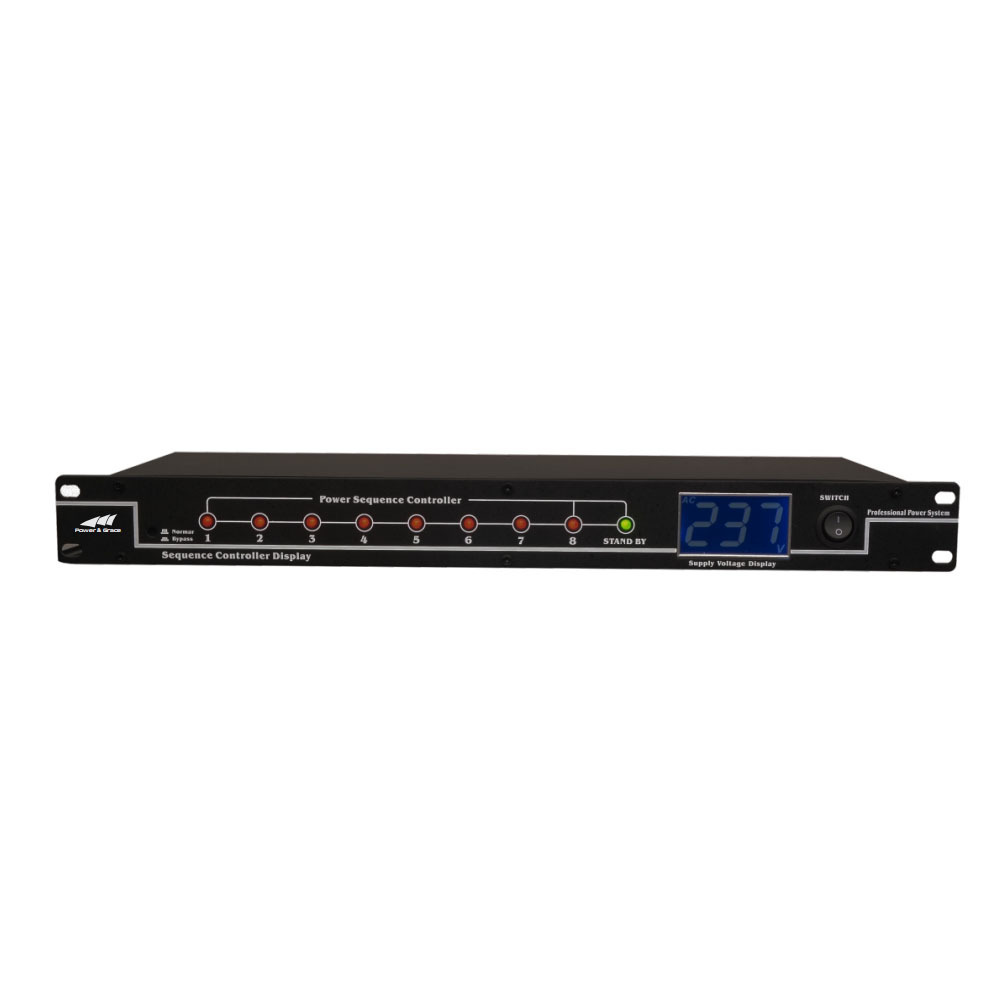

8 Channel power sequence controller
|
Panel color
|
Black
|
|
Power requirement (single-phase & 3-wire)
|
AC90-260V 50-60Hz two phase (null line, live line, ground wire)
|
|
Channel number
|

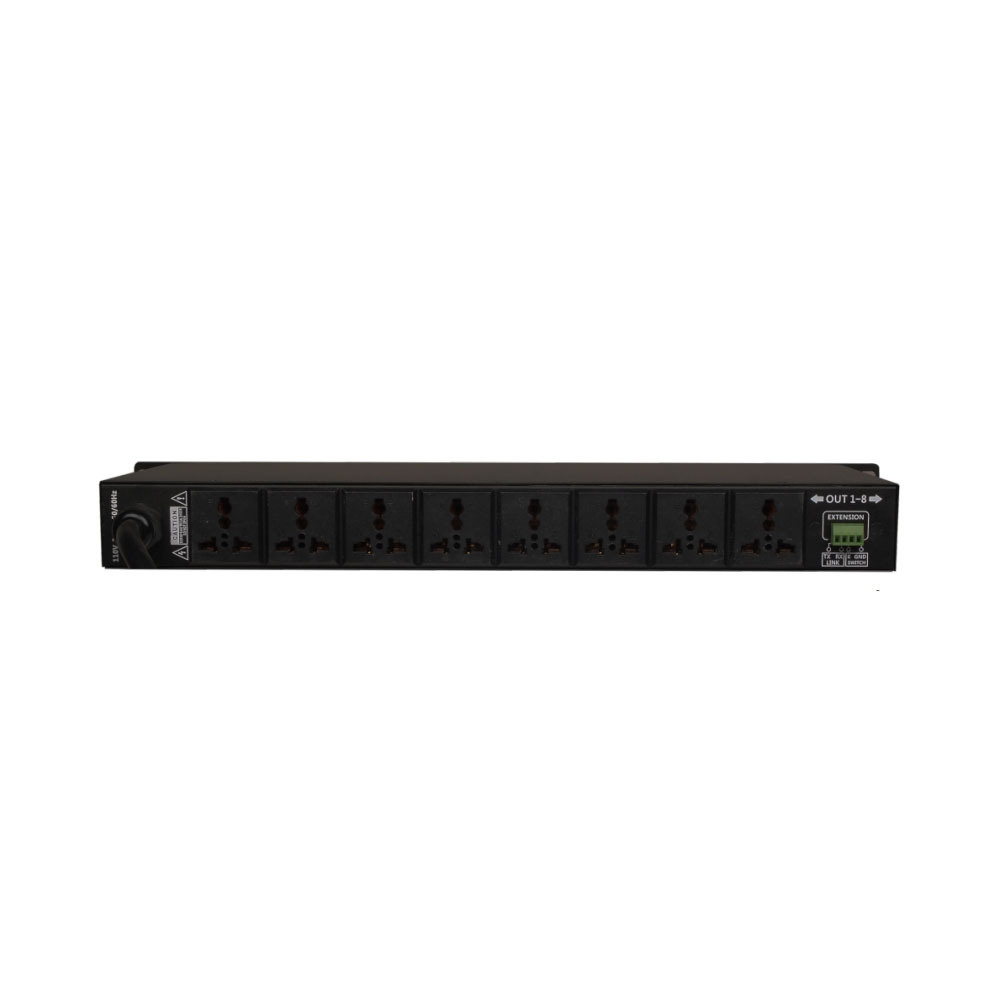

8 way socket relay in control
|
|
Circuit board
|
30A 277V AC
|
|
Output relay contact current
|
built-in switching power supply
|
|
Power supply
|
AC90-260V 50-60HZ
|
|
Voltage
|
circular switch
|
|
Open type
|
1 second (default value)
|
|
Switch interval / timing(per channel)
|
Yes
|
|
Cascade function
|
Yes
|
|
External control switch interface
|
liquid-crystal display voltmeter (blue or orange background with
|
|
Voltage display
|
white text in display)
|
|
Main cable
|
3*4 square, a total length of 1.2 meters (power plugs not included)
|
|
Power source filter (EMI power grid filter)
|
N/A
|
|
Product size(LxWxH)
|
480x185x48mm (non-standard 1U)
|
|
Single-packed package size
|
510x260x10mm (kraft box)
|
|
Five-packed package
|
19KG, 530x280x550mm
|
|
Gross weight
|
3.8KG
|
Features
-Sequencing for ON, Invert-sequencing for OFF.
-PASS button to turn on all channels simultaneously.
-Stack machine
-External control interface
-Voltage indicator
-PASS button to turn on all channels simultaneously.
-Stack machine
-External control interface
-Voltage indicator
