Quick Details
-
Weight:
-
4.5, 10kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM / OUKA, BAFANG / 8fang / 8 fun
-
Model Number:
-
F01
-
Rate power:
-
500w / 750w
-
Color:
-
Black
-
Application:
-
Customized frame
-
Efficiency:
-
90%
-
Controller:
-
25A Intelligent Brushless
-
Display:
-
DP C245 bluetooth display
-
Brake type:
-
Brake levels
-
Max speed:
-
45km/h
Quick Details
-
Size:
-
Above 60cm
-
Use:
-
BMX, Cruisers, Mountain Bikes, Road Bicycles
-
Type:
-
Integrated metal frame
-
Weight:
-
4.5, 10kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM / OUKA, BAFANG / 8fang / 8 fun
-
Model Number:
-
F01
-
Rate power:
-
500w / 750w
-
Color:
-
Black
-
Application:
-
Customized frame
-
Efficiency:
-
90%
-
Controller:
-
25A Intelligent Brushless
-
Display:
-
DP C245 bluetooth display
-
Brake type:
-
Brake levels
-
Max speed:
-
45km/h

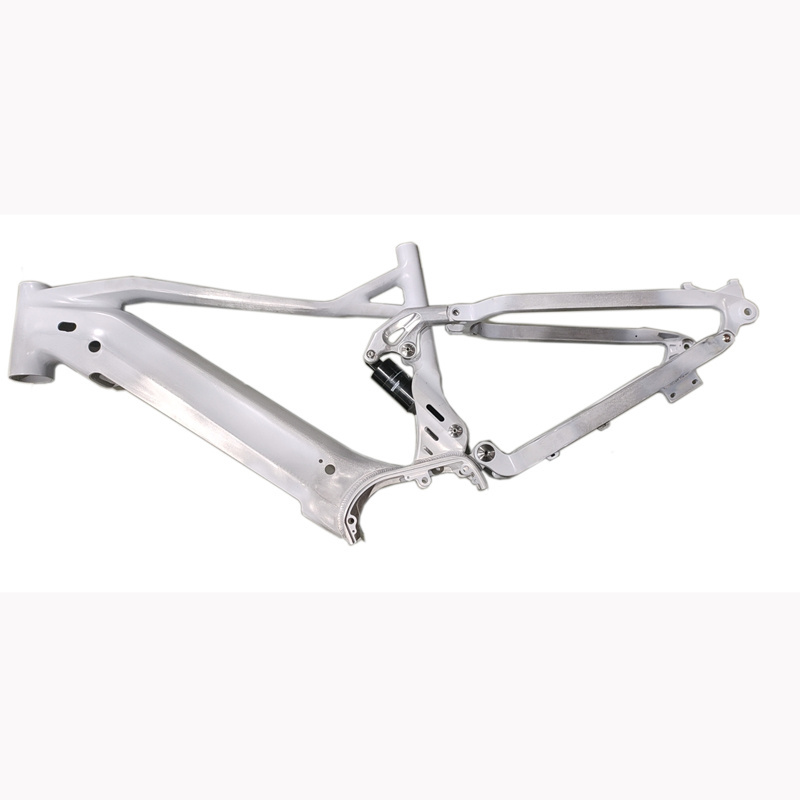

| Ouka ebikes 48V/52V 1000W G510 Full Suspension | |
| Electric Bike Frame | |
| Item name | |
| Motor | Bafang MM M620, 48V/52V 750W/1000W |
| Wheel | 27.5''/29'' |
| Head set size | 1-1/8" to 1-1/2",φ28.6x44-55x30 or 39.8 (bottom) mm H: 7.5+2.8=10.3+1 mm |
| F/R hub size | F:15x110mm/R:12x148 mm |
| Rear thru axle | 12x175mm |
| Rear Suspension eye to eye x travel | 190 × 45 mm ( 7.48 × 1.77 inch) |
| Seat post diameter | 30.9mm |
| N.W./ G.W. | 5kg/6kg |
| Package size | 1pc/ctn, 118x22x60cm |
| Rest components are optional. | |
| The logo is customizable. | |
| Size | ST | CS | HTA | STA | BD | HT | WB | S/SH | FO |
| M | 457 | 500 | 65 | 73 | 160 | 130 | 1315 | 627/745 | 568 |
| L | 495 | 500 | 65 | 73 | 160 | 130 | 1315 | 627/745 | 568 |
Customer feedbac
Package:
G510 Mid motor
The mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive.
DPC-18 Color Display
LCD display looks fashionable and have more functions.Set relevant parameters, like rim size,speed limited,password.... When you cycling, it also can tell you the speed,time,range,temperature...It can show the controller and battery information.
Chain wheel
Screws and nuts
First fix the hager onto your fram, then using the screws and nuts to fix the mid motor. Install the magnet to your rear wheel rim.
FP G510 Frafe welded aluminum alloy adaptor
