Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DUSKTEC
-
Model Number:
-
DT-DT12V & DT-DT24V
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
2.5A - 25A
-
Product Name:
-
Dimmable Power Supply
-
Type:
-
Constant Voltage
-
Warranty:
-
3 Years
-
Application:
-
LED Lighting
-
Protections:
-
Short-circuit, over-voltage, over-current and overload
-
Efficiency:
-
86%
-
Material:
-
Aluminum Housing
-
IP Rate:
-
IP20
-
Certification:
-
CE RoHS ETL SAA UKCA LVD EMC
-
Dimming Mode:
-
Triac,Dali,0/1-10V,PWM
Quick Details
-
Output Power:
-
60W, 100W, 150W, 200W, 250W, 300W
-
Input Voltage:
-
200-240V
-
Output Voltage:
-
12V / 24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DUSKTEC
-
Model Number:
-
DT-DT12V & DT-DT24V
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
2.5A - 25A
-
Product Name:
-
Dimmable Power Supply
-
Type:
-
Constant Voltage
-
Warranty:
-
3 Years
-
Application:
-
LED Lighting
-
Protections:
-
Short-circuit, over-voltage, over-current and overload
-
Efficiency:
-
86%
-
Material:
-
Aluminum Housing
-
IP Rate:
-
IP20
-
Certification:
-
CE RoHS ETL SAA UKCA LVD EMC
-
Dimming Mode:
-
Triac,Dali,0/1-10V,PWM
Safe
Fully certified. Protection against short-circuit, over-voltage, over-current and overload.

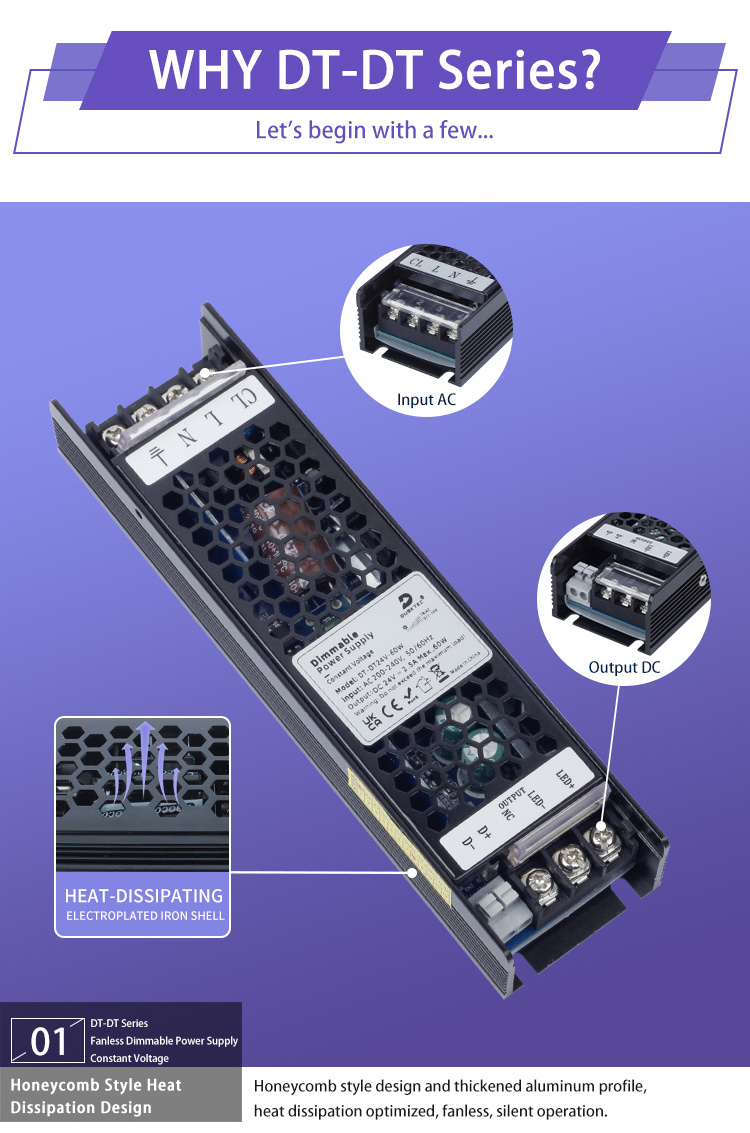

Compact
Scientific design, slim flat body, heat dissipation optimized, simple to install and easy to tuck away.

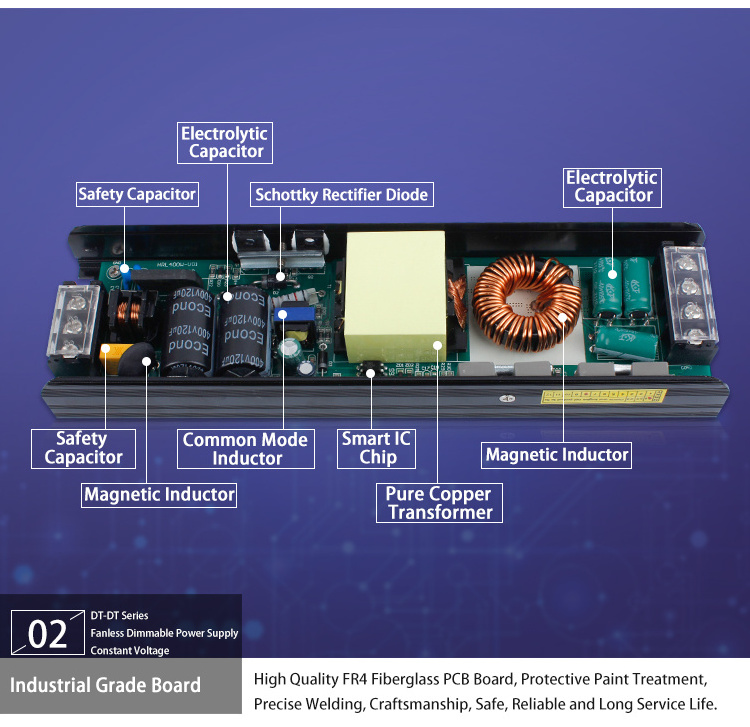

Durable
Well-constructed from quality components, smooth dimming, silent operation, zero radio interference, engineered to last.

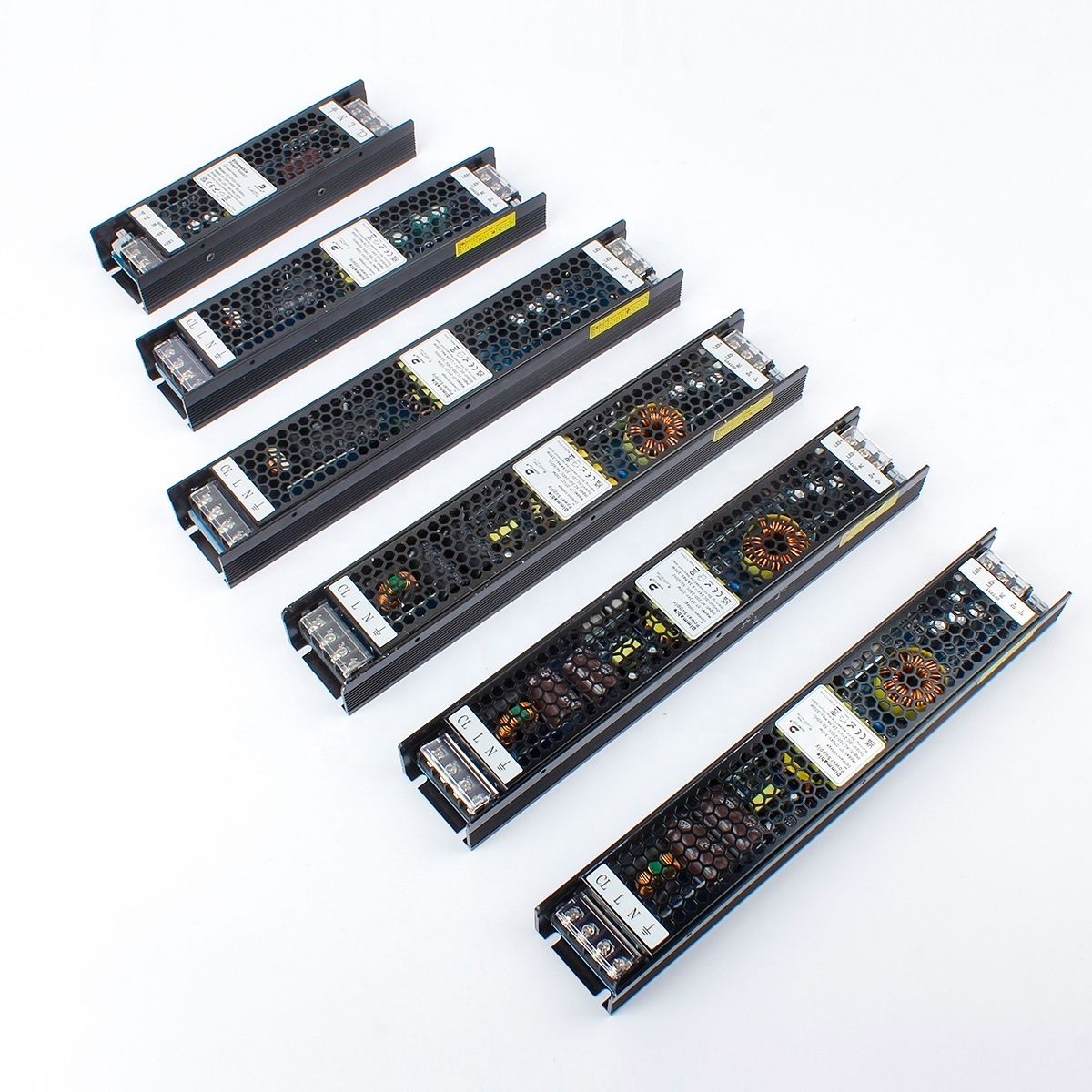

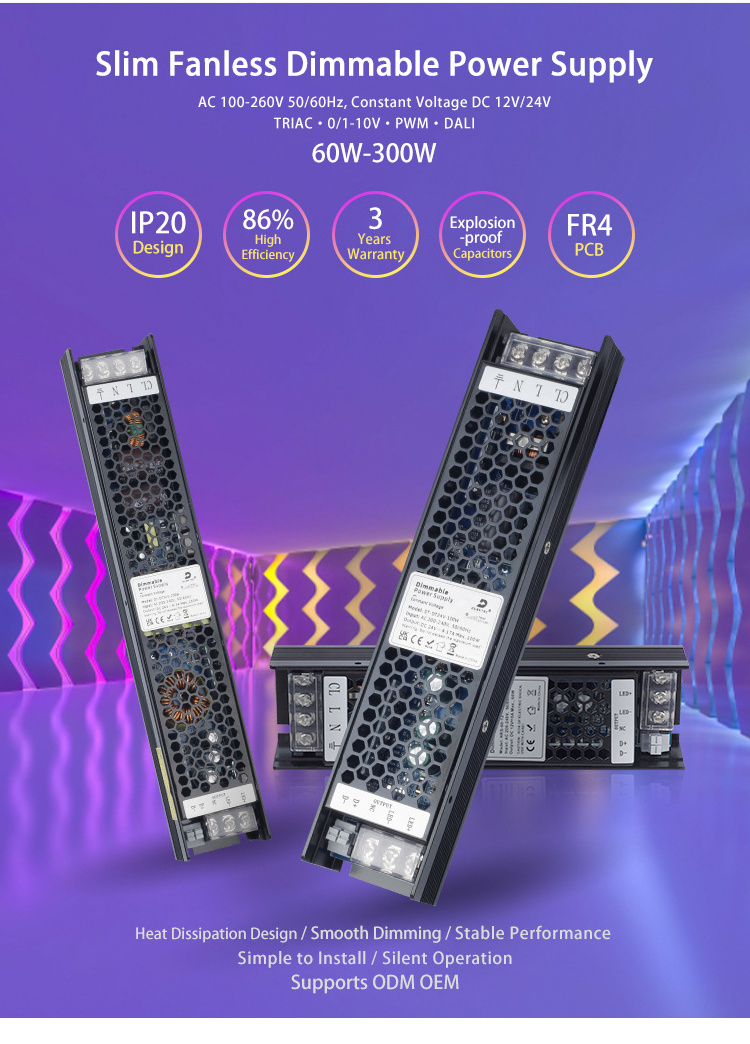

DT-DT Series Specifications
|
DT-DT 12V Dimmable Power Supply
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Specification
|
Power
|
Output Current
|
Item Dimension
|
Net Weight
|
Gross Weight
|
Units per Carton
|
|||||||
|
DT--DT12V-60W
|
Triac Dimmable 0/1~10V Dimmable
Input:
AC 200-240V, 50/60Hz
Output:
DC 12V
Constant Voltage
|
60W
|
5A
|
185*50*30mm
|
210g
|
220g
|
60pcs
|
|||||||
|
DT--DT12V-100W
|
|
100W
|
8.33A
|
230*50*30mm
|
280g
|
290g
|
60pcs
|
|||||||
|
DT--DT12V-150W
|
|
150W
|
12.5A
|
287*50*30mm
|
390g
|
410g
|
50pcs
|
|||||||
|
DT--DT12V-200W
|
|
200W
|
16.66A
|
287*50*30mm
|
450g
|
470g
|
50pcs
|
|||||||
|
DT--DT12V-250W
|
|
250W
|
20.83A
|
287*50*30mm
|
450g
|
480g
|
50pcs
|
|||||||
|
DT--DT12V-300W
|
|
300W
|
25A
|
287*50*30mm
|
480g
|
500g
|
50pcs
|
|||||||
|
DT-DT 24V Dimmable Power Supply
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Specification
|
Power
|
Output Current
|
Item Dimension
|
Net Weight
|
Gross Weight
|
Units per Carton
|
|||||||
|
DT--DT24V-60W
|
Triac Dimmable
0/1~10V Dimmable
Input:
AC 200-240V, 50/60Hz
Output:
DC 24V
Constant Voltage
|
60W
|
2.5A
|
185*50*30mm
|
210g
|
220g
|
60pcs
|
|||||||
|
DT--DT24V-100W
|
|
100W
|
4.16A
|
230*50*30mm
|
280g
|
290g
|
60pcs
|
|||||||
|
DT--DT24V-150W
|
|
150W
|
6.25A
|
287*50*30mm
|
390g
|
410g
|
50pcs
|
|||||||
|
DT--DT24V-200W
|
|
200W
|
8.33A
|
287*50*30mm
|
450g
|
470g
|
50pcs
|
|||||||
|
DT--DT24V-250W
|
|
250W
|
10.41A
|
287*50*30mm
|
450g
|
480g
|
50pcs
|
|||||||
|
DT--DT24V-300W
|
|
300W
|
12.5A
|
287*50*30mm
|
480g
|
500g
|
50pcs
|
|||||||
Product Range Gallery View
LED Driver
(DT-NS Series)
Mini compact, easy to tuck away, constant voltage, ranging from DC 12V/24V 6W to 75W.
Power Supply
(DT-NT Series)
Slim thin, easy to install, constant voltage, ranging from DC 12V/24V 60W to 400W.
Dimmable LED Driver
(DT-DS Series)
ranging from DC 12V/24V 12W to 80W.
Dimmable Power Supply
(DT-DT Series)
Frequently Asked Questions
FAQ
(frequently asked questions）
A: Contact us and we will handle it.
Q2. Can I add my own logo?
A: Sure, we offer flexible OEM & ODM solutions. You can have your logo on the product, packaging, user manual, you name it.
Q3. What is your MOQ?
A: None.
Q4. What is the production lead time?
A: We keep a ready to ship stock level on certain product lines, others usually take 2-4 weeks.
Q5. What is the delivery time?
A: We offer shipping via sea, road, rail and air. The shipment time depends on the choice of
transportation.
Q6. What is the warranty?
A: We offer a minimum two years warranty along with a comprehensive after sale service.
Q7. Are the products certified?
A: Yes, we are fully certified for the EU and UK markets. If you require any other forms of
certificates, do get in touch.
certificates, do get in touch.
Q8. Are you a manufacturer?
A: For our involvement in the production line process, we may as well be. Do feel free to pay us a visit at any time.
