Quick Details
-
Model Number:
-
VRX932LA
-
Output Power:
-
800W RMS
-
Shell Material:
-
plywood
-
System type:
-
passive/unpowered 2 way full frequency
-
Size:
-
1x12"
-
Frequency Range (-10 dB):
-
57 Hz - 20 kHz
-
Frequency Response (±3 dB):
-
75 Hz - 20 kHz
-
Coverage pattern:
-
100° x 15° nominal (horizontal x vertical)
-
Maximum System SPL1:
-
136 dB
-
Components:
-
LF: 2262HPL; HF: 3x 2407H (1.5 in voice coil)
-
Power Rating:
-
800W/1600W/3200W
-
Dimensions (H x W x D):
-
343 mm x 597 mm x 376 mm
-
Weight:
-
21 kg
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
skytone
-
Model Number:
-
VRX932LA
-
Output Power:
-
800W RMS
-
Shell Material:
-
plywood
-
System type:
-
passive/unpowered 2 way full frequency
-
Size:
-
1x12"
-
Frequency Range (-10 dB):
-
57 Hz - 20 kHz
-
Frequency Response (±3 dB):
-
75 Hz - 20 kHz
-
Coverage pattern:
-
100° x 15° nominal (horizontal x vertical)
-
Maximum System SPL1:
-
136 dB
-
Components:
-
LF: 2262HPL; HF: 3x 2407H (1.5 in voice coil)
-
Power Rating:
-
800W/1600W/3200W
-
Dimensions (H x W x D):
-
343 mm x 597 mm x 376 mm
-
Weight:
-
21 kg
1. Why choose us?
--------------------Skytone Audio------------------Skytone Audio-------------------Skytone Audio----------

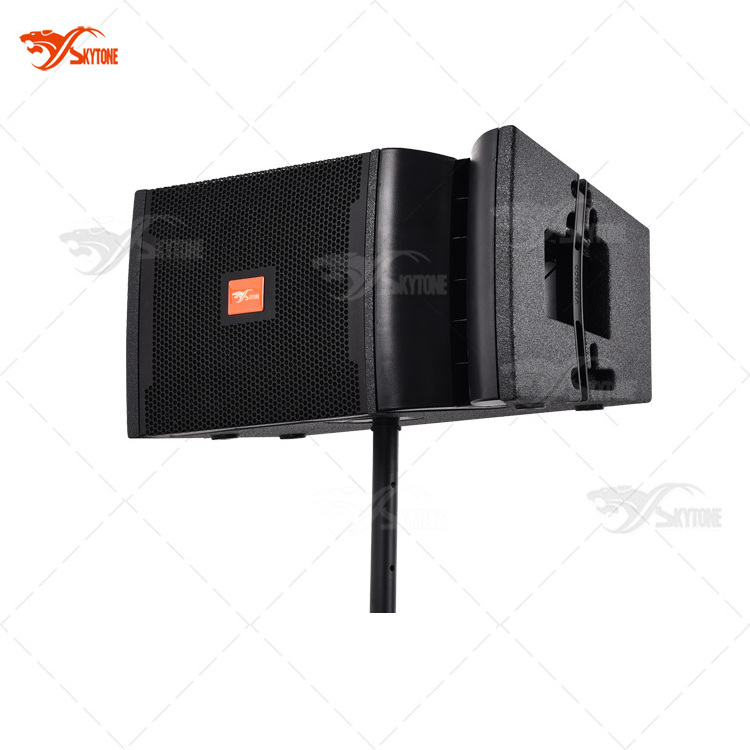

VRX932LA 12inch Empty Line Array Stage Speaker Cabinet
--------------------Skytone Audio------------------Skytone Audio-------------------Skytone Audio-------
| VRX932LA Line Array Speaker | |
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 57 Hz - 20 kHz |
| (-10 dB) | |
| Dimensions | 343 mm x 597 mm x 376 mm |
| (H x W x D) | (13.5 in x 23.5 in x 14.8 in) |
| Frequency Response | 75 Hz - 20 Hz |
| (+/-3db) | |
| Coverage Pattern | 100 x 15 nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz |
| System Maximum SPL | Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak |
| System Sensitivity (1w @ 1m | Passive: 95 dB SPL |
| Bi-amp LF: 95 dB SPL | |
| Bi-amp HF: 114 dB SPL | |
| LF Driver | 1 x2262H 305 mm (12 in) Differential Drive® woofer with |
| neodymium magnet, dual voice-coils, and dual magnetic gaps. | |
| Nominal Impedance | Passive: 8 ohm |
| Bi-amp LF: 8 ohm | |
| Bi-amp HF: 8 ohm | |
| Enclosure | 18 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit |
| Finish | Black polyurea finish |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam |
| Input Connectors | Speakon® NL-4 (x2) |
| Net Weight | 21 kg (46 lb) |
