Quick Details
-
Power:
-
2.2KW
-
Weight:
-
500 KG
-
Application:
-
Beverage
-
Name:
-
UHT Milk Sterilizer machine
-
Function:
-
Industrial Milk Production
-
Product name:
-
Milk Prodution Line
-
Raw material:
-
Fresh Liquid Milk
-
Usage:
-
Diary Product
-
Advantage:
-
Performance
-
Feature:
-
High Efficiency Low Cost
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ORANGEMECH
-
Voltage:
-
220/380v
-
Power:
-
2.2KW
-
Weight:
-
500 KG
-
Application:
-
Beverage
-
Name:
-
UHT Milk Sterilizer machine
-
Function:
-
Industrial Milk Production
-
Product name:
-
Milk Prodution Line
-
Raw material:
-
Fresh Liquid Milk
-
Usage:
-
Diary Product
-
Advantage:
-
Performance
-
Feature:
-
High Efficiency Low Cost
Product Description

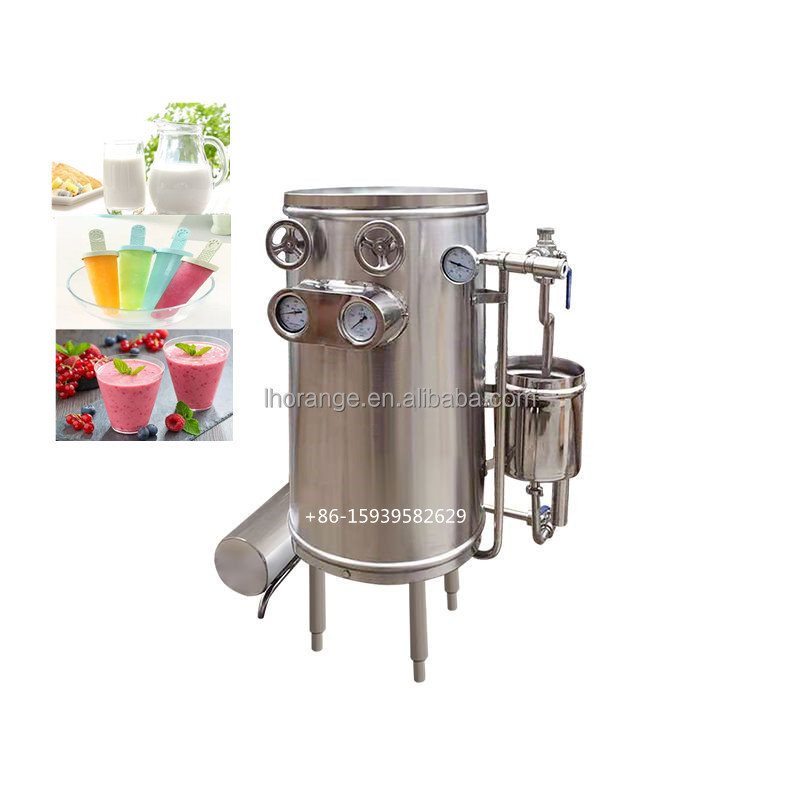

Factory Directly Small Scale Uht Milk Processing Plant / Uht Milk Machine
UHT vinegar ultra-high temperature instantaneous sterilization machine adopts a coil structure, which is energy-saving and simple to operate. Because the heating time of the material is very short and the nutrient loss is small, it is widely used in the instantaneous sterilization and instant sterilization of liquid materials such as fresh milk, fruit juice, beverages, soy milk, fresh milk, popsicles, ice cream slurry, soy sauce, soy milk, condensed milk, and fluids. Sterilization not only kills in the material, but also does not destroy the flavor and nutritional value, and can also be used for the sterilization of fluid materials. Due to the short heating time of the material, the nutrient loss is small. If used in series with a high-pressure homogenizer, it can also be used to sterilize high-viscosity materials.
1.Continuous production, short sterilization time, strong guarantee of production efficiency.
2. Due to the short heating time, the original flavor of the product is guaranteed and good products can be obtained.
3. Easy to clean, using CIP chemical cleaning agent, no need to disassemble parts.
4. The ultra-high temperature instantaneous sterilization machine is used in series with a centrifugal pump or a high-pressure homogenizer, which has a wide range of applications and is suitable for the sterilization of high-viscosity materials.
5. Because this equipment adopts a heat exchanger with cold and hot materials in the design, it has the economic effect of waste heat utilization, so the steam consumption is small.
Product Paramenters
|
Model
|
UHT-1
|
UHT-2
|
UHT-4
|
UHT-6
|
|
Capacity ( T/H )
|
0.5~1t/h
|
1.5~2t/h
|
3~4t/h
|
5~6t/h
|
|
Sterilization temperature
|
115~137°C
|
115~137°C
|
115~137°C
|
115~137°C
|
|
steam pressure
|
<0.78MPa
|
<0.78MPa
|
<0.78MPa
|
<0.78MPa
|
|
High-temperature
sterilization time |
4~6s
|
4~6s
|
4~6s
|
4~6s
|
|
Discharge temperature
|
<65°C
|
<65°C
|
<65°C
|
<65°C
|
|
Feed temperature
|
<16°C
|
<16°C
|
<16°C
|
<16°C
|
|
Steam consumption
|
<0.12kg/L
|
<0.15kg/L
|
<0.15kg/L
|
<0.20kg/L
|
|
Power
|
1.5kw
|
2.2kw
|
3kw
|
4kw
|
|
Dimensions(mm)
|
1200×920×1650
|
1300×1100×1700
|
1600×1200×1800
|
1940×1400×2000
|
