Quick Details
-
Model Number:
-
D1400
-
Dimension:
-
Amplifier
-
Storage:
-
Amplifier
-
SNR:
-
Amplifier
-
Output Power:
-
2300WX2
-
Format:
-
Amplifier
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
MICWL
-
Model Number:
-
D1400
-
Dimension:
-
Amplifier
-
Storage:
-
Amplifier
-
SNR:
-
Amplifier
-
Output Power:
-
2300WX2
-
Format:
-
Amplifier
Welcome To Our Company Alibaba Official Site - MiCWL Audio Inc.
|
Certification
|
3C/CE
|
|
Private Mold
|
Yes
|
|
Brand Name
|
MICWL
|
|
Model Number
|
D1400
|
|
Style
|
Digital Amplifier
|
|
Communication
|
Wired/Speaker
|
|
Use
|
Stage Performance / Karaoke / Church / Sing etc.
|
|
Place of Origin
|
China
|
|
Material
|
metal, Plastic
|
|
Function
|
Noise Cancelling, Light-weight
|
|
Power
|
2x1300W at 8Ohms RMS / 2x2300W at 4Ohm
|
MiCWL Audio Inc.
MiCWL Professional D Series
MiCWL Professional D Series
Digital Power Amplifier
19" 1U Rack Design
2x Channel
versions
4600 Watts @ 4 Ohms ( 2 x 2300W )
2800 Watts @ 8 Ohms ( 2x 1400W )
4600 Watts @ 4 Ohms ( 2 x 2300W )
2800 Watts @ 8 Ohms ( 2x 1400W )
MSRP: $2499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

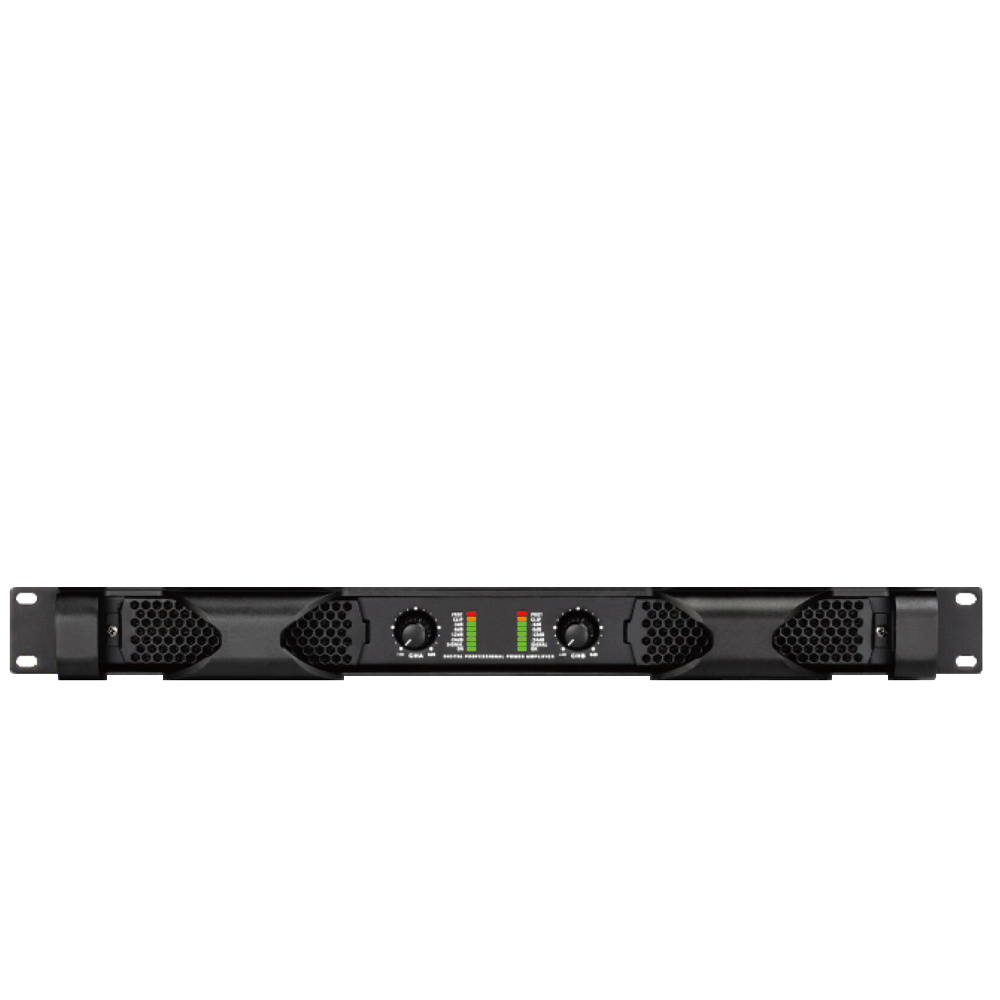

D Series D1400 Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of
professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the D1400 awesome performance,
flexibility and crystal clear sound quality.
◆ Ultra -large switching power amplifier
◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other
protection functions
◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact
◆ The rear panel is equipped with dual channels,
◆ Balance input interface
◆ Speakon output connector
◆ 483mm standard rack structure
◆ The power amplifier part of the switching power supply part has a separate cooling system
◆ The heat dissipation fan is controlled by advanced stepless transmission circuit
◆ 1U design, light body, easy to carry and install

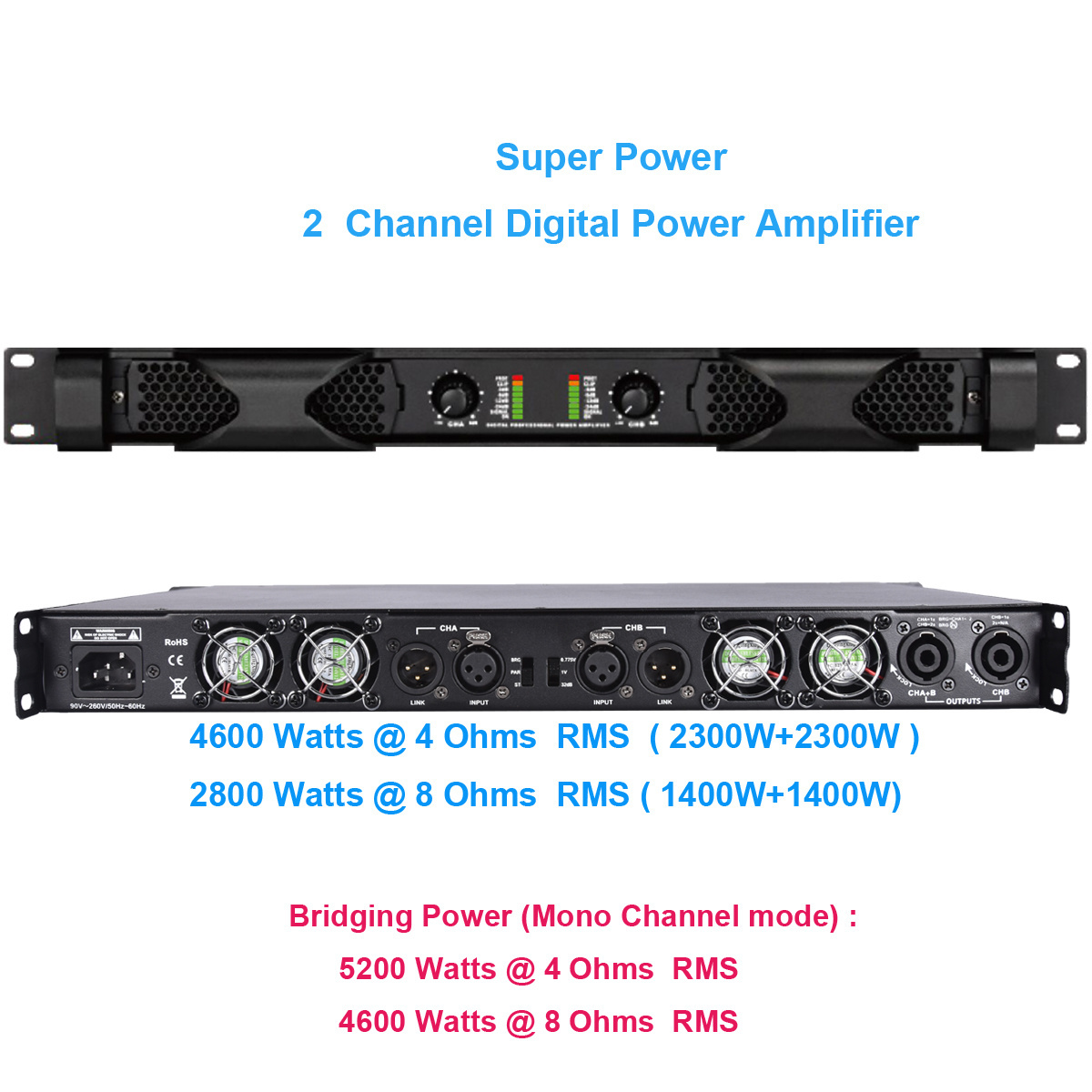

2x Channel versions 4600 Watts @ 4 Ohms ( 2 x 2300W )
2800 Watts @ 8 Ohms ( 2x 1400W )
Output/output (8Ω, 1kHz): 2x1400W
Output/OUTPUT (4Ω, 1kHz): 2x2300W
Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB
Total distortion/Total Distortion:
1%(8Ω, 350W/time)
Enter sensitivity/Input Sensitivity:+4DB * (1.23V)
Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)
Signal ratio/S/N Ratio: ≥80dB
Connecting terminal Connector:
Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input
connector; output (ch1-2): Speakon Output; Power: AC Power Supply.
Display light Indicator Lights:
Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display
light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X
1 (Red)
Power voltage/Power Supply Voltage:
AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)
1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W
The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃
The humidity range of the environment is working with Humidity Range:
Below 90% RH/Under 90% RH
How much Speaker can this amplifier drive:
1400W each Channel:
It Can Drive 1400W or less 1400W @ 8 Ohm Sound Speaker each Channel ( 2300W @ 4 Ohm each channel)
- If your speaker is no more than1400 watts, this amplifier is enough to drive.
( 2 Channel can Drive 2 Unit 1400W Speakers at 8Ohm. one channel suggest just derve 1pcs speaker)
Also have1400W/2400W Super power each Channel Digital Power Amplifier for Choice (please check our company store or contact us)
professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the D1400 awesome performance,
flexibility and crystal clear sound quality.
◆ Ultra -large switching power amplifier
◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other
protection functions
◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact
◆ The rear panel is equipped with dual channels,
◆ Balance input interface
◆ Speakon output connector
◆ 483mm standard rack structure
◆ The power amplifier part of the switching power supply part has a separate cooling system
◆ The heat dissipation fan is controlled by advanced stepless transmission circuit
◆ 1U design, light body, easy to carry and install
2x Channel versions 4600 Watts @ 4 Ohms ( 2 x 2300W )
2800 Watts @ 8 Ohms ( 2x 1400W )
Output/output (8Ω, 1kHz): 2x1400W
Output/OUTPUT (4Ω, 1kHz): 2x2300W
Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB
Total distortion/Total Distortion:
1%(8Ω, 350W/time)
Enter sensitivity/Input Sensitivity:+4DB * (1.23V)
Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)
Signal ratio/S/N Ratio: ≥80dB
Connecting terminal Connector:
Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input
connector; output (ch1-2): Speakon Output; Power: AC Power Supply.
Display light Indicator Lights:
Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display
light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X
1 (Red)
Power voltage/Power Supply Voltage:
AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)
1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W
The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃
The humidity range of the environment is working with Humidity Range:
Below 90% RH/Under 90% RH
How much Speaker can this amplifier drive:
1400W each Channel:
It Can Drive 1400W or less 1400W @ 8 Ohm Sound Speaker each Channel ( 2300W @ 4 Ohm each channel)
- If your speaker is no more than1400 watts, this amplifier is enough to drive.
( 2 Channel can Drive 2 Unit 1400W Speakers at 8Ohm. one channel suggest just derve 1pcs speaker)
Also have1400W/2400W Super power each Channel Digital Power Amplifier for Choice (please check our company store or contact us)
1 x Digital Amplifier
1 x Power Cable
1 x Power Cable
Warranty:
One Year Warranty Covered by MICWL Audio Inc.
One Year Warranty Covered by MICWL Audio Inc.
