Quick Details
-
Panel Size:
-
320*160mm/240*120mm
-
Place of Origin:
-
Shenzhen
-
Model Number:
-
p1.8/p2/p2.5/p3/P4
-
LED encapsulation:
-
SMD2121
-
Life span:
-
100000hours
-
Viewing angle:
-
160/160
-
Module size:
-
320*160mm/240*120mm
-
Screen size:
-
Customized
-
Brightness:
-
>500cd/sqm,adjustable
-
Warranty:
-
2 years
-
Usage:
-
Conference,traffic,shopping mall
-
Certificate:
-
CE, RoHS, CCC, BIS,FCC,PSE
-
Pixel Pitch:
-
1.875/2/2.5/3/4mm
Quick Details
-
Application:
-
Indoor flexible led display
-
Brand Name:
-
TEEHO
-
Color:
-
Full color
-
Panel Size:
-
320*160mm/240*120mm
-
Place of Origin:
-
Shenzhen
-
Model Number:
-
p1.8/p2/p2.5/p3/P4
-
LED encapsulation:
-
SMD2121
-
Life span:
-
100000hours
-
Viewing angle:
-
160/160
-
Module size:
-
320*160mm/240*120mm
-
Screen size:
-
Customized
-
Brightness:
-
>500cd/sqm,adjustable
-
Warranty:
-
2 years
-
Usage:
-
Conference,traffic,shopping mall
-
Certificate:
-
CE, RoHS, CCC, BIS,FCC,PSE
-
Pixel Pitch:
-
1.875/2/2.5/3/4mm

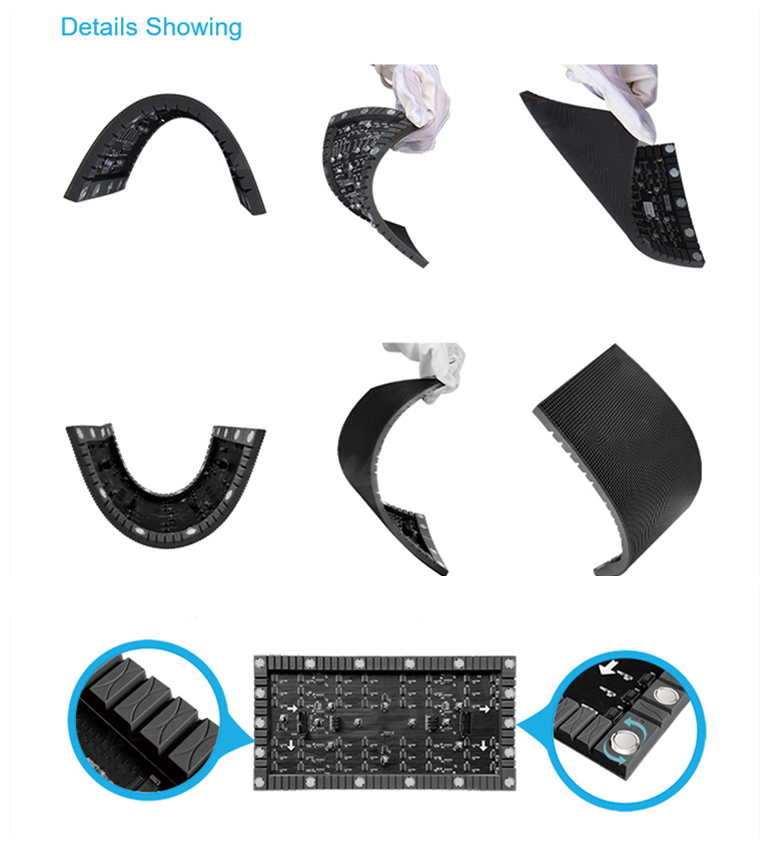

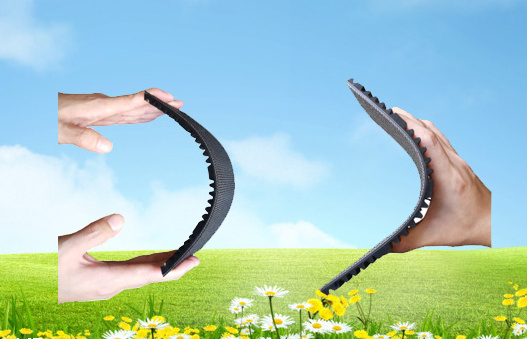

The p1.875 p2 p2.5 p3 p4 soft module flexible led display is suitable for curved or cylindrical display screens. It has a large bending range and can meet most shapes. It has realistic colors and is the best choice for special-shaped screens.
Specification
|
Model
|
Flexible led display
|
|
|
|
|
||||
|
Color
|
RGB
|
|
|
|
|
||||
|
Pixel pitch (mm)
|
1.875
|
2
|
2.5
|
3
|
4
|
||||
|
LED encapsulation
|
SMD1515
|
|
SMD2121
|
|
|
||||
|
Module resolution (W × H)
|
128*128
|
128*64
|
128*64
|
64*64
|
64*32
|
||||
|
Module size (mm)
|
240*240*15
|
256*128*15
|
320*160*15
|
192*192*15
|
256*256*15
|
||||
|
Module weight
|
580g
|
234g
|
400g
|
208g
|
230g
|
||||
|
Drive mode (constant current)
|
1/64S
|
1/32S
|
1/64S
|
1/32S
|
1/32S
|
||||
|
Pixel density (dots/pcs)
|
16384
|
8192
|
160000
|
4096
|
62500
|
||||
|
Brightness (cd/m², adjustable)
|
≥500
|
|
≥600
|
≥700
|
|
||||
|
Input Voltage
|
4.8V-5.2V
|
|
|
|
|
||||
|
Power
|
≤10W
|
≤13W
|
≤19W
|
≤15W
|
≤14W
|
||||
|
Module weight
|
308g
|
308g
|
408g
|
288g
|
280g
|
||||
|
Brightness (cd/m²)
|
≥500
|
≥500
|
≥700
|
≥800
|
≥700
|
||||
|
Temperature
|
-20 to +50 deg C°
|
|
|
|
|
||||
|
Humidity
|
20% to 90%
|
|
|
|
|
||||
|
Lifespan
|
≥100000 Hours
|
|
|
|
|
||||
|
MTBF
|
≥10000 Hours
|
|
|
|
|
||||
|
Malfunction Dot
|
less than 10 per million, in discrete state
|
|
|
|
|
||||
|
Color temperature (K)
|
3000-9300K adjustable
|
|
|
|
|
||||
|
Gray level (Bit)
|
12/14/16
|
|
|
|
|
||||
|
Viewing angle
|
140°/140°
|
|
|
|
|
||||
|
Brightness uniformity
|
≥97%
|
|
|
|
|
||||
|
Maximum contrast
|
≥3000:1
|
|
|
|
|
||||
|
Power supply requirements
|
AC85-264V (50-60Hz)
|
|
|
|
|
||||
|
Frame change frequency (Hz)
|
60
|
|
|
|
|
||||
|
Refresh rate (Hz)
|
≥ 1920
|
|
|
|
|
||||
Application Scene

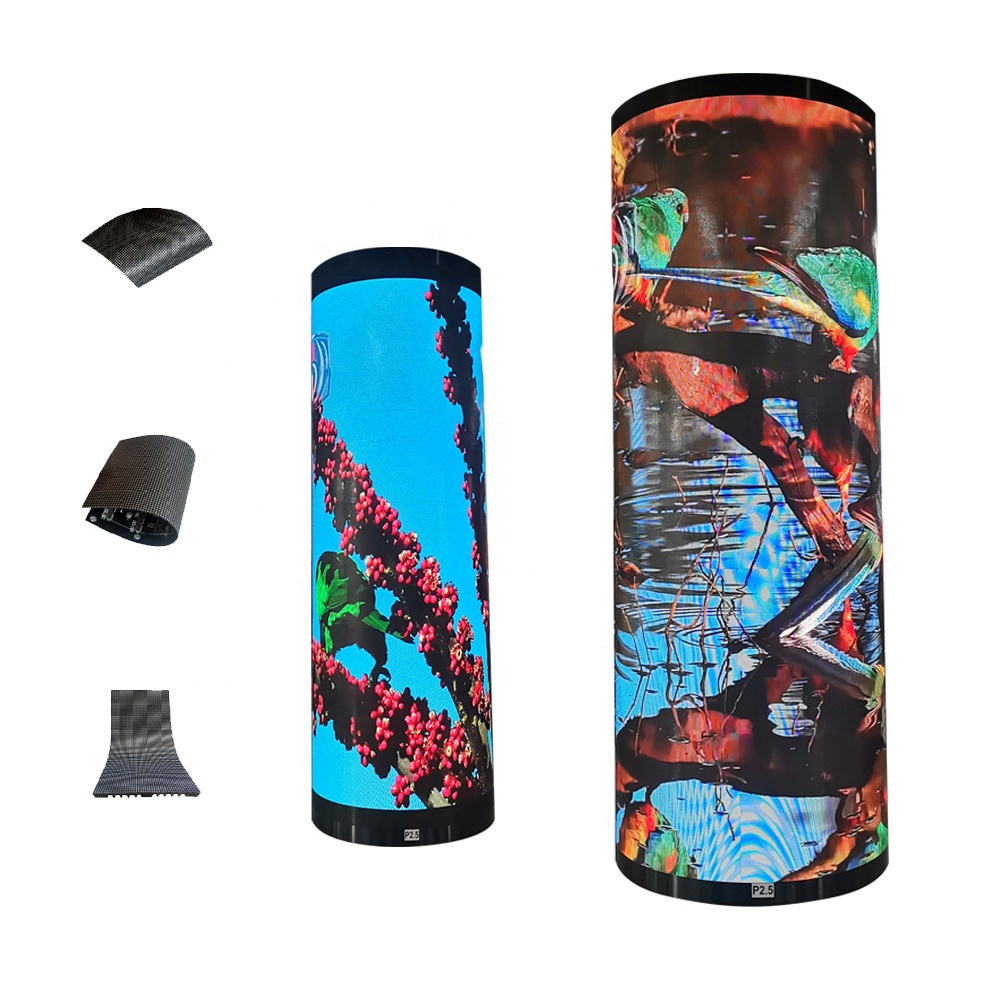

1. Inner/outer curved screen 2. Wave/ribbon special shape screen 3. Cylindrical screen
