ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system
ton technik  12 inch outdoor line array professional speaker system

ton technik 12 inch outdoor line array professional speaker system

FOB Reference Price: Get Latest Price
≥10 Pieces
US $9999
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
W-9B
Dimension:
93cm 36cm 59cm
Storage:
1200watt LF
SNR:
500watt MF
Output Power:
240watt HF
Type:
Passive Three Way Line Array Speaker System
Size:
12"X2 Lf, 8"X2mf, 3"X1hf
Power:
1900watt RMS Each Cabinet
Painting:
Waterproof Textured Painting
Cabinet:
Birch Plywood Cabinet
BRAND:
CVR
warranty:
1 year
power type:
passive
Certification:
CE

Quick Details

Warranty:
3years
Place of Origin:
Guangdong, China
Brand Name:
CVR
Model Number:
W-9B
Dimension:
93cm 36cm 59cm
Storage:
1200watt LF
SNR:
500watt MF
Output Power:
240watt HF
Type:
Passive Three Way Line Array Speaker System
Size:
12"X2 Lf, 8"X2mf, 3"X1hf
Power:
1900watt RMS Each Cabinet
Painting:
Waterproof Textured Painting
Cabinet:
Birch Plywood Cabinet
BRAND:
CVR
warranty:
1 year
power type:
passive
Certification:
CE

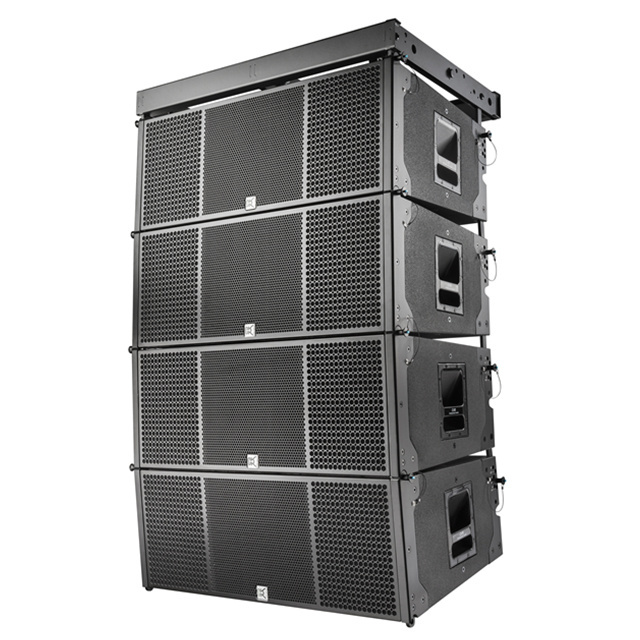

W-9B speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9B line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.
Model W-9B
Type Three-way line array system
Frequency Response 60Hz-18KHz±3dB
Power handling LF 1200W(RMS)4800W(PEAK)
MF 500W(RMS)2000W(PEAK)
HF 200W(RMS)800W(PEAK)
Sensitivity LF 106dB(1W@1M)
MF 107dB(1W@1M)
HF 109dB(1W@1M)
Max SPL LF 132dB(PEAK)
MF 133dB(PEAK)
HF 135dB(PEAK)
Drivers LF 2×12"(310mm) neodymium woofer 75mm(3in)coil
MF 2×8"(210mm) neodymium woofer 50mm(2in)coil
HF 2×3" neodymium compression driver with 75mm titanium diaphragm
Nominal impedance LF 8 ohm
MF 8 ohm
HF 16 ohm
Coverage 110°H×7°V
Connections LF 1(+)1(-) LF 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Connectors 2×Neutrik NL8
Finish Textured high-density polyurethane coating
Enclosure Material Birch Plywood
Crossover LF  60Hz-250Hz   MF 250Hz-1.5KHz   HF 1.5KHz-20KHz
Dimensions 932×360×584mm(W×H×D)
Packing Dimensions 995×425×645mm(W×H×D)0.27cbm
Net weight 64kg
Gross weight 68kg
