Quick Details
-
Print Dimension:
-
60*40cm
-
Place of Origin:
-
Sichuan, China
-
After-sales Service Provided:
-
Online support, Engineers available to service machinery overseas
-
Printing Ink:
-
uv ink (flexible ink is available)
-
Print head:
-
2* Ep heads
-
Printing Type:
-
Inkjet Printer
-
Color:
-
CMYK+lc+lm+W
-
Media Type:
-
All flatbed material
-
Printing size:
-
600*400mm
-
Software:
-
Rip Software
-
Print speed:
-
5-8 square meter per hour
-
Print resolution:
-
Max.1440*2880 dpi
-
Certification:
-
CE certificate
Quick Details
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Print Dimension:
-
60*40cm
-
Place of Origin:
-
Sichuan, China
-
After-sales Service Provided:
-
Online support, Engineers available to service machinery overseas
-
Printing Ink:
-
uv ink (flexible ink is available)
-
Print head:
-
2* Ep heads
-
Printing Type:
-
Inkjet Printer
-
Color:
-
CMYK+lc+lm+W
-
Media Type:
-
All flatbed material
-
Printing size:
-
600*400mm
-
Software:
-
Rip Software
-
Print speed:
-
5-8 square meter per hour
-
Print resolution:
-
Max.1440*2880 dpi
-
Certification:
-
CE certificate
4 color wedding card printing machine printer price plastic banner ribbon offset printing machine
|

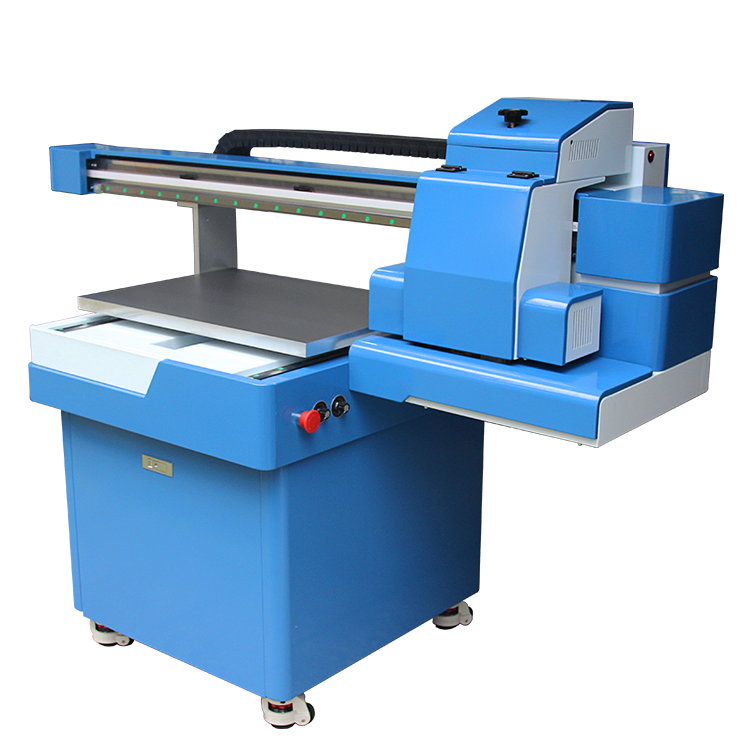

UV Flatbed printer 60*40cm
|
|
|
|
Print heads
|
Epson heads, ricoh heads optional
|
|
|
Max printable height size
|
60*40cm
|
|
|
Max printable height
|
15cm
|
|
|
Height adjustment
|
Automatic
|
|
|
Print mathod
|
Direct printing
|
|
|
Color
|
C.M.Y.K.LM.LC+W
|
|
|
Print resolution
|
2880*1440dpi
|
|
|
Print interface
|
USB2.0/Ethernet
|
|
|
Print Direction
|
Bi/Uni direction
|
|
|
Print speed
|
Average 5~8m2/h
|
|
|
Operational environment
|
Temperature 6°C -40 °C; Humidity 30%-70%
|
|
|
Power
|
50/60HZ, 220V(±10%) working 350W standby 30W
|
|
|
Ink volume
|
500ml
|
|
|
Ink type
|
UV environmentally ink
|
|
|
Operational software
|
RIP Maintop software
|
|
|
UV lamp
|
LED UV lamps
|
|
|
UV lamp life time
|
50000 hours
|
|
|
UV lamp system
|
6 Power degree adjustable system
|
|
|
Cooling type
|
Air cooling/ Water cooling (optional)
|
|
|
Ink drop size
|
Minimum 3.5pl ink,maximum28PI ink
|
|
|
Ink supply system
|
Continuous Ink Supply System(CISS)
|
|
|
Printer head protection
|
Intellective automatic detect
|
|
|
Printer head maintain
|
Head clean during/after printing, keep-wet system when idle.
|
|
|
Materials to print
|
Metal, plstic, glass, wood, ceramics, acrylic, leather,etc.
|
|
|
Software language
|
English
|
|
|
Net weight/ Gross weight
|
85KG/135KG
|
|
|
Printer size
|
750*1600*1160mm
|
|
|
Packing size
|
950*1800*1310mm
|
|
|
Package
|
Strong wooden package
|
|
|
Warranty
|
2 years
|
|
TXC6042E product highlights:
1,
Ideal for customizing pre-manufactured items, promotional goods, fine art and unique signs
2
, Precision and quality print on a wide variety of substrates including acrylic, wood, board, metal, glass, plastic, PVC, up to 150mm high and 30kg in weight
3
, Print colourful images on demand, to personalise or customise small or medium-sized items, from a single object up to a short-run production runs
4
, Produce 3D embossed and special effects using UV clear ink
5
, Achieve colourful graphics on dark and clear substrates utilising TXC UV white ink and Image directly onto materials that are normally more difficult to adhere ink to, such as acrylic and glass, using the TXC primer.
6
, The UV flatbed printer equipped with bi-directional printing function, it can increase printing speed and efficiency.
7
, An automatic media height system for detecting the thickness of the substrate
8
, A special positioning jig is available to align items easily on the printing table
9
, A Head refresh Feature removes any ink remaining on the printheads and cleans the printhead surface to maintain the health of the printer.
10
, Optional Rotary device available and optional vacuum table available
